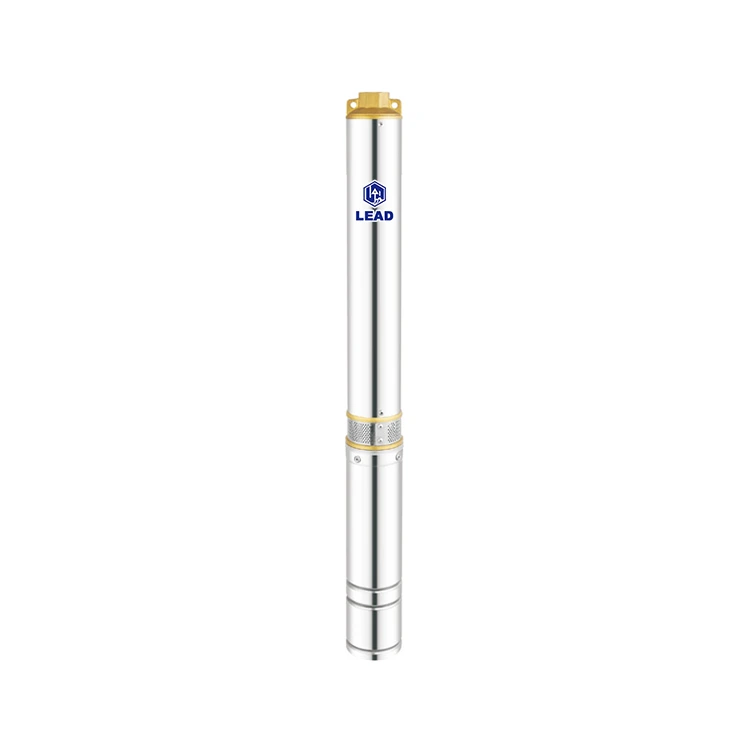

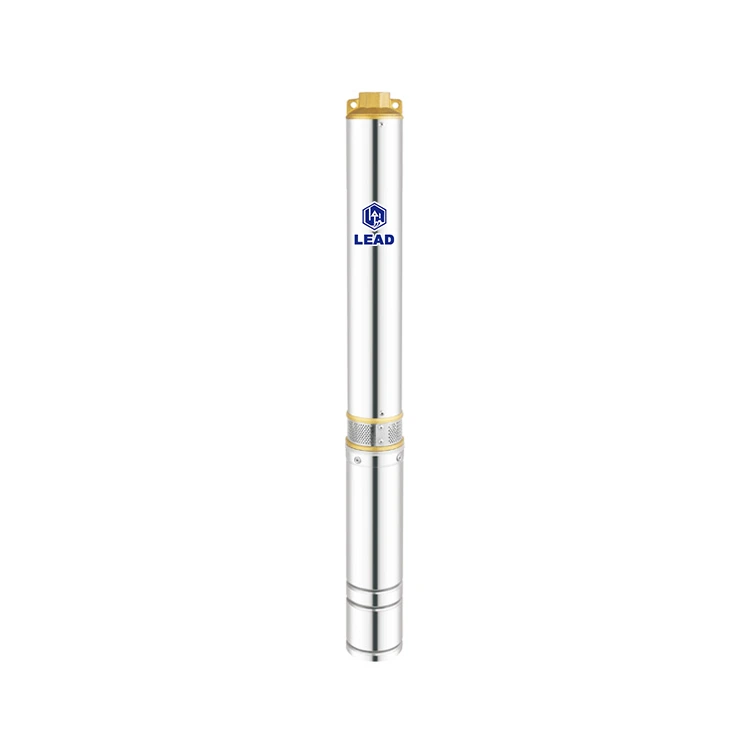

LEAD PUMP is one of professional leader China 3.5 Inch QJD Deep Well Pump manufacturer with high quality and reasonable price. Welcome to contact us.
• For water supply from wells or reservoirs
• For domestic use, for civil and industrial applications
• For garden use and irrigation
• Rewindable motor or Full obturated screen motor
• Single-phase: 220V-240V/50Hz
• Equip with start control box or digital auto-control box
• Pumps are designed by casing stressed
• NEMA dimension standards
• Curve tolerance according to ISO 9906
• Maximum fluid temperature up to +35℃.
• Maximum sand content: 0.25%.
• Maximum immersion: 30m.
• Minimum well diameter: 6".
|

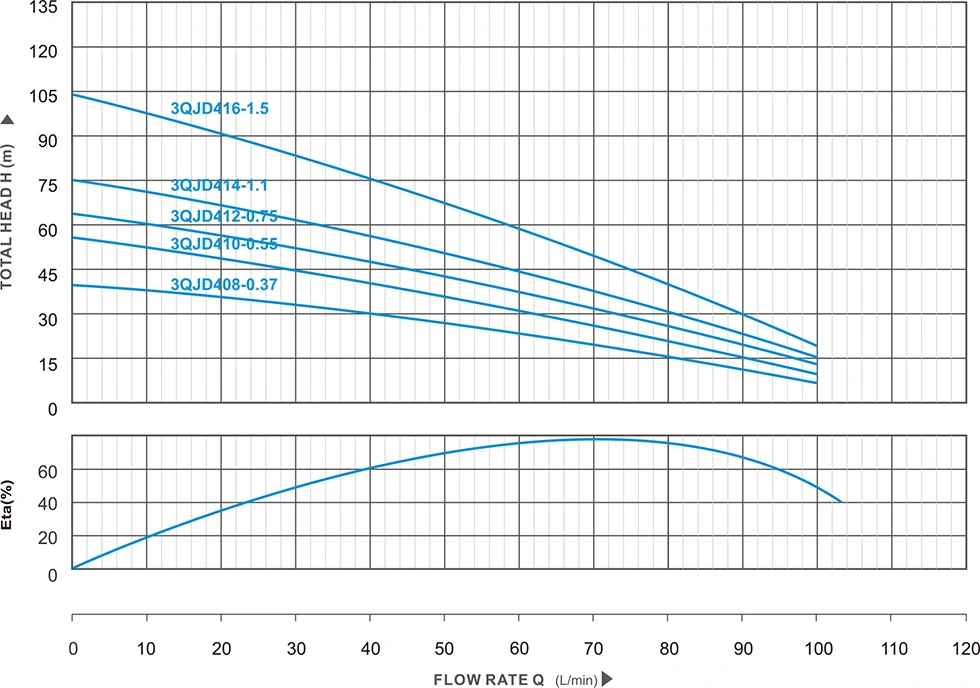

Model |
Inlet/Outlet |
Power |
(m3/h) |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3.0 |
3.6 |
4.2 |
4.8 |
5.4 |
6.0 |
|
|
Single phase |
Inch |
KW |
HP |
(L/min) |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
|
3.5QJD408-0.37 |
1 1/2" |
0.37 |
0.5 |
Head (m) |
40 |
39 |
38 |
37 |
36 |
34 |
31 |
27 |
22 |
16 |
8 |
|
3.5QJD410-0.55 |
1 1/2" |
0.55 |
0.75 |
51 |
50 |
49 |
48 |
46 |
44 |
40 |
34 |
28 |
20 |
11 |
|
|
3.5QJD412-0.75 |
1 1/2" |
0.75 |
1.0 |
62 |
61 |
60 |
58 |
56 |
54 |
49 |
42 |
34 |
25 |
13 |
|
|
3.5QJD414-1.1 |
1 1/2" |
1.1 |
1.5 |
74 |
72 |
71 |
69 |
66 |
64 |
58 |
50 |
40 |
29 |
15 |
|
|
3.5QJD416-1.5 |
1 1/2" |
1.5 |
2.0 |
102 |
100 |
98 |
95 |
92 |
88 |
80 |
69 |
59 |
40 |
21 |
|
