LEAD PUMP invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality Swimming Pool and Spa Pump. We are looking forward to working with you.
INSTALLATION AND USE:
The pump is designed for swimming pool water circulation systems.
It works in both clean water and water with small amounts of suspended particles.
Install in covered areas or locations protected from harsh weather.
OPERATIONAL CONDITIONS:
Maximum liquid temperature: +50°C
Maximum ambient temperature: +50°C
Maximum working pressure: 3 bar
Suitable for continuous operation.
OPTIONS AVAILABLE ON REQUEST:
Special mechanical seals.
50-60 Hz frequency adjustment.
ELECTRIC MOTOR:
2-pole induction motor operates at 2850 rpm (50 Hz).
Single-phase voltage: 220-240V
Three-phase voltage: 380-415V
Motor windings include thermal cut-out protection.
Insulation class: F
IP66 protection rating.

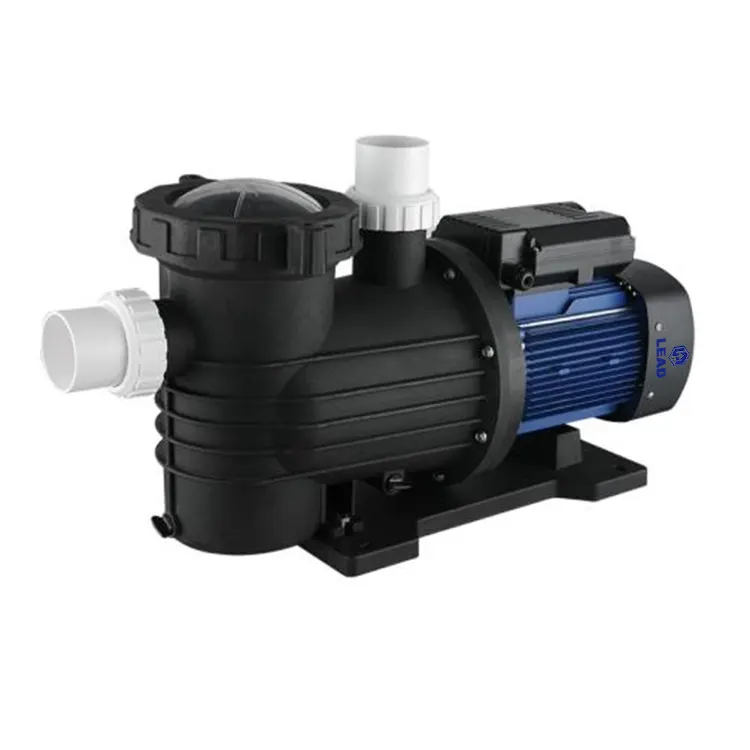

128-1.8-2.2(LDPP SWIMMING POOL PUMP)
|
Model |
Caliber |
Power |
Max Head |
Max Flow |
Max Diving depth |
|
|
Single phase |
Inch |
KW |
HP |
m |
M³/h |
m |
|
LDPP1800 |
G2.5"*G2.5" |
1.8 |
2.5 |
16 |
30 |
2 |
|
LDPP2200 |
G2.5"*G2.5" |
2.2 |
3 |
20 |
35 |
2 |
