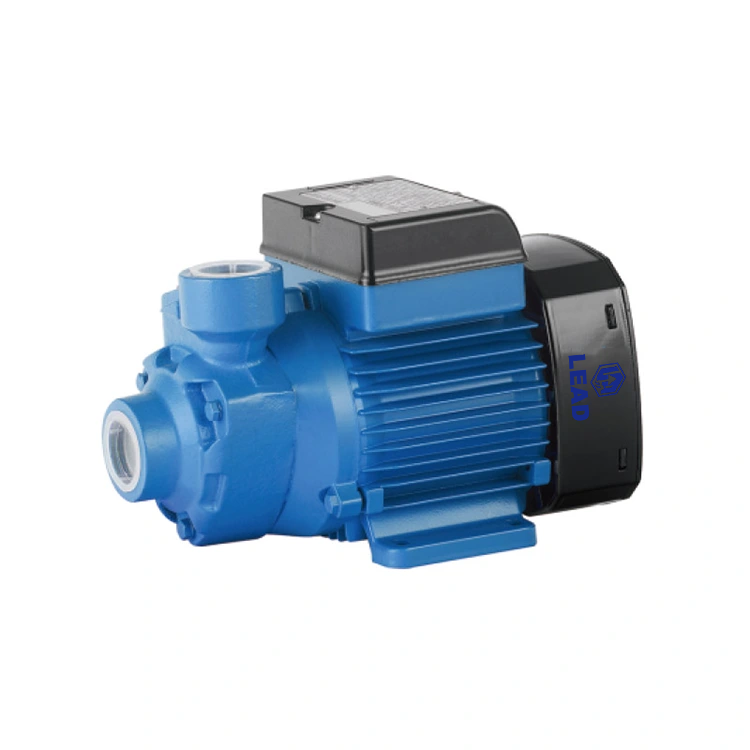

LEAD PUMP invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality New Designed Peripheral Pump. We are looking forward to working with you.
• Suction lift up to 8m
• Clean water, non-corrosion liquid
• Fluid temperature up to 40 °C
• Maximum ambient temperature 40 °C
• Brass impeller
• 100% Copper winding
• Single/Three-phase, 50/60Hz (as customized)
• Stainless steel mechanical seal (graphite to ceramic)
• Protection IP44
• C&U bearing or local bearing
• Thermal overload protector
• Anti-rust shaft (Hi-Cr plated or welded stainless steel)
|
Model |
Inlet/Outlet |
Power |
Q(m³/h) |
0 |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
3.0 |
|
|
Single phase |
Inch |
kW |
HP |
(L/min) |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
50 |
|
MKP 60 |
1"x1" |
0.37 |
0.5 |
H(m) |
40 |
38 |
33.5 |
29 |
24 |
19.5 |
15 |
10 |
5 |
- |
