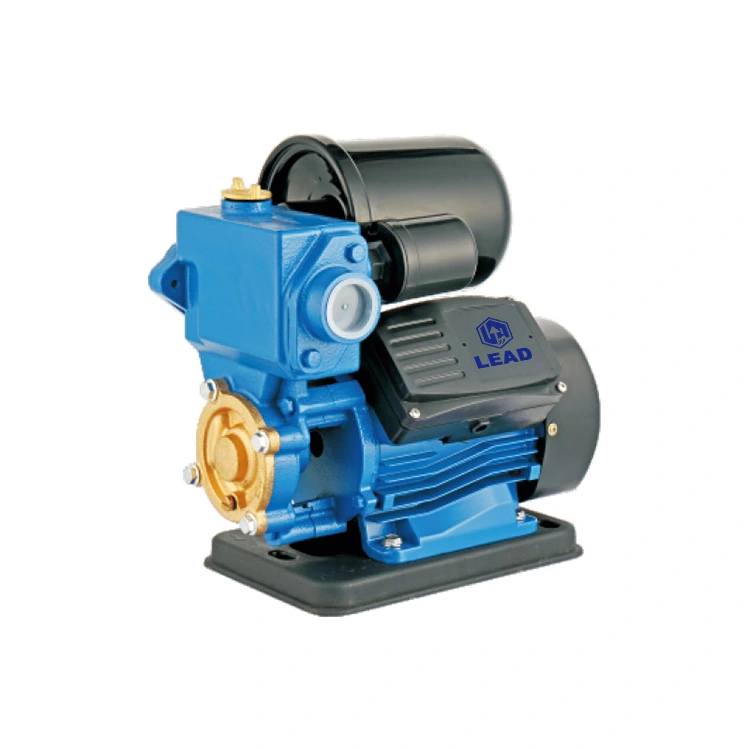

PSX-B Water Boosting Self-Priming Pump

PUMPS INSTALLATION AND APPLICATIONS

China PSX-B Water Boosting Self-Priming Pump Factory Directly Supply. LEAD PUMP is PSX-B Water Boosting Self-Priming Pump manufacturer and supplier in China.

These pumps are suitable for clean water without abrasive particles and non-chemical-corrosive fluids. Reliable, compact, economical and simple to use, they are particulary suitable for domestic and industrial applications such as water supply for recirculation in air conditioners and refrigerators, industrial water uses in general, and the automatic distribution of water from surge tanks, watering gardens, lifting water from tanks or wells down to 9m depth. Equipped with a check valve on the suction side easy no foot valve is required, enclosed environment or sheltered from inclement weather.

PERFORMANCE

• High heads with respect to power requirements
• Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand
• High tolerance of the presence of entrained air in the liquid being pumped
• Suction capacity up to 9 meters

PUMP

• Cast iron pump body and support by unique anti-rust treatment
• Rust-free stainless steel inserts prevent impeller's block when starting after the pump is unused for a long time
• Stainless steel mechanical seal (graphite to ceramic)
• Brass impeller with radial peripheral blades
• Stainless steel shaft
• Self-priming

MOTOR

• C&U bearing
• Copperwinding motor
• Built-in thermal protector for single phase motor
• Insulation class: F
• Protection class: IPX4

OPERATING LIMITS

• Suction lift up to 9m
• Fluid temperature up to 60 ℃
• Maximum ambient temperature 40 ℃

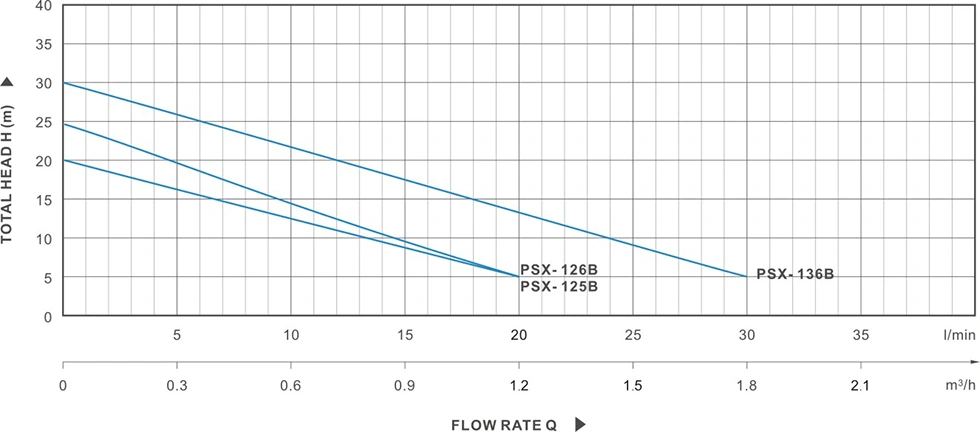

PERFORMANCE DATA AT n=2900 rpm/min

Performance parameter
