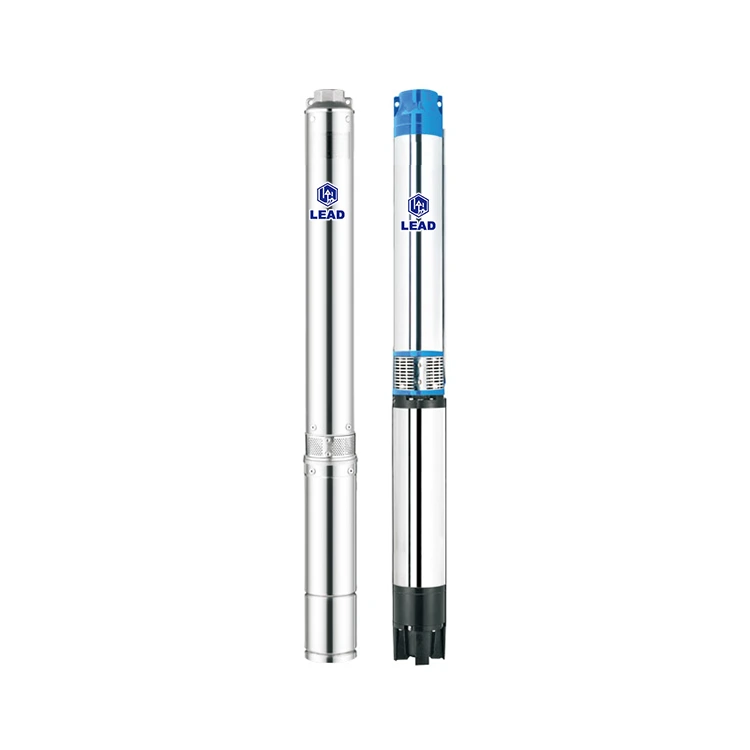

As one of professional manufacturer, LEAD PUMP would like to provide you high quality 5.5 30HP 3PH Oil Filled Deep Well Pump Rated Q. And we will offer you the best after-sale service and timely delivery.
• For water supply from wells or reservoirs
• For domestic use, for civil and industrial applications
• For garden use and irrigation
• Rewindable motor or Full obturated screen motor
• Three-phase: 380V-415V/50Hz
• Single-phase: 220V-240V/50Hz
• Equip with start control box or digital auto-control box
• Pumps are designed by casing stressed
• NEMA dimension standards
• Curve tolerance according to ISO 9906
• Maximum fluid temperature up to +35℃.
• Maximum sand content: 0.25%.
• Maximum immersion: 30m.
• Minimum well diameter: 6".
|

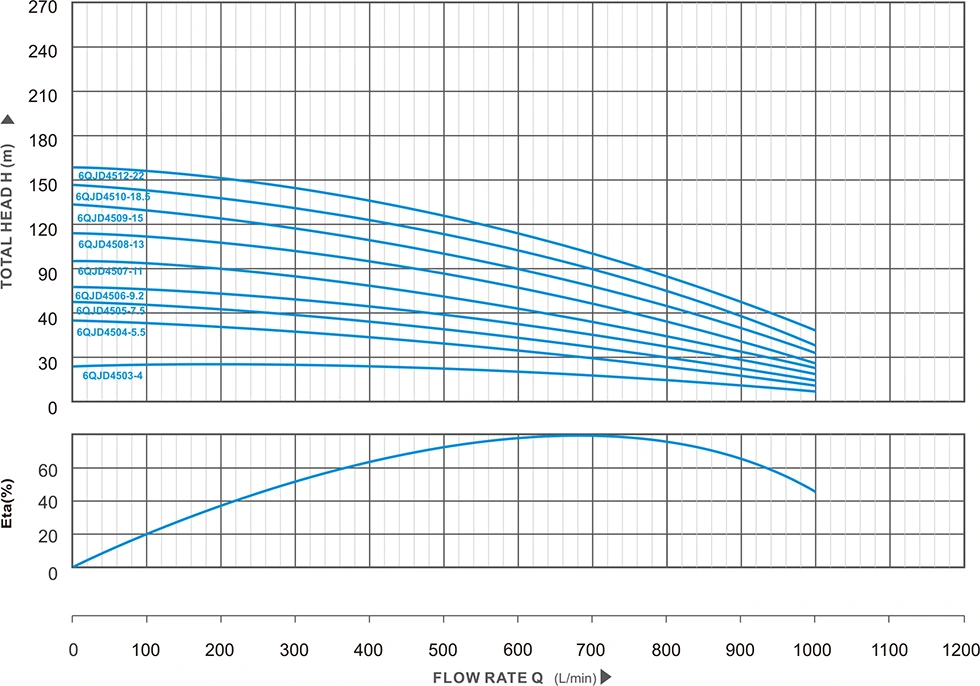

Voltage (V/HZ) |
Inlet/Outlet |
Power |
(m3/h) |
0 |
6 |
12 |
18 |
24 |
30 |
36 |
42 |
48 |
54 |
60 |
|
|
(380-415/50) |
Inch |
KW |
HP |
(L/min) |
0 |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
|
6QJD4503-4 |
3" |
4.0 |
5.5 |
Head (m) |
43 |
41 |
40 |
38 |
35 |
32 |
29 |
26 |
22 |
16 |
11 |
|
6QJD4504-5.5 |
3" |
5.5 |
7.5 |
57 |
55 |
53 |
50 |
47 |
43 |
39 |
34 |
29 |
22 |
15 |
|
|
6QJD4505-7.5 |
3" |
7.5 |
10 |
71 |
69 |
66 |
63 |
58 |
54 |
48 |
43 |
36 |
27 |
18 |
|
|
6QJD4506-9.2 |
3" |
9.2 |
12.5 |
86 |
83 |
80 |
76 |
70 |
64 |
58 |
51 |
43 |
33 |
22 |
|
|
6QJD4507-11 |
3" |
11 |
15 |
100 |
97 |
93 |
88 |
82 |
75 |
68 |
60 |
50 |
38 |
26 |
|
|
6QJD4508-13 |
3" |
13 |
17.5 |
114 |
110 |
106 |
101 |
94 |
86 |
78 |
68 |
58 |
44 |
29 |
|
|
6QJD4509-15 |
3" |
15 |
20 |
129 |
124 |
120 |
113 |
105 |
97 |
87 |
77 |
65 |
49 |
33 |
|
|
6QJD4510-18.5 |
3" |
18.5 |
25 |
143 |
138 |
133 |
126 |
117 |
107 |
97 |
85 |
72 |
54 |
36 |
|
|
6QJD4512-22 |
3" |
22.0 |
30 |
172 |
166 |
160 |
151 |
140 |
129 |
116 |
103 |
86 |
65 |
44 |
|
