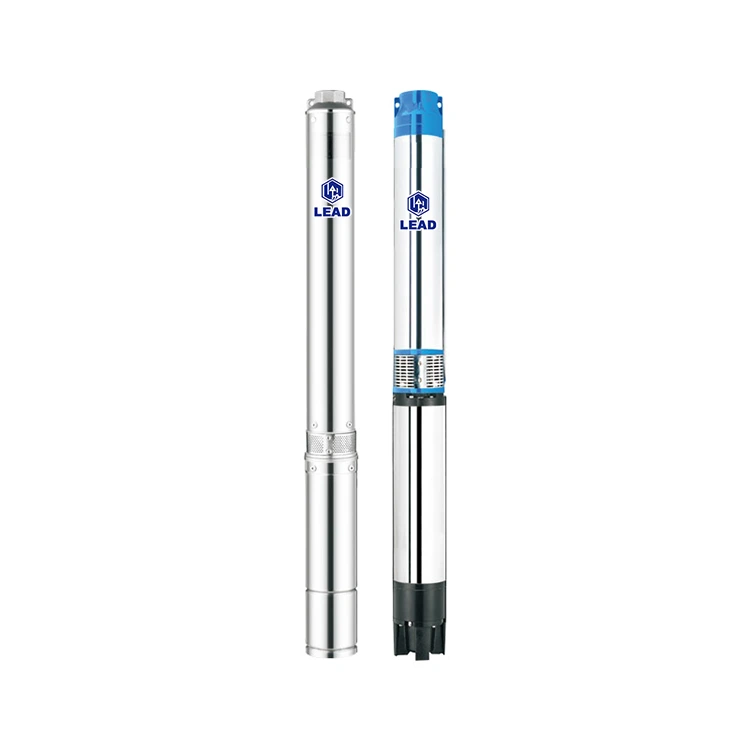

LEAD PUMP is one of prominent manufacturer, producer, and exporter of 5.5-30HP 3PH Oil Filled Deep Well Pump Rated in China.
• For water supply from wells or reservoirs
• For domestic use, for civil and industrial applications
• For garden use and irrigation
• Rewindable motor or Full obturated screen motor
• Three-phase: 380V-415V/50Hz
• Single-phase: 220V-240V/50Hz
• Equip with start control box or digital auto-control box
• Pumps are designed by casing stressed
• NEMA dimension standards
• Curve tolerance according to ISO 9906
• Maximum fluid temperature up to +35℃.
• Maximum sand content: 0.25%.
• Maximum immersion: 30m.
• Minimum well diameter: 6".
|

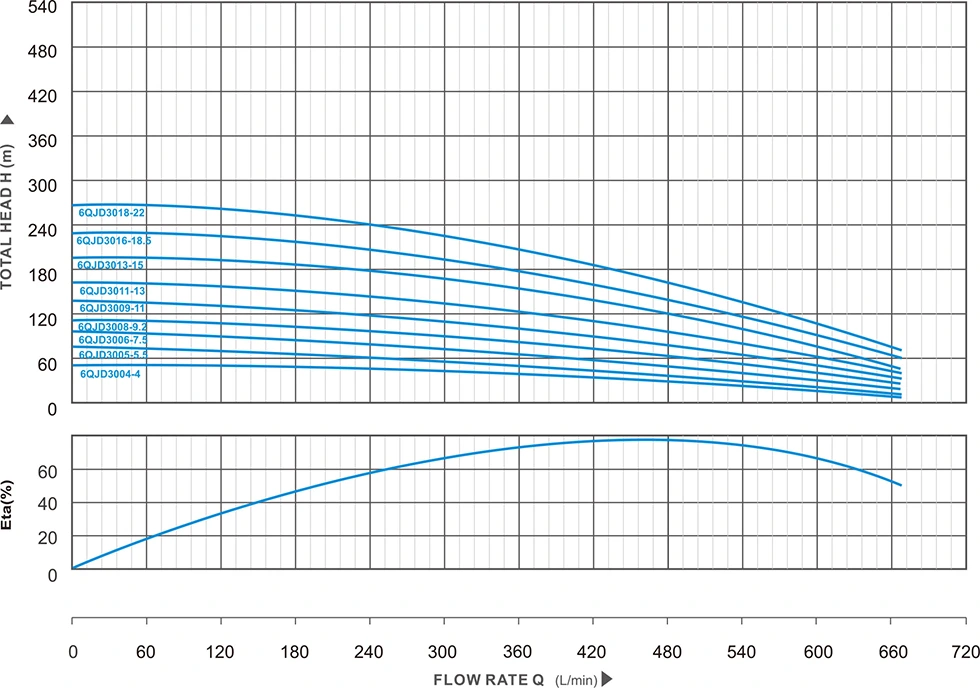

Voltage (V/HZ) |
Inlet/Outlet |
Power |
(m3/h) |
0 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
|
|
(380-415/50) |
Inch |
KW |
HP |
(L/min) |
0 |
83 |
167 |
250 |
333 |
417 |
500 |
583 |
667 |
|
6QJD3004<4 |
2 1/2" |
4.0 |
5.5 |
Head (m) |
59 |
55 |
51 |
48 |
44 |
40 |
33 |
25 |
15 |
|
6QJD3005-5.5 |
2 1/2" |
5.5 |
7.5 |
74 |
69 |
64 |
60 |
55 |
50 |
42 |
32 |
19 |
|
|
6QJD3006-7.5 |
2 1/2" |
7.5 |
10 |
89 |
82 |
76 |
72 |
66 |
60 |
50 |
38 |
23 |
|
|
6QJD3008-9.2 |
2 1/2" |
9.2 |
12.5 |
119 |
110 |
102 |
95 |
87 |
79 |
67 |
51 |
31 |
|
|
6QJD3009-11 |
2 1/2" |
11 |
15 |
133 |
123 |
114 |
107 |
98 |
89 |
75 |
57 |
34 |
|
|
6QJD3011-13 |
2 1/2" |
13 |
17.5 |
163 |
151 |
140 |
131 |
120 |
109 |
92 |
70 |
42 |
|
|
6QJD3013-15 |
2 1/2" |
15 |
20 |
193 |
178 |
165 |
155 |
142 |
129 |
108 |
82 |
50 |
|
|
6QJD3016-18.5 |
2 1/2" |
18.5 |
25 |
237 |
219 |
203 |
191 |
175 |
159 |
133 |
101 |
61 |
|
|
6QJD3018-22 |
2 1/2" |
22.0 |
30 |
267 |
247 |
229 |
215 |
197 |
179 |
150 |
114 |
69 |
|
