AC DC Hybrid Solar Pool Pump

TECHNICAL DATA OF AC DC SWIMMING CIRCULATION PUMP

LEAD PUMP is a professional AC DC Hybrid Solar Pool Pump manufacturer and supplier in China, you can rest assured to buy AC DC Hybrid Solar Pool Pump from our factory and we will offer you the best after-sale service and timely delivery.

ITEM	ACInput Voltage (V)	DC input Voltage(V)	Power (w)	Max. Flow (m³/h)	Max.Head (m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
AC/DCLP25-16-750	100-264	108-410V	750	25	16	G1-1/2"/G2"	＜430V	36	340	3
AC/DCLP28-19-1100	100-264	108-410V	1100	28	19	G1-1/2"/G2"	＜430V	36	340	4
AC/DCLP28-22-1500	100-264	108-410V	1500	28	22	G1-1/2"/G2"	＜430V	36	340	6
AC/DCLP35-125-1800	100-264	108-410V	1800	35	25	G1-1/2"/G2"	＜430V	36	340	7
AC/DCLP35-130-2200	100-264	108-410V	2200	35	30	G1-1/2"/G2"	＜430V	36	340	8

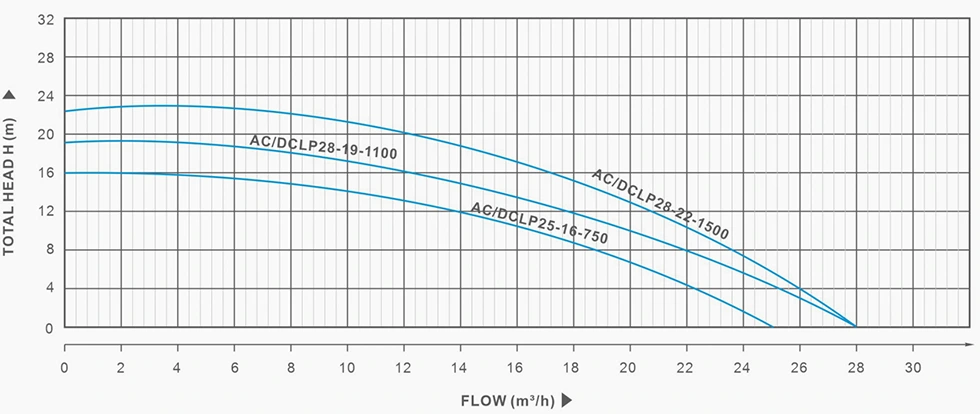

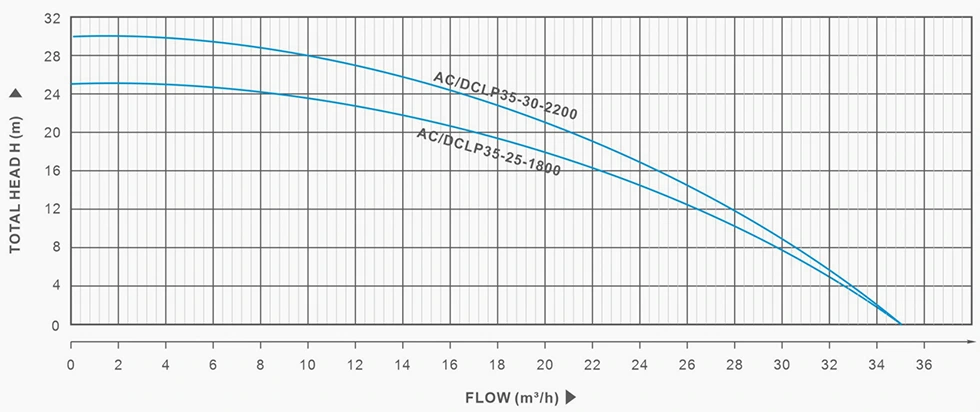

PEPFORMANCE CURVES

FEATURES OF AC DC POWERED SOLAR SWIMMING POOL PUMP:

Power input type (Auto-switch controller): direct Current and alternating Current input alternating. When solar powered condition is not fulfilled, the pump will work under electricity automatically. When DC mode condition is fulfilled, it will operate under dc powered.

Pump input type (Complementairy hybrid controller): direct Current and alternating Current input hybrid. When DC mode condition is fulfilled, it will operate under dc powered. When DC power is too less to support pump operation, the Direct Current and Alternate Current will work at the same time. AC power as a complementairy.

Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.

FUNCTION OF LEAD PUMP HYBRID AC DC POOL PUMP

MPPT.

Thermal protection.

Anti-dry run protection.

Anti-block protection.

Voltage & Current & Power protection.

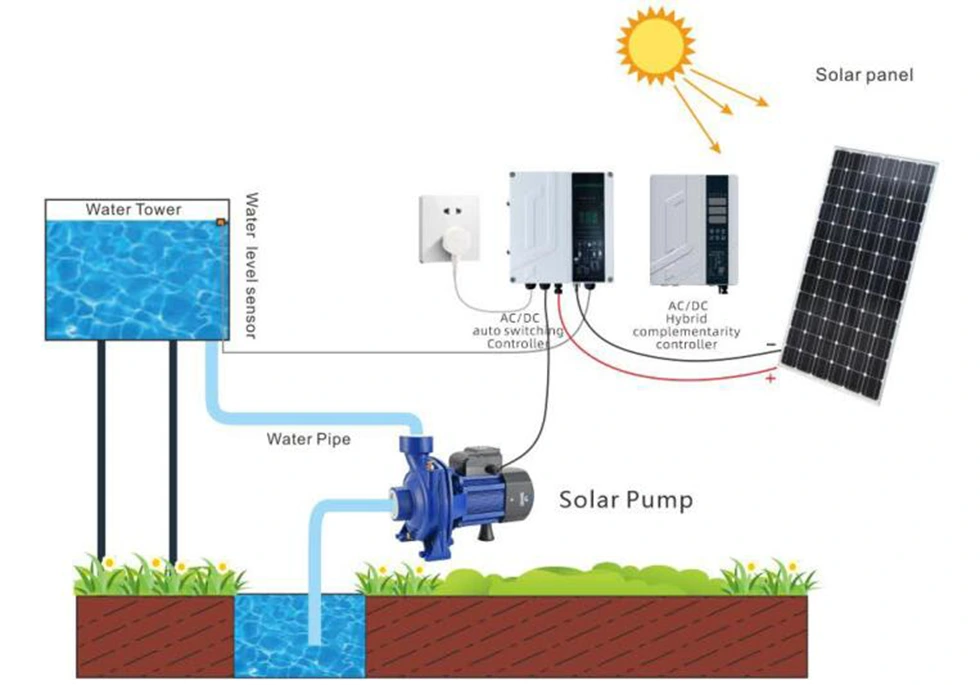

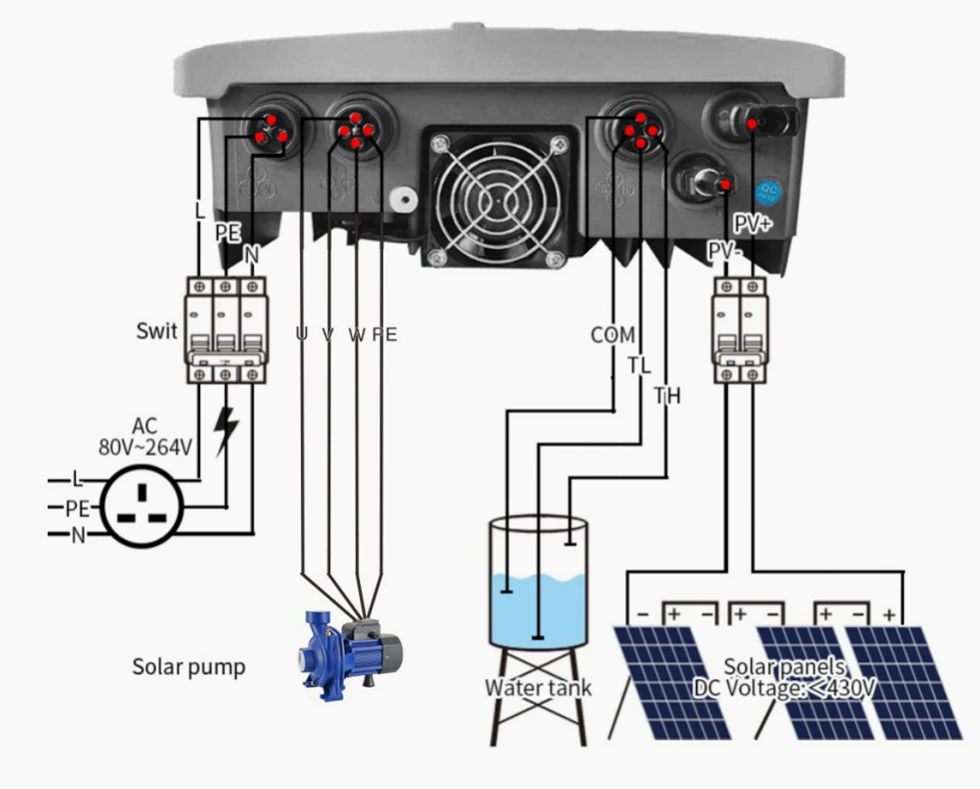

WIRING & APPLICATION OF SOLAR AC DC HYBRIDE SURFACE PUMP :

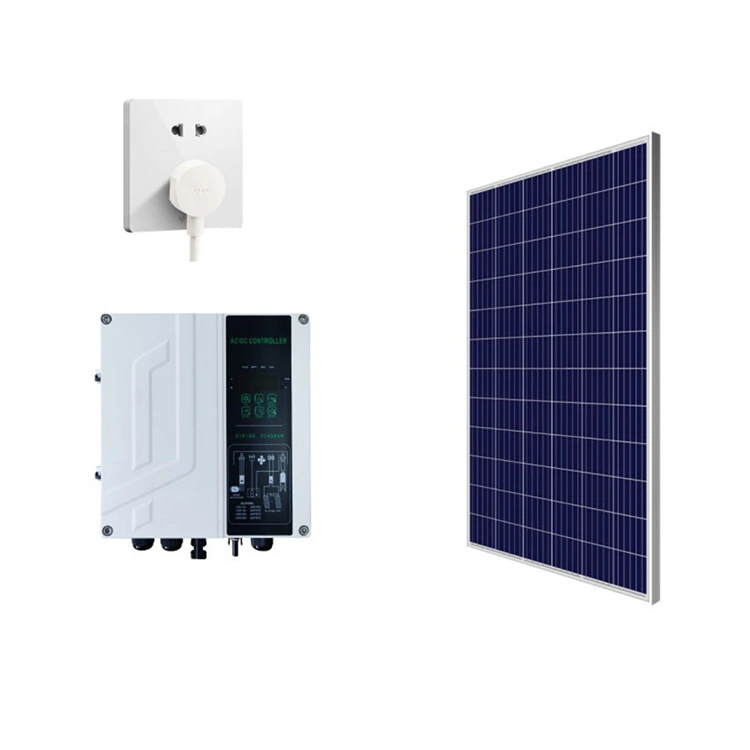

PACKAGE OF SOLAR AC DC POWERED HYBRIDE POOL POND PUMP:

Solar ac dc hybrid input solar swimming pool pump - 1 piece.

Suitable ac dc hybrid complementary controller / auto-switch controller - 1 piece.

Accessory kits - 1 set

User's manual - 1 piece

ACCESSARY KITS FOR ACDCLP SWIMMING POOL PUMP SERIES AC DC HYBRID SOLAR SURFACE PUMP:

SERVICES FOR OEM CUSTOMERS

Manage your own brand for solar pump business? Supported. Please provide company registered certificates.

Customized packing? Ordered quantity of solar water pumps >=100, Supported.

Choose an unique color only for your brand? Ordered quantity of solar peripheral pump & centrifugal pump & JET pump >=100 pieces, Supported. Order quantity of swimming pool pump series >=300pcs, Supported.

Payment methods & Terms: Negotiation.

Trade terms: Choosing a way which is convinent for buyer.
