Hybrid Brushless Peripheral Solar Water Pump

TECHNICAL DATA OF LEAD PUMP AC DC TYPE PERIPHERAL PUMP

LEAD PUMP is a professional China Hybrid Brushless Peripheral Solar Water Pump manufacturer and supplier, if you are looking for the Hybrid Brushless Peripheral Solar Water Pump, consult us now!

ITEM	ACInput Voltage (V)	DC input Voltage(V)	Power (w)	Max. Flow (m³/h)	Max.Head (m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
AC/DCQB3.5-70-750	100-264	108-410V	750	3.5	70	1"X1"	＜430V	36	340	3

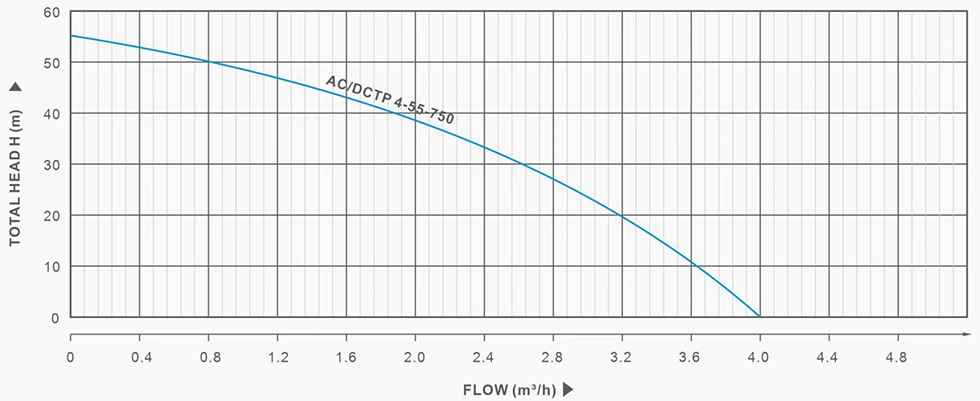

PEPFORMANCE CURVES OF AC DC QB PERIPHERAL PUMP

FEATURES OF AC DC HYBRID QB PERIPHERAL PUMP:

Power input type (Auto-switch controller): direct Current and alternating Current input alternating. When solar powered condition is not fulfilled, the pump will work under electricity automatically. When DC mode condition is fulfilled, it will operate under dc powered.

Pump input type (Complementairy hybrid controller): direct Current and alternating Current input hybrid. When DC mode condition is fulfilled, it will operate under dc powered. When DC power is too less to support pump operation, the Direct Current and Alternate Current will work at the same time. AC power as a complementairy.

Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.

FUNCTION OF LEAD PUMP SOLAR SURFACE PUMP

MPPT.

Thermal protection.

Anti-dry run protection.

Anti-block protection.

Voltage & Current & Power protection.

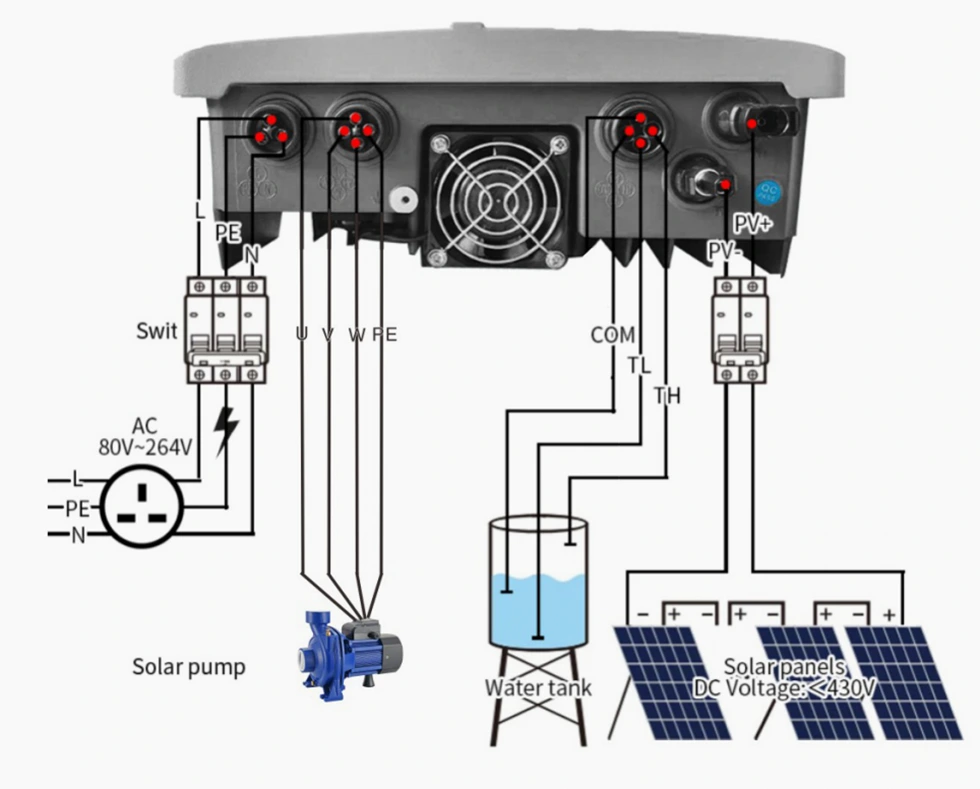

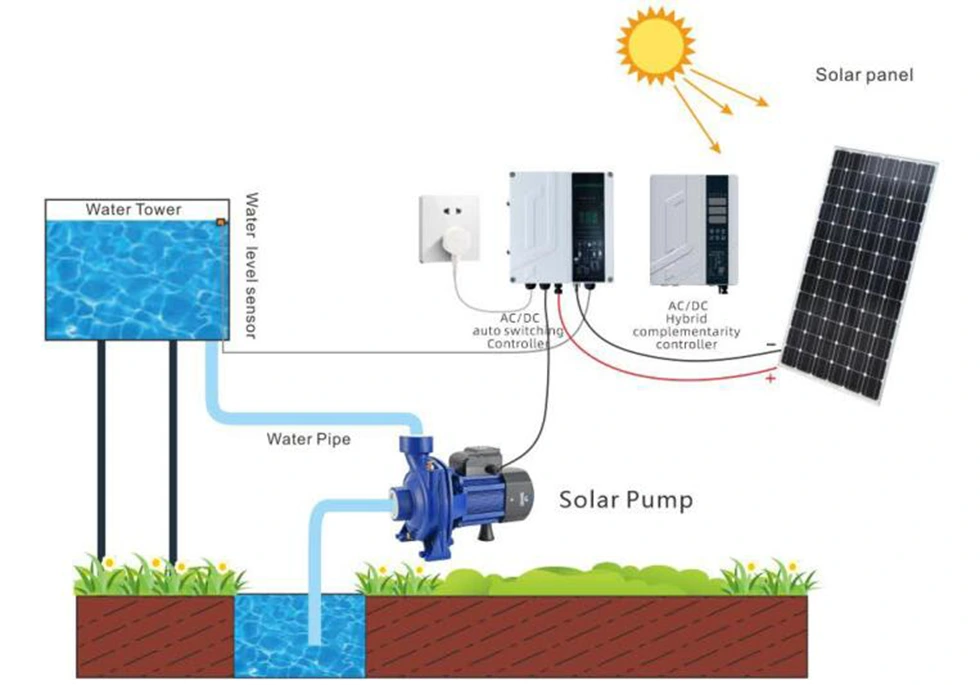

WIRING & APPLICATION OF SOLAR AC DC HYBRIDE PERIPHERAL PUMP :

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

Solar ac dc hybrid input peripherl water pump - 1 piece.

Suitable ac dc hybrid complementairy controller / auto-switch controller - 1 piece.

Accessary kits - 1 set

User's manual - 1 piece

ACCESSARY KITS FOR QB PERIPHERAL SERIES AC DC HYBRID SOLAR SURFACE PUMP

SERVICES FOR OEM CUSTOMERS

Manage your own brand for solar pump business? Supported. Please provide company registered certificates.

Customized packing? Ordered quantity of solar water pumps >=100, Supported.

Choose an unique color only for your brand? Ordered quantity of solar peripheral pump & centrifugal pump & JET pump >=100 pieces, Supported. Order quantity of swimming pool pump series >=300pcs, Supported.

Payment methods & Terms: Negotiation.

Trade terms: Choosing a way which is convinent for buyer.
