AC DC Solar Powered Pump with Stainless Steel Impeller

LEAD PUMP is one of professional leader China AC DC Solar Powered Pump with Stainless Steel Impeller manufacturer with high quality and reasonable price. Welcome to contact us.

The Solar Pump with Stainless Steel Impeller is suitable for borehole wells which diameter is less than 75mm. It can pump hot water, sea water, and light - corrosive fluids because of full 304 stainless steel material. Sand - proof is 25%.

TAIZHOU LEAD PUMP CO., LTD is a professional ac dc solar water pump products manufacturer and wholesaler with more than 5 years experience. What we care most is the product quality and customers’ satisfaction.

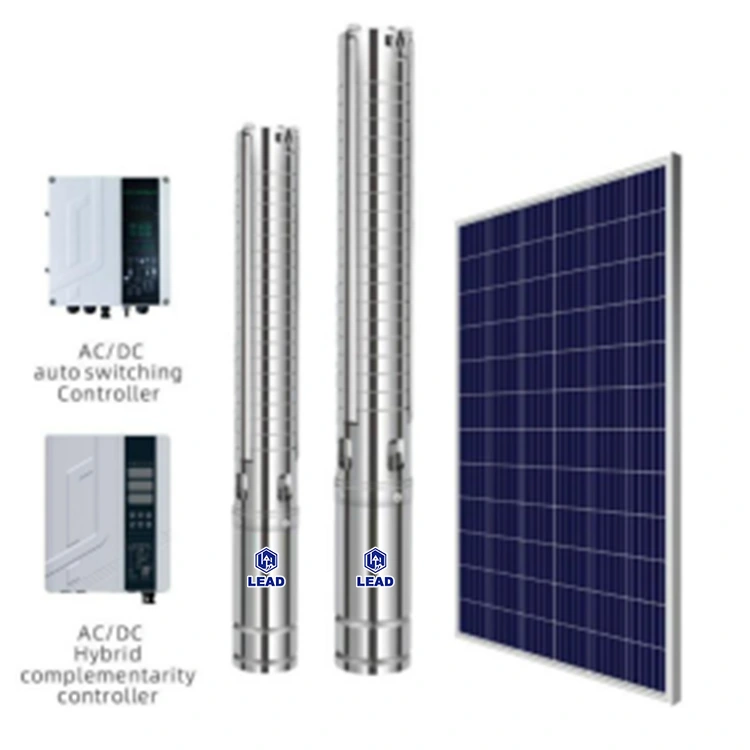

General Introduction to Brushless Submersible Pump:

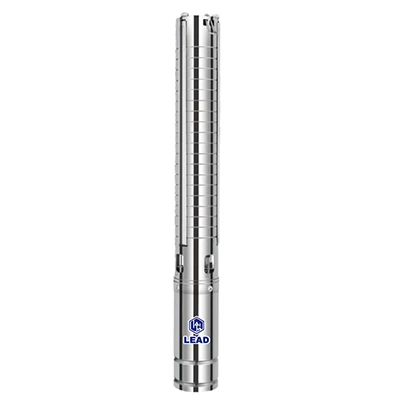

Material. All the parts are made of stainless steel 304 including motor housing, chamber, connecting parts and impeller. The motor is copper winding with dc brushless permanent magnet motor.

The body size is 3 inch, outlet size is 1.25inch, max flow is 5 cubic meter per hour, max head is from 100 meter to 138 meter.





TECHNICAL DATA OF 3 INCH AC DC HYBRID STAINLESS STEEL IMPELLER SUBMERSIBLE PUMPS

ITEM		Voltage (AC)	Voltage (DC)	Power (w)	Max. Flow (m³/h)	Max.Head (m)	Outlet (in)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
1	3SP5-100-110-750-A/D	85-280v	80-420v	750	5	100	1.25"	36	340	3
2	3SP5-112-150-1100-A/D	85-280v	80-420v	1100	5	112	1.25"	36	340	5
3	3SP5-126-150-1300-A/D	85-280v	80-420v	1300	5	26	1.25"	36	340	5
4	3SP5-138-200-1500-A/D	85-280v	80-420v	1500	5	138	1.25"	36	340	6

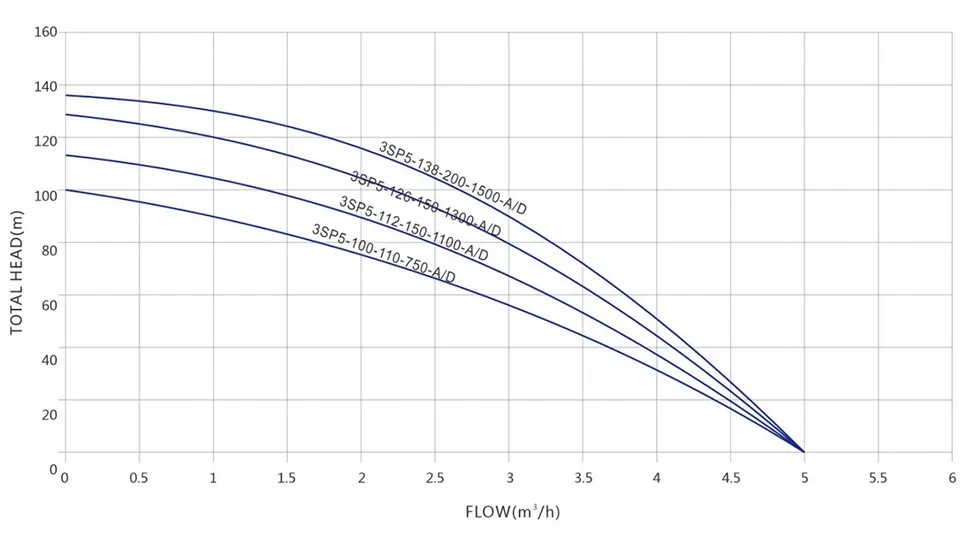

PEPFORMANCE CURVES



General Introduction to AC DC Controller Types:

Classified from power operate mode, remote control function and size of controller, there are 4 types ac dc controller available:

S/N	1	2	3	4

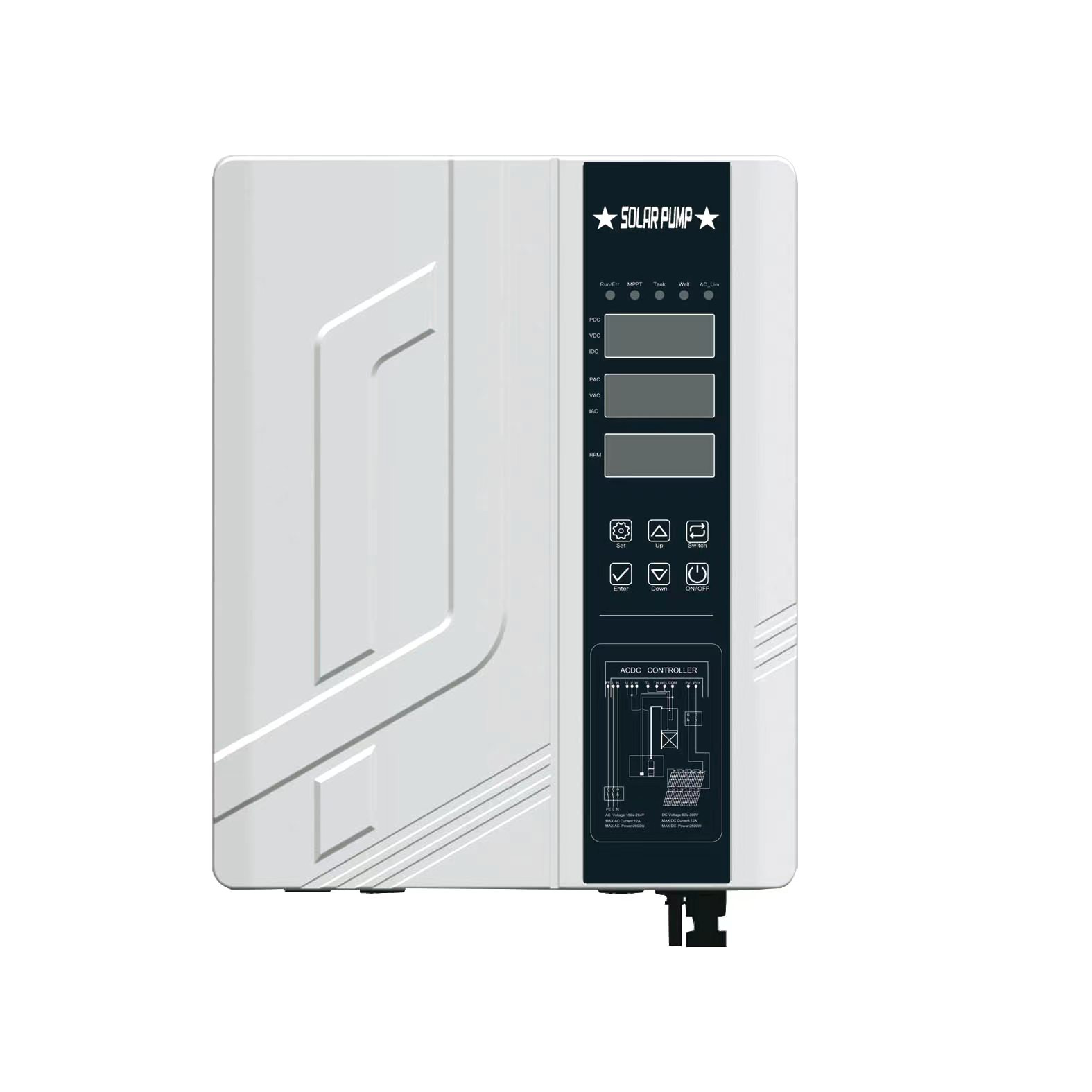

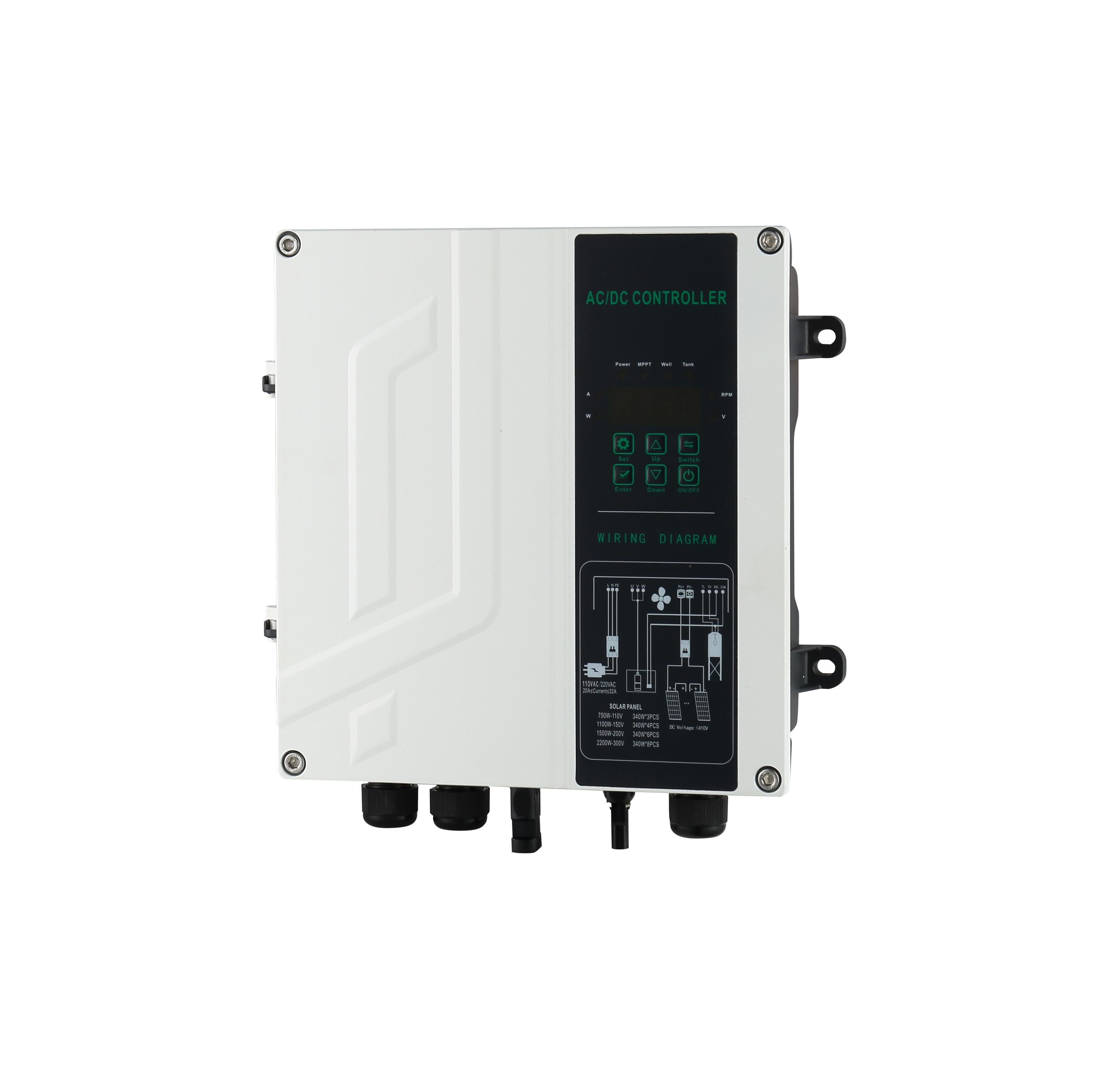

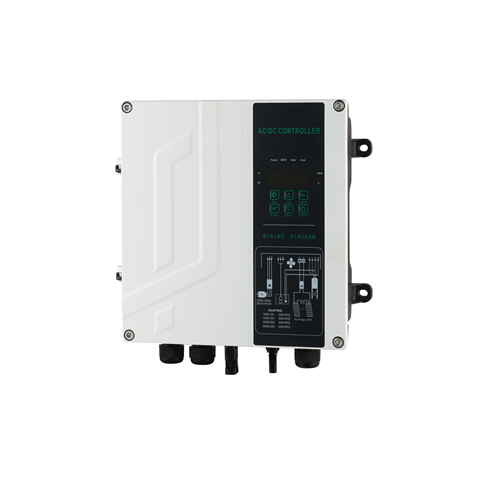

Controller Classification	AC DC Mini Auto Switch Controller	AC DC Auto Switch Controller	AC DC Hybrid Complementary Controller	Remote-Control AC DC Hybrid Controller

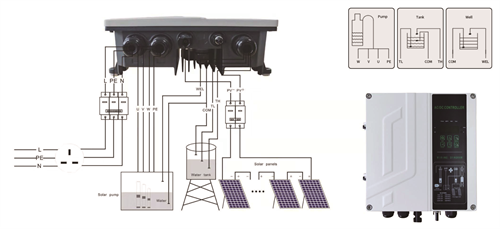

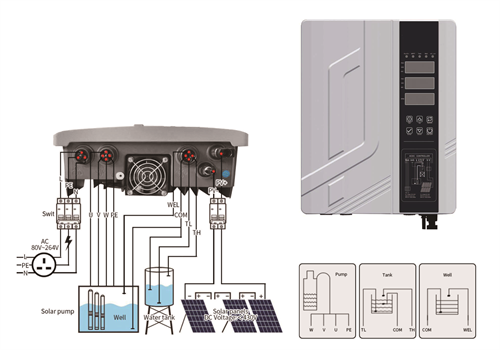

Wiring Instruction
Operation Power Mode	Separate AC/DC	Separate AC/DC	DC, AC, AC+DC	DC, AC, AC+DC
LED Function	√	√	√	√
MPPT	√	√	√	√
Water Shortage Protection	√	√	√	√
Temperature Protection	√	√	√	√
Remote-Control System	×	×	×	√
Water Proof Class	IP66	IP66	IP67	IP67
Costs	1 < 2 < 3 < 4

Remark:

1. Operation power mode means the controller is powered by DC or AC. When DC is less, it switches to AC aromatically. AC DC Hybrid Power means DC as the main power, and when DC input can’t make sure the pump work at it’s best performance, AC input will be as a complementary.

2. LED Function means: Power (AC, DC), Voltage (AC, DC), Current (AC, DC), and Speed could be shown on Controller Screen.

3. Remote Control System: It is compatible with a mobile App with a SIM card insert inside the controller. User’s can Remote control the ON / OFF, timing the solar pump via App. General data like power consumption, Speed, Current, Voltage could be monitored.

General Introduction to Solar Panel Suggestion:

Solar panel is a necessary parts in ac dc hybrid pumping irrigation. But how many solar panels should installers use and in which way to connect them? Although, we provides specific information by using 300Watts / 350Watts (Voc=42V, Vmp=36V), it not always easy to get the right 300/500w panels. Under this circumstance, a principal should be kept in mind while shop panels:

1. The VOC of PV system should be less than the VOC of solar pump.

2. The power of PV system could be 1.3times - 2 times of pump power.

Advantages of AC DC Hybrid Solar Submersible Pump

1. Dual power capacity. AC DC solar pump is flexible to operate on both AC and DC power sources, which makes it suitable for various applications and ensuring continuous operation even in low sunlight conditions.

2. Energy independence. The ac dc pump solar could operate independently of the grid, offering off-grid solutions and reducing dependence on traditional energy sources. Meanwhile, it is good choice to replace traditional diesel or fuel water pumps, which impact environment negatively and high costs.

3. It is compatible with over-load protection, thermal protection, dry run protection and etc, which avoids many killing shortages of traditional electric water pump.

4. Profitable Invest. Comparing to diesel water pump or electric pumps which is low costs of the machine, but they consume continuous high price resources like diesel, grid, and fuel, solar pumps may be a huge costs at first, including product itself and installation fee, however, electricity rely will be highly decreased, which, from a long-term view, it is a good investment, especially in countries or areas where electricity is expensive.

FAQ

Q1: Can customers use their own controller or inverter for Lead’s AC DC brushless motor?

A1: It is not suggested to do so. The programme inserted in controller or pump of different company is different. It might not be able to use if use controllers from another.

Q2: What is the pump's depth rating, and how deep can it effectively pump water?

A2: For oil-cooled motor solar submersible pump, the maximum immersing water depth is 30 meter.

Q3: Can the ac dc borehole pump water can be used for both residential and agricultural applications?

A3: Yes, it can be used in household or agriculture.

Q4: Are there any additional accessories or components required for installation, such as controllers or inverters?

A4: It include ac dc pump, controller, and some necessary accessory kits in a package. What customers need extra to make a ac dc solar pumping are solar panels, mounting frames, cables, pipes.

DESCRIPTION OF SOLAR PUMP:

Motor: Motor coil is made by automatic winding machine with centralized winding technology, which motor efficiency is much improved; The motor takes permanent magnet DC brushless synchronous motor, which efficiency is provide by 15%-20% than normal.
Shaft: #304 stainless steel or #316 stainless steel.
Bearing: High precision bearing, which prolong the working life of solar pump.
Motor base: Double bearing motor base which can work under more axial pressure.
Mechancial seal: Alloy mechanical seal which provide the solar hybrid pump longer working life and higher reliability
Impeller: Closed. #304 / #316 stainless steel impeller.
Cable wire: Customized. Blue flat cable wire / round black cable wire;
Controller/ Inverter: Customized. AC DC Auto switch / AC DC Hybrid complementary controller.





WORKING ENVIRONMENT OF SOLAR AC DC HYBRID PUMP：

Fluid temperature: 0 - (+)60 °C
Working temperature: (-)15°C - (+)60°C
IP: IP66
ICL: F
Sand Potection: 25%



FUNCTIONS:

Intelligent water shortage protection. The pump stops working automatically when there is no water in the well, and automatically start to work in 30 minutes.
MPPT. Maximium Power Point Track, Which can ultiliz the power of solar PV system
LED Display. It can show Power, voltage, speed on the surface of controller
Automatically soft start and stop working
Water proof and leak-proof
High Voltage / Low Voltage / Over Current / High Temperature protection



USING SITUATIONS OF AC DC HYBRID SS IMPELLER SOLAR PUMPS:
Divided by Applicable Situation	Divided by Applicable Intentation
a. Borehole which diameter is more than 75mm	a. Domestic water supply
b. Pond	b. Fountain
c. Cancal	c. Irrigation
d. Resevoir	d. Water transfer
e. Livestock	e. Water supply for cattals or animals





PACKAGE OF 1 SET AC DC SOLAR SUMBERSIBLE PUMP

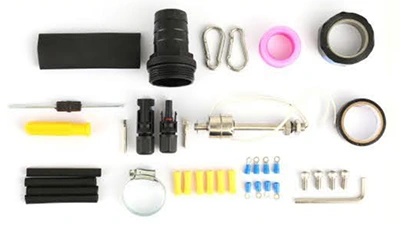

Free accessary kits		1 set	packed inside the box of solar pump

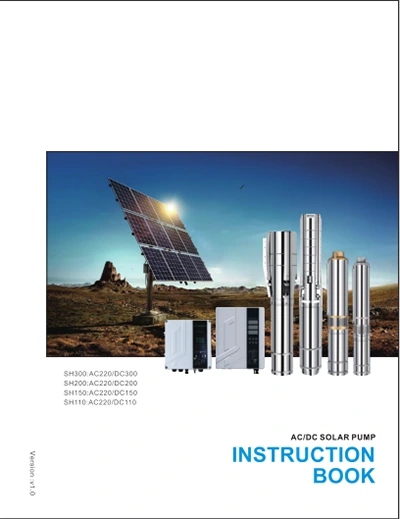

User's manual		1 piece	packed inside the box of solar pump
3 inch solar pump		1 piece	Wooden  packing  or carton packing
AC DC  Auto switch Controller Or AC DC Hybrid complementary Controller		1 piece	Sololy Carton packing
