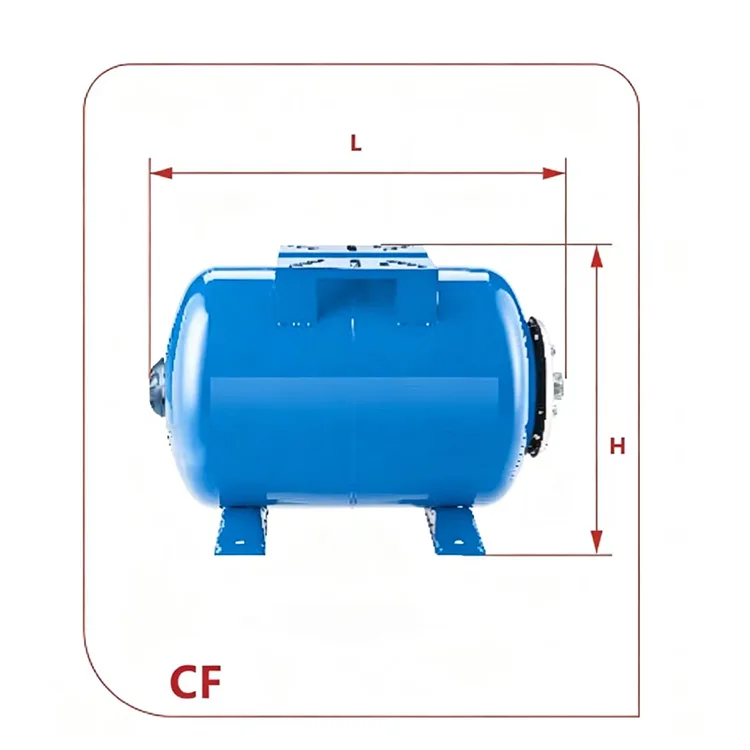

CF Series Horizontal Replaceable Membrane Expansion Tanks (Carbon Steel) — 19L to 100L

Lead Pump's CF Series Horizontal Replaceable Membrane Expansion Tanks (Carbon Steel) — 19L to 100L is a professional-grade horizontal expansion tank line designed for water supply, heating, and irrigation systems where vertical headroom is limited. Manufactured in our state-of-the-art 20,000m² facility with 200+ skilled workers, each CF tank features a robust carbon steel shell with anti-corrosion coating and a fully replaceable rubber bladder (available in butyl or EPDM). The horizontal form factor allows installation in crawl spaces, under sinks, or inside equipment cabinets — making it the preferred choice for compact booster sets and space-constrained mechanical rooms. The series covers 7 models from 19L to 100L, with common 1" threaded connection and pre-charge of 1.8-2.0 bar. All units are 100% pressure-tested before shipping, backed by CE, NSF61, and ISO9001 certifications. Factory-direct supply, OEM branding, and custom packaging available. Trusted by pump manufacturers and system integrators across Europe, the Americas, and Southeast Asia.

CF SERIES — FULL SPECIFICATION TABLE



Common Specifications:

• Working Temperature: Butyl -10°C to 99°C | EPDM -10°C to 99°C | Natural Rubber 0°C to 77°C

• Shell Material: Carbon steel with anti-corrosion painting

• Bladder Type: Replaceable membrane (butyl / EPDM / natural rubber)

• Connection: 1" female threaded (standard)

• Pre-charge: 1.8-2.0 bar (factory set, adjustable on-site)

Key Advantages of Horizontal Design:

✔ Low-profile footprint — ideal for under-sink, basement, and mechanical closet installations

✔ Easy wall or frame mounting with optional brackets

✔ Replaceable bladder — maintenance cost < 30% of tank replacement

✔ Multiple pressure ratings within one model family — simplify inventory management

✔ Pre-charged air cushion — instant response, no delay in pressure regulation

HORIZONTAL EXPANSION TANK — APPLICATION SCENARIOS & INSTALLATION GUIDE

Ideal Application Scenarios:

● Compact domestic booster sets — mount alongside the pump inside a cabinet or frame

● Light commercial water distribution — install in dropped ceilings or utility closets

● Irrigation pressure tanks — fits under pump covers / well houses with limited height

● Solar thermal systems — horizontal form fits behind panels or in roof cavities

● Industrial process water — install on wall brackets to save floor space

Installation Best Practices of CF Series Horizontal Replaceable Membrane Expansion Tanks (Carbon Steel) — 19L to 100L:

1.Mount the tank horizontally using the provided wall bracket (models 19L-24L) or place on a flat, level surface (36L-100L)

2.Pre-charge to 1.8-2.0 bar before connecting to system (adjust to 0.2 bar below pump cut-in pressure)

3.Use flexible hose connectors to avoid transmitting vibration to rigid piping

4.Install a shut-off valve between tank and system for easy maintenance

5.Check pre-charge pressure annually — recharge if drop > 0.3 bar

Model Selection Quick Guide:

• CF-19L / CF-24L — Small domestic booster sets, single bathroom application

• CF-36L / CF-50L — Standard homes (2-3 bathrooms), small irrigation systems

• CF-60L / CF-80L — Large homes, light commercial, medium irrigation

• CF-100L — Multi-family buildings, commercial booster systems, heavy irrigation

WHY LEAD PUMP FOR YOUR CF SERIES?

● Full Series Coverage (Matching Concern)

From 19L to 100L, all with 1" connection and uniform pre-charge. Mix models in one container — no need to source different tanks from different factories. One call covers your entire spec range.

● True Factory Pricing (Price Concern)

Lead Pump is the manufacturer, with our own steel fabrication, painting, and assembly lines. No trading company margin. Request a line-by-line cost breakdown — we are transparent about material, labor, and overhead costs.

● 100% Pressure Tested (Quality Concern)

Every single CF Series Horizontal Replaceable Membrane Expansion Tanks (Carbon Steel) — 19L to 100L undergoes hydrostatic pressure test at 1.5x rated pressure before leaving the factory. Test certificates provided with each shipment. Defect rate < 0.3%.

OEM & Customization Services (Flexibility Concern)

• Custom bladder material selection (butyl / EPDM / natural rubber)

• Custom paint color and logo printing

• Custom packaging: neutral box, branded box, pallet packing, or export carton

• Special thread adaptors: NPT, BSP, or as specified

• Pressure gauge port installation upon request

Shipping & Lead Times

• Sample: within 7 days after confirmation

• Bulk order (50-500 pcs): 15-20 working days

• Bulk order (500+ pcs): 25-30 working days

• Port of loading: FOB Ningbo / Shanghai

• Payment: T/T (30% deposit, 70% before shipment), L/C at sight
