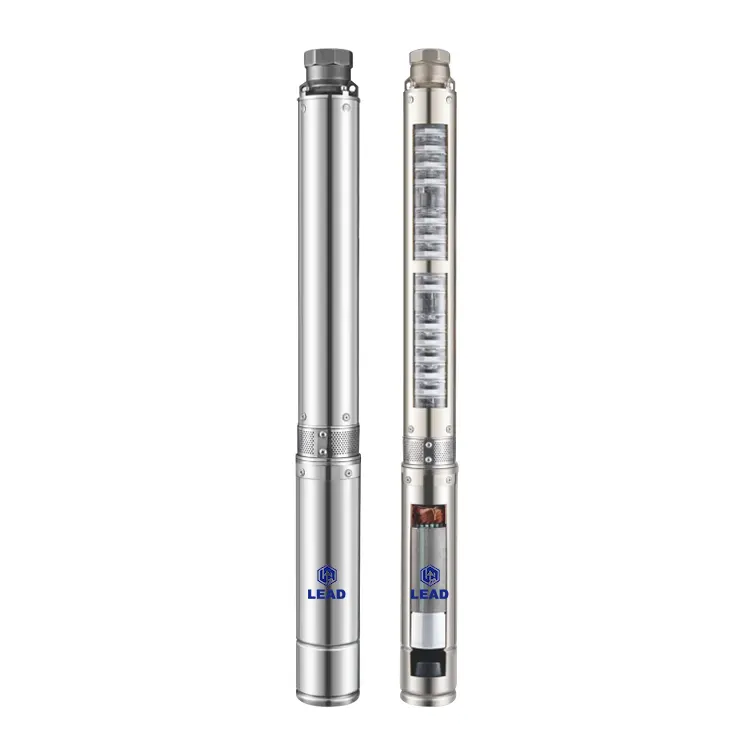

High Speed Brushless Plastic Impeller Solar Deep Well Pump

Specically designed for efficient water extraction in remote and off-grid areas, this pump is the optimum solution to water extraction challenges. It combines cutting-edge brushless motor technology with tough and durable plastic blade construction to ensure exceptional performance and excellent energy efficiency. This High Speed Brushless Plastic Impeller Solar Deep Well Pump is powered by solar energy and has become a highly regarded green choice for agricultural irrigation, daily water supply and even industrial applications.

Send Inquiry

Product Description

High Speed Brushless Plastic Impeller Solar Deep Well Pump

1. Product Overview

Specically designed for efficient water extraction in remote and off-grid areas, this pump is the optimum solution to water extraction challenges. It combines cutting-edge brushless motor technology with tough and durable plastic blade construction to ensure exceptional performance and excellent energy efficiency. This pump is powered by solar energy and has become a highly regarded green choice for agricultural irrigation, daily water supply and even industrial applications.

2. Key Features

Efficient Operation of Brushless Motor: Smooth and safe, greatly reducing maintenance frequency and effectively extending pump life.

Durable Plastic Impeller: Excellent corrosion and wear resistance, coping with a variety of water environments.

Solar Drive Efficiency: Relying on solar energy for economic, environmental protection, sustainable and stable operation.

Deep Well Water Extraction Strength: Designed for the extraction of deep water below 100 metres.

Lightweight & Compact: Convenient installation and easy transportation, especially to meet the needs of remote areas.

3. Applications

Agricultural irrigation

Rural daily water supply

Livestock watering

Industrial water management

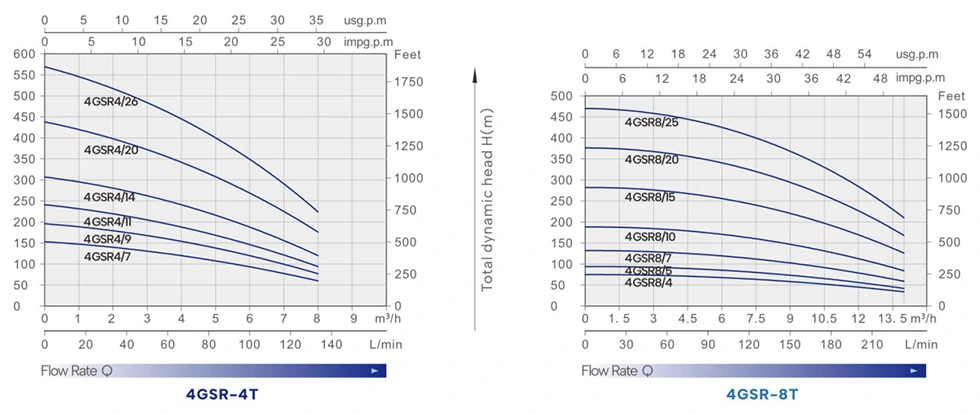

4GSR4	kW	V	m³/h	0	2	3	4	5	6	7	8	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
4GSR4	kW	V	m³/h	0	2	3	4	5	6	7	8	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
4GSR4-123/7	2.2	380	Head (m)	154	140	133	123	112	98	81	60	1%/2°	447	291	738	4.2	6.7	10.9	100
4GSR4-158/9	3	380		198	180	171	158	144	126	104	77	1X°/2*	537	301	838	4.7	7.3	12.0	100
4GSR4-193/11	4	380		242	220	209	193	176	154	128	95	1X"/2*	591	331	922	5.1	8.7	13.8	100
4GSR4-245/14	5.5			308	280	266	245	224	196	162	120	1%/2°	707	371	1078	5.8	10.8	16.6	100
4GSR4-350/20	7.5	380		440	400	380	350	320	280	232	172	1%/2*	904	456	1360	7.0	14.8	21.8	100
4GSR4-455/26	l1	380		572	520	494	455	416	364	302	224	1%°/2*	1101	496	1597	8.4	16.5	24.9	100

4GSR8	kW	V	m³/h	0	3	5	6	8	10	12	14	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
4GSR8	kW	V	m³/h	0	3	5	6	8	10	12	14	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
4SR8-64/4	2.2	380	Head (m)	76	74	70	68	64	58	48	34	2"	384	291	675	3.7	6.7	10.4	100
4SR8-80/5	3	380		95	93	88	85	80	73	60	43	2"	415	301	716	3.9	7.3	11.2	100
4SR8-112/7	4	380		133	130	123	119	112	102	84	60	2"	478	331	809	4.3	8.7	13	100
4GSR8-160/10	5.5	380		190	185	175	170	160	145	120	85	2”	608	371	979	5.1	10.8	15.9	100
4GSR8-240/15	7.5	380		285	278	263	255	240	218	180	128	2"	801	456	1257	6.2	14.8	21.0	100
4GSR8-320/20	11	380		380	370	350	340	320	290	240	170	2"	994	496	1490	7.4	16.5	23.9	100
4GSR8-400/25	15	380		475	463	438	425	400	363	300	213	2"	1186	536	1722	8.6	18.3	26.9	100

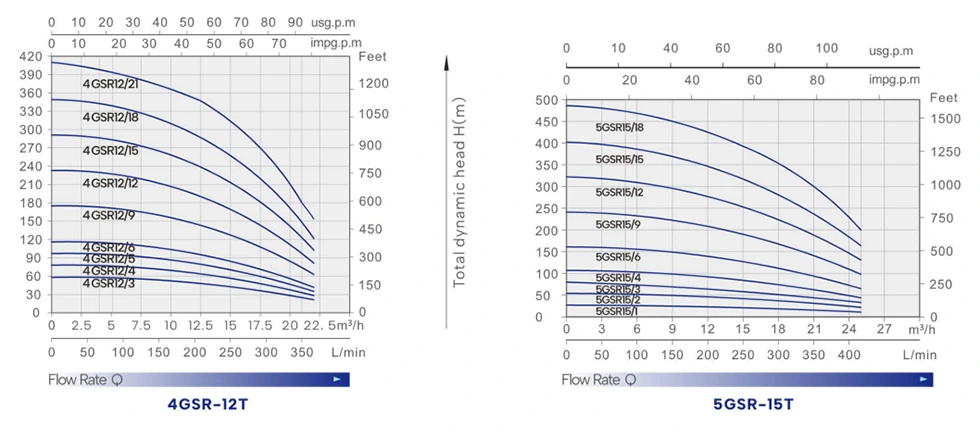

4GSR12	kW	V	m³/h	0	3	6	9	12	15	18	21	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
4GSR12	kW	V	m³/h	0	3	6	9	12	15	18	21	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
4GSR12-50/3	2.2	380	Head (m)	59	56	54	53	50	44	36	26	2"	370	291	661	3.6	6.7	10.3	100
4GSR12-66/4	3	380		78	74	72	70	66	58	48	34	2"	408	301	709	3.8	7.3	11.1	00
4GSR12-83/5	4	380		98	93	90	88	83	73	60	43	2"	445	331	776	4.0	8.7	12.7	100
4GSR12-99/6	5.5	380		117	111	108	105	99	87	72	51	2"	518	371	889	4.4	10.8	15.2	100
4GSR12-149/9	7.5	380		176	167	162	158	149	31	108	77	2"	630	456	1086	5.1	14.8	19.9	100
4GSR12-198/12	11	380		234	222	216	210	198	174	144	102	2”	779	496	1275	5.9	16.5	22.4	100
4GSR12-248/158	15	380		293	278	270	263	248	218	180	128	2"	890	536	426	6.6	18.3	24.9	100
4GSR12-297/1	18.5	380		351	333		315	297	261	216	153	2"	1039	556	1595	7.4	19.5	26.9	100
4GSR12-347/21	22	380		410	389	378	368	347	305	252	179	2"	1188	596	1784	8.2	20.7	28.9	100

5GSR15	kW	v	m³/h	0	5	10	12	15	18	20	25	Outlet Diameter	length(mm)			weight(kg)			Motorouter diameter (mm)
5GSR15	kW	v	m³/h	0	5	10	12	15	18	20	25	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motorouter diameter (mm)
5GSR15-22/1	2.2	380	Head (m)	27	26	24	23	22	19	17	11	2"	343	291	634	6.3	6.7	13.0	100
5GSR15-43/2	3	380		54	52	48	46	43	38	34	22	2"	381	301	682	6.7	7.3	14.0	100
5GSR15-65/3	4	380		81	78	72	69	65	57	51	33	2"	420	331	751	7.1	8.7	15.8	100
5GSR15-86/4	5.5	380		108	104	96	92	86	76	68	44	2"	459	371	830	7.5	10.8	18.3	100
5GSR15-129/6	7.5	380		162	156	144	138	29	114	102	66	2"	575	456	1031	8.6	14.8	23.4	100
5GSR15-194/9	11	380		243	234	216	207	194	153	153	99	2"	691	496	1187	9.8	16.5	26.3	100
5GSR15-258/12	15	380		324	312	288	276	258	228	204	132	2"	846	536	1382	11.3	18.3	29.6	100
5GSR15-323/15	18.5	380		405	390	360	345	323	285	255	165	2"	963	556	1519	12.5	19.5	32.0	100
5GSR15-387/8	22	380		486	468	432	414	387	342	306	198	2"	1080	596	1676	13.7	20.7	34.4	100

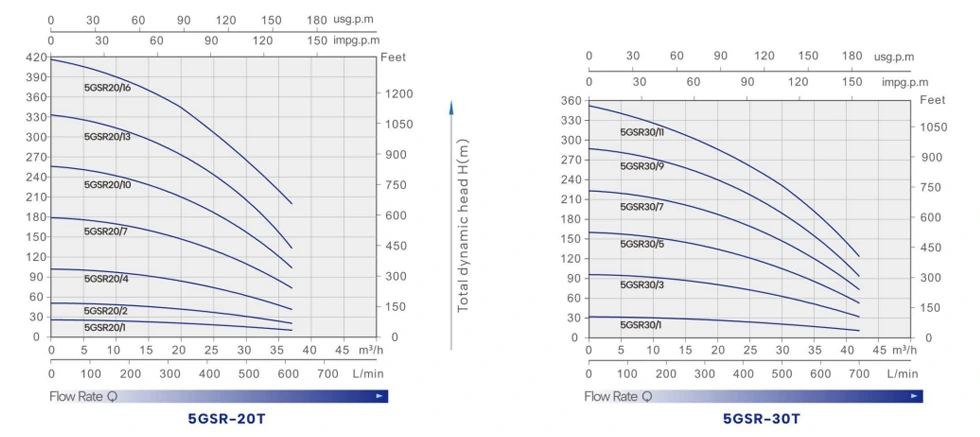

5GSR20	kW	V	m³/h	0	5	10	15	20	25	30	35	Outlet Diameter	length(mm)			weight(kg)			Motor outerdiameter
5GSR20	kW	V	m³/h	0	5	10	15	20	25	30	35	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outerdiameter
5GSR20-22/1	3	380	Head (m)	26	26	25	23	22	19	16	13	2"	349	301	650	6.3	7.3	13.6	(mm) 100
5GSR20-43/2	5.5	380		52	51	49	46	43	37	31	25	2”	395	371	766	6.8	10.8	17.6	100
5GSR20-86/4	7.5	380		104	102	98	92	86	74	62	50	2"	487	456	943	7.7	14.8	22.5	100
5GSR20-151/7	11	380		182	179	172	161	151	130	109	88	2"	663	496	1159	9.4	16.5	25.9	100
5GSR20-215/10	15	380		260	255	245	230	215	185	155	125	2"	801	536	1337	10.8	18.3	29.1	100
5GSR20-278/13	18.5	380		338	332	319	299	278	24	202	163	2"	977	556	1533	12.4	19.5	31.9	100
5GSR20-344/16	22	380		416	408	392	368	344	296	248	200	2"	1153	596	1749	14.8	20.7	35.5	100

5GSR30	kW	V	m³/h	0	10	15	20	25	30	35	40	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
5GSR30	kW	V	m³/h	0	10	15	20	25	30	35	40	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weigh	Motor outer diameter (mm)
5GSR30-21/1	5.5	380	Head (m)	32	28	27	26	24	21	18	13	2"	355	371	726	6.4	10.8	17.2	100
5GSR30-63/3	7.5	380		96	84	81	78	72	63	54	39	2"	459	456	915	7.5	14.8	22.3	100
5GSR30-105/5	11	380		160	140	135	130	120	105	90	65	2"	563	496	1059	8.5	16.5	25.0	100
5GSR30-147/7	15	380		224	196	189	182	168	147	126	91	2”	705	536	1241	9.9	18.3	28.2	100
5GSR30-189/9	18.5	380		288	252	243	234	216	189	162	117	2"	809	556	1365	10.9	19.5	30.4	100
5GSR30-231/11	22	380		352	308	297	286	264	231	198	143	2"	913	596	1509	11.9	20.7	32.6	100

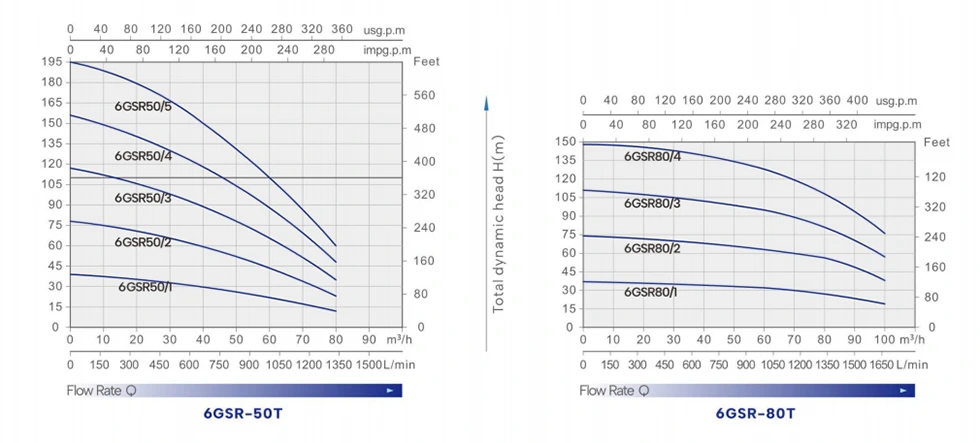

6GSR50	kW	v	m³/h	0	10	30	40	50	60	70	80	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
6GSR50	kW	v	m³/h	0	10	30	40	50	60	70	80	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
6GSR50-26/1	5.5	380	Head (m)	39	38	34	30	26	22	18	12	3”	351	371	722	6.8	10.8	17.6	100
6GSR50-52/2	7.5	380		78	76	68	60	52	44	36	24	3”	435	456	891	8.5	14.8	23.3	100
6GSR50-78/3	15	380		117	114	102	90	78	66	54	36	3"	519	536	1055	10.2	18.3	28.5	100
6GSR50-104/4	18.5	380		156	152	136	120	104	88	72	48	3"	603	556	1159	12.0	19.5	31.5	100
6GSR50-130/5	22	380		195	190	170	150	130	10	90	60	3"	687	596	1283	13.8	20.7	34.5	100

6GSR80	kW	v	m³/h		20	40	60	70	80	90	100	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
6GSR80	kW	v	m³/h		20	40	60	70	80	90	100	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
6GSR80-27/1	7.5	380	Head (m)	38	36	33	32	30	27	24	19	3"	379	456	835	6.9	14.8	21.7	100
6GSR80-54/2	15	380		76	72	66	64	60	54	48	38	3"	491	536	1027	8.8	18.3	27.1	100
6GSR80-81/3	18.5	380		114	108	99	96	90	81	72	57	3”	603	556	1159	10.7	19.5	30.2	100
6GSR80-108/4	22	380		152	144	132	128	120	108	96	76	3"	715	596	131	12.6	20.7	33.3	100

Hot Tags: High Speed Brushless Plastic Impeller Solar Deep Well Pump
