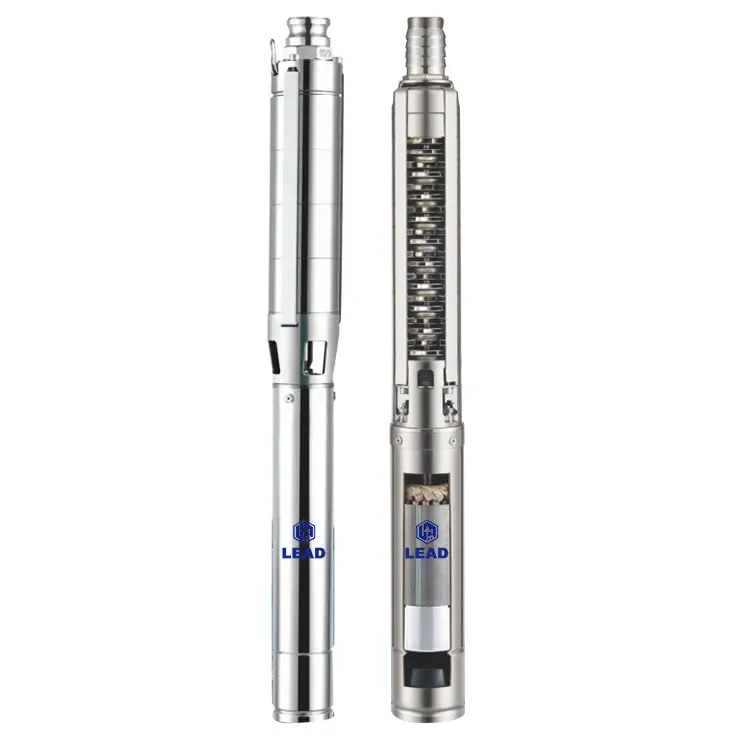

High Speed Brushless SS Solar Deep Well Pump

The High Speed Brushless SS Solar Deep Well Pump is a cutting-edge product in the range of high speed brushless solar deep well pumps. It has been developed to withstand the most challenging conditions, combining a rugged stainless steel impeller with state-of-the-art brushless motor technology for excellent durability and high efficiency. Relying on solar energy as a drive mechanism, it can operate reliably in areas with limited power, making it the first choice for deep well applications. With solar energy as the power source, it can operate stably even in areas with insufficient power supply, making it the most ideal choice for deep well operations.

Send Inquiry

Product Description

High Speed Brushless SS Solar Deep Well Pump

Key features

High-speed brushless motor: High power output, while keeping energy consumption in a minimum range.

Stainless steel impeller: The excellent corrosion resistance and long service life of stainless steel ensure consistent performance in challenging environments.

Solar power: Both environmentally friendly and economical, especially suitable for deep well operations in remote areas.

Deep well technology: The ability to extract water from depths of more than 150 metres.

Low maintenance: Designed for easy operation, it can effectively reduce the time spent by equipment being unused.

Applications

Large-scale agricultural irrigation

Construction of community water supply network

Mining operation

Construction site

Emergency water supply demand in disaster area

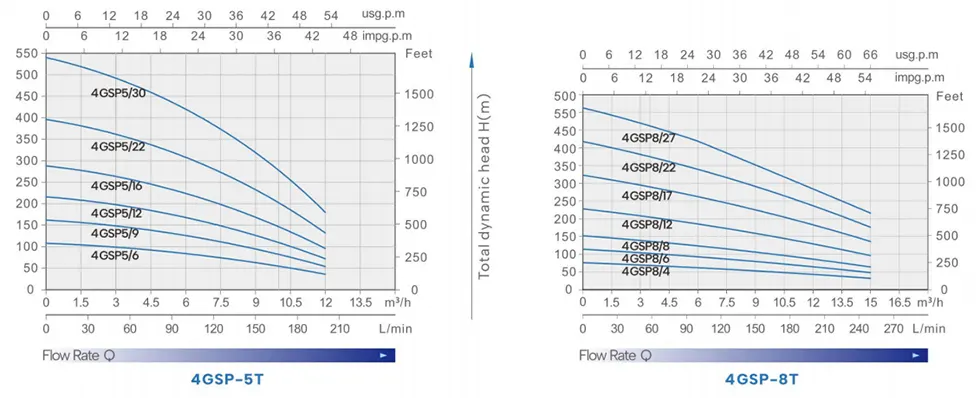

4GSP5	kW	V	m³/h	0	3	5	6	8	10	12	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
4GSP5	kW	V	m³/h	0	3	5	6	8	10	12	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weigh	Motor outer diameter (mm)
4GSP5-87/6	2.2	380	Head (m)	108	99	87	84	69	48	36	1½''/2"	276	291	567	2.5	6.7	8.3	100
4GSP5-131/9	3	380		162	149	131	126	104	72	54	1½''/2"	339	301	640	3.1	7.3	10.3	100
4GSP5-174/12	4	380		216	198	174	168	138	96	72	1½''/2"	402	331	733	3.7	8.7	12.2	100
4GSP5-232/16	5.5	380		288	264	232	224	184	128	96	1½''/2"	486	371	857	4.5	10.8	15.0	100
4GSP5-319/22	7.5	380		396	363	319	308	253	176	132	1½''/2''	612	456	1068	5.7	14.8	20.5	100
4GSP5-435/30	11	380		540	495	435	420	345	240	180	1½''/2"	780	496	1276	7.3	16.5	23.9	100

4GSP8	kW	V	m³/h	0	5	6	8	10	12	15	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
4GSP8	kW	V	m³/h	0	5	6	8	10	12	15	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weigh	Motor outer diameter (mm)
4GSP8-56/4	2.2	380	Head (m)	76	64	62	56	44	40	32	2"	260	291	551	2.1	6.7	7.9	100
4GSP8-84/6	3	380		114	96	93	84	66	60	48	2"	315	301	616	2.6	7.3	9.8	100
4GSP8-112/8	4	380		152	128	124	112	88	80	64	2"	370	331	701	3.0	8.7	11.5	100
4GSP8-168/12	5.5	380		228	192	186	168	132	120	96	2"	480	371	851	3.8	10.8	14.3	100
4GSP8-238/17	7.5	380		323	256	264	238	187	170	136	2*	618	456	1074	4.9	16.5	19.7	100
4GSP8-308/22	11	380		418	352	341	308	242	220	176	2"	755	496	1251	5.9	16.6	22.5	100
4GSP8-378/27	15	380		513	432	419	378	297	270	216	2"	892	536	1428	6.9	18.3	25.2	100

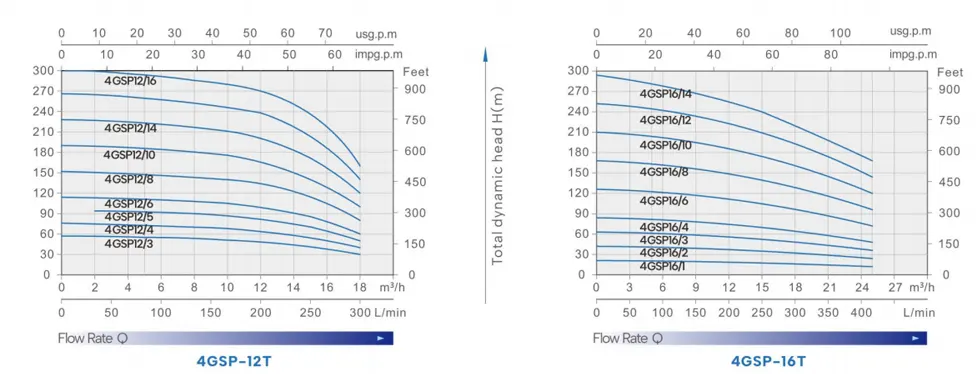

4GSP12	kW	V	m³/h	0	5	8	10	12	15	18	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
4GSP12	kW	V	m³/h	0	5	8	10	12	15	18	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
4GSP12-51/3	2.2	380	Head (m)	57	53	52	51	51	39	30	2*	276	291	567	2.1	6.7	7.9	100
4GSP12-68/4	3	380		76	70	69	68	68	52	40	2	318	301	619	2.4	7.3	9.6	100
4GSP12-85/5	4 1	380		95	88	86	85	85	65	50	2	360	331	691	2.7	8.7	11.2	100
4GSP12-102/6	5.5	380		114	105	103	102	102	78	60	2*	402	371	773	3.0	10.8	13.5	100
4GSP12-136/8	7.5	380		152	140	138	137	136	104	80	2"	486	456	942	3.5	14.8	18.3	100
4GSP12-170/10	11	380		190	175	172	171	170	130	100	2*	570	496	1066	4.1	16.5	20.7	100
4GSP12-204/12	15	380		228	210	206	205	204	156	120	2"	654	536	1190	4.6	18.3	22.7	100
4GSP12-238/14	18.5	380		266	245	241	239	238	182	140	2"	738	556	1294	5.2	19.	24.7	100
4GSP12-272/16	22	380		304	280	275	273	272	208	160	2"	822	596	1418	5.8	20.7	26.5	100

4GSP16	kW	V	m³/h	0	8	10	16	18	20	25	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
4GSP16	kW	V	m³/h	0	8	10	16	18	20	25	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
4GSP16-17/1	2.2	380	Head (m)	21	19	18	17	16	15	12	2*	192	291	483	1.8	6.7	7.6	100
4GSP16-34/2	3	380		42	38	37	34	32	30	24	2	234	301	535	2.2	7.3	9.4	100
4GSP16-51/3	4	380		63	57	56	51	48	45	36	2"	276	331	607	2.6	8.7	11.1	100
4GSP16-68/4	5.5	380		84	76	74	68	64	60	48	2	318	371	689	3.1	10.8	13.6	100
4GSP16-102/6	7.5	380		126	114	111	102	96	90	72	2"	402	456	858	4.0	14.8	18.8	100
4GSP16-136/8	11	380		168	152	148	136	128	120	96	2*	486	496	982	4.9	16.5	21.5	100
4GSP16-170/10	15	380		210	190	185	170	160	150	120	2*	570	536	1106	5.8	18.3	23.9	100
4GSP16-204/12	18.5	380		252	228	222	204	192	180	144	2*	654	556	1210	6.7	19.5	26.2	100
4GSP16-238/14	22	380		294	266	259	238	224	210	168	2"	738	596	1334	7.6	20.7	28.3	100

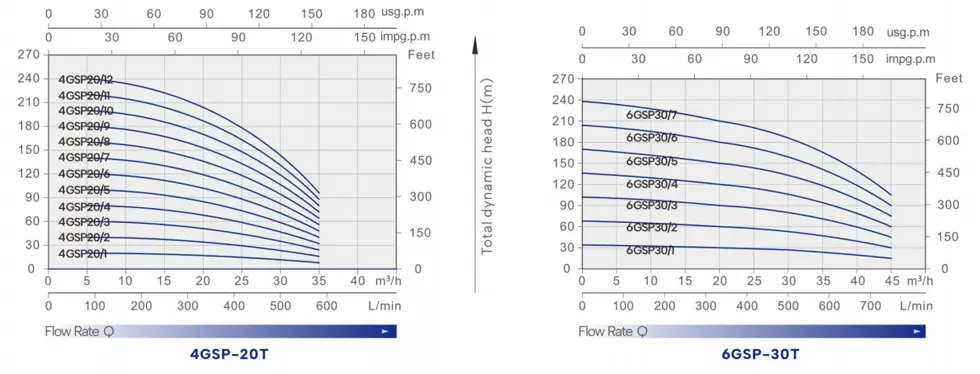

4GSP20	kW	V	m³/h	0	10	15	20	25	30	35	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
4GSP20	kW	V	m³/h	0	10	15	20	25	30	35	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
4GSP20-17/1	3	380	Head (m)	21	19	18	17	14	11	8	2"	250	301	551	2.5	7.3	9.8	100
4GSP20-34/2	4	380		42	38	36	34	28	22	16	2"	315	331	646	3.3	8.7	12	100
4GSP20 1/3	5.5	380		63	57	54	51	42	33	24	2"	380	371	751	4.1	10.8	14.9	100
4GSP20-68/4	7.5	380		84	76	72	68	56	44	32	2"	445	456	901	4.8	14.8	19.6	100
4GSP20-85/5	11	380		105	95	90	85	70	55	40	2"	510	496	1006	5.6	16.5	22.1	100
4GSP20-102/6	11	80		126	114	108	102	84	66	48	2"	575	496	1071	6.4	16.5	22.9	100
4GSP20-119/7	15	380		147	133	126	119	98	77	56	2	640	536	1176	7.2	18.3	25.5	100
4GSP20-136/8 4GSP20-153/9	15	380		168	152	144	136	112	88	64	2"	705	536	1241	7.9	18.3	26.2	100
4GSP20-136/8 4GSP20-153/9	18.5	380		189	171	162	153	126	99	72	2"	770	556	1326	8.7	19.5	28.2	100
4GSP20-170/10	18.5	380		210	190	180	170	140	110	80	2"	835	556	1391	9.5	19.5	29	100
4GSP20-187/11	22	380		231	209	198	187	154	121	88	2"	900	596	1496	10.3	20.7	31.0	100
4GSP20-204/12	22	380		252	228	216	204	168	132	96	2"	965	596	1561	11.1	20.7	31.8	100

6GSP30	kW	V	m³/h	0	20	25	30	3 6	42	45	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
6GSP30	kW	V	m³/h	0	20	25	30	3 6	42	45	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
6GSP30-27/1	4	380	Head (m)	34	30	29	27	23	18	15	21/2"/3"	316	331	647	3.2	8.7	11.9	100
6GSP30-53/2	5.5	380		68	60	58	53	46	38	30	21/2"/3"	361	371	732	4.4	10.8	15.2	100
6GSP30-80/3	7.5	380		102	90	87	80	69	57	45	21/2"/3	406	456	862	5.5	14.8	20.3	100
6GSP30-106/4	11	380		136	120	116	106	92	76	60	21/2"/3"	451	496	947	6.6	16.5	23.1	100
6GSP30-133/5	15	380		170	150	145	133	115	95	75	21/2"/3"	496	536	1032	7.7	18.3	26	100
6GSP30-159/6	18.5	380		204	180	174	159	138	114	90	21/2"/3”	541	556	1097	8.9	19.5	28.4	100
6GSP30-186/7	22	380		238	210	203	186	161	133	105	21/2"/3"	586	596	1182	1 0.1	20.7	30.8	100

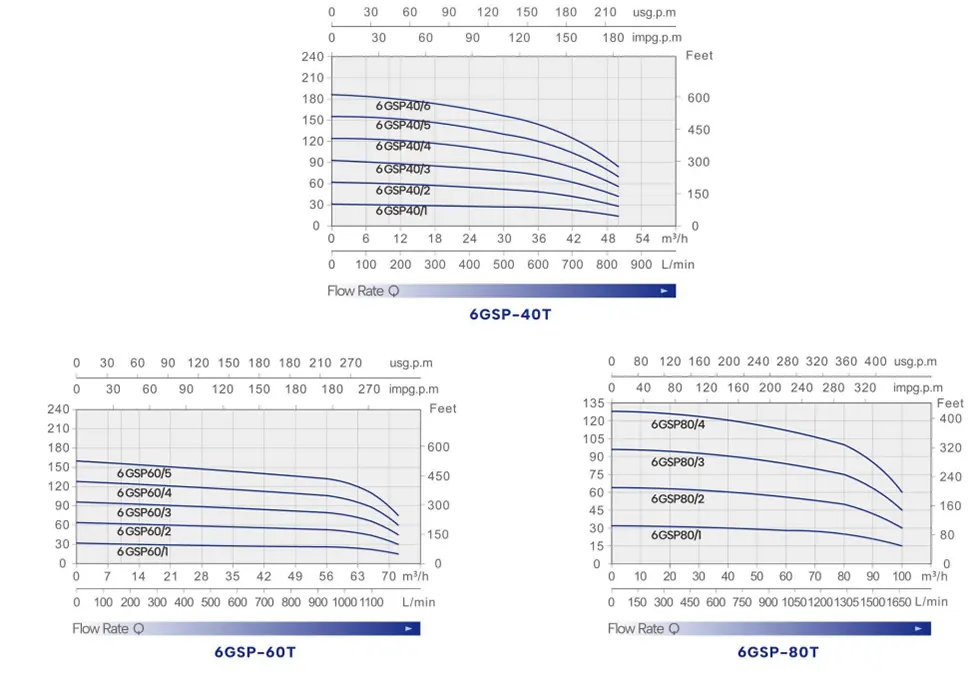

6GSP40	kW	V	m³/h	0	20	30	35	40	45	50	Outlet Diameter	length(mm)			Wpi ght(kg)			Motor outer diameter (mm)
6GSP40	kW	V	m³/h	0	20	30	35	40	45	50	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
6GSP40-24/1	5.5	380	Head (m)	31	27	26	25	24	19	14	21/2"/3"	333	371	704	3.5	10.8	14.3	100
6GSP40-48/2 6GSP40-72/3	7.5 11	380 380		62 93	54 81	52 78	50 75	48 72	38 57	28 42	21/2"/3" 21/2"/3"	395 457	456 496	851 953	4.8 6.2	14.8 16.5	19.6 22.7	100 100
6GSP40-96/4	15	380		124	108	104	100	96	76	56	21/2"/3"	519	536	1055	6	18.3	25.9	100
6GSP40-120/5	18.5	380		155	135	130	125	120	95	70	2% 1/2"/3"	581	556	1137	9.0	19.5	28.5	100
6GSP40-144/6	22	380		186	162	156	150	144	114	84	2%/2"/3"	643	596	1239	10.4	20.7	31.1	100

6GSP60	kW	V	m³/h	0	30	40	50	60	66	72	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
6GSP60	kW	V	m³/h	0	30	40	50	60	66	72	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
6GSP60-26/1	7.5	380	Head (m)	32	28	28	27	26	22	15	3"/4"	367	456	823	4.1	14.8	18.9	100
6GSP60-52/2	11	380		64	57	56	54	52	44	30	3"/4"	463	496	959	6.0	16.5	22.5	100
6GSP60-78/3	15	380		96	86	84	81	78	66	45	3"/4"	559	536	1095	8.0	18.3	26.3	100
6GSP60-104/4	18.5	380		128	114	112	108	104	88	60	3"/4	655	556	1211	9.9	19.5	29.4	100
6GSP60-130/5	22	380		160	143	140	135	130	110	75	3"/4"	751	596	1347	11.8	20.7	32.5	100

6GSP80	kW	V	m³/h	0	40	60	70	80	90	100	Outlet Diameter	length(mm)			weight(kg)			Motor outer diameter (mm)
6GSP80	kW	V	m³/h	0	40	60	70	80	90	100	Outlet Diameter	pump body	electrical machinery	Total length	pump body	electrical machinery	Total weight	Motor outer diameter (mm)
6GSP80-25/1	11	380		32	28	28	27	25	22	15	4"	384	496	880	7.0	16.5	23.5	100
6GSP80-50/2	15	380	Head	64	57	56	54	50	44	30	4"	497	536	1033	9.0	18.3	27.3	100
6GSP80-75/3	18.5	380	(m)	96	86	84	81	75	66	45	4"	610	556	1166	11.0	19.5	30.5	100
6GSP80-100/4	22	380		128	115	112	108	100	88	60	4"	723	596	1319	13.0	20.7	33.7	100
