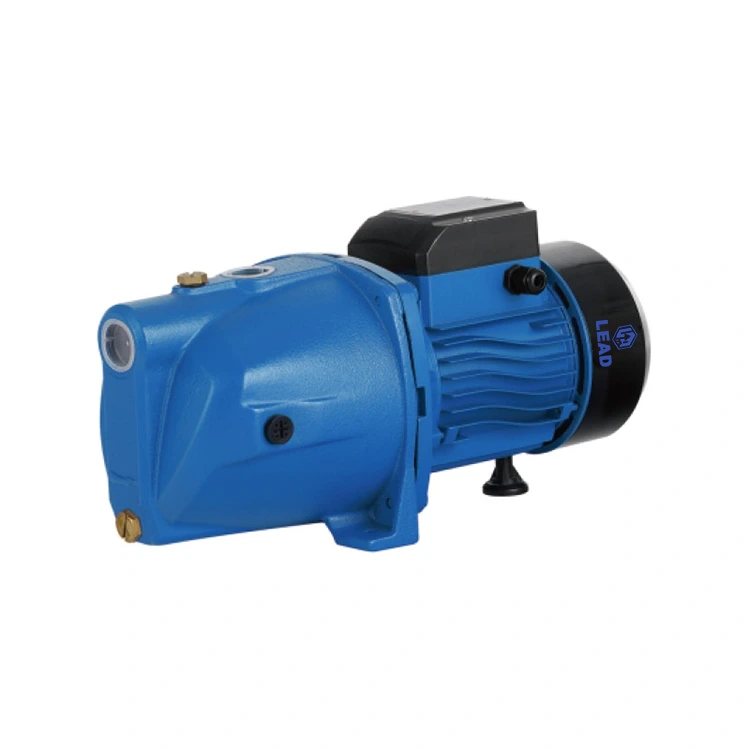

You can purchase JET-A Water Suction Pump For Well from LEAD PUMP with confidence, as we are a proficient producer of high-quality JET-A Water Suction Pump For Well. We promise to provide you with the best after-sale service and prompt delivery.
• Suction lift up to 8m
• Clean water, non-corrosion liquid
• Fluid temperature up to 40 °C
• Maximum ambient temperature 40 °C
• Brass impeller
• 100% Copper winding
• Single/Three-phase, 50/60Hz (as customized)
• Stainless steel mechanical seal (graphite to ceramic)
• Protection IP44
• C&U bearing or local bearing
• Thermal overload protector
• Anti-rust shaft (Hi-Cr plated or welded stainless steel)
|

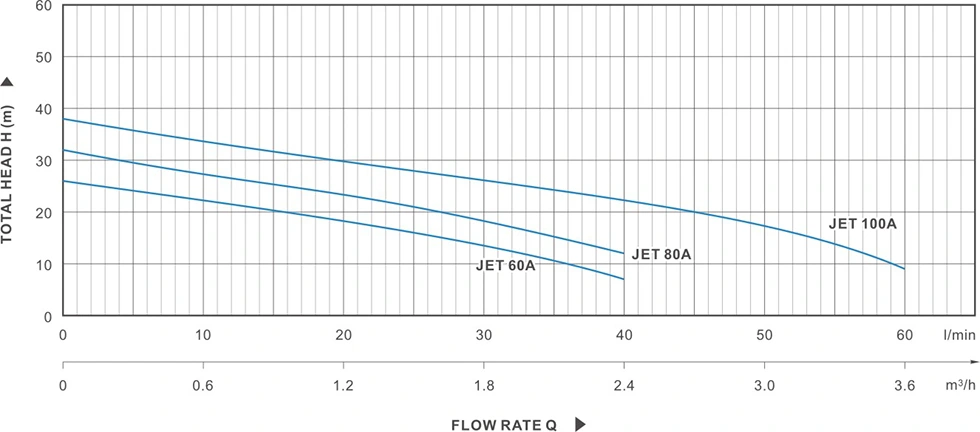

Model |
Inlet/Outlet |
Power |
Q(m³/h) |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3.6 |
|
|
Single phase |
Inch |
kW | HP |
(L/mln) |
0 |
10 |
20 |
30 |
40 |
60 |
|
JET 60A |
1"x1 |
0.40 | 0.5 |
H(m) |
36 |
26 |
20 |
16 |
7 |
- |
| JET 80A |
1"x1 |
0.60 | 0.8 |
42 |
32 |
26 |
20 |
12 |
- |
|
| JET 100A |
1"x1 |
0.75 | 1.0 | 47 | 38 |
31.5 |
28.5 |
24 |
9 |
|
