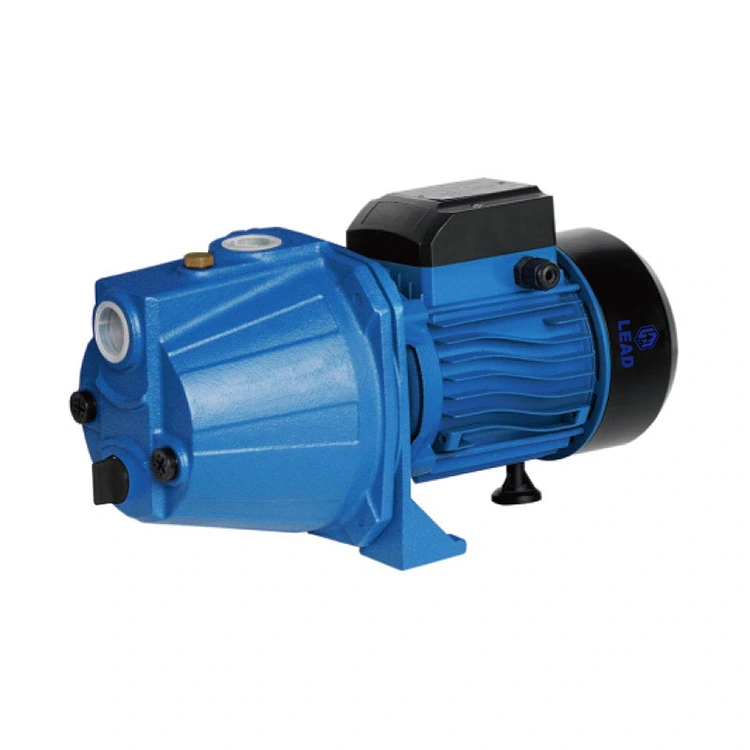

JET-S PPO Impeller Self Primming Pump

One of the Chinese companies offering JET-S PPO Impeller Self Primming Pump for wholesale is LEAD PUMP. For you, we can offer better pricing and competent service. Should you be intrigued by JET-S PPO Impeller Self Primming Pump kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance.OneWe adhere to the standard of conscience-priced, devoted service, so you can feel secure.LEAD PUMP JET electric self priming pump is widely used in shallow well, borehole well, river and etc for howsehold water supply.

Send Inquiry

Product Description

OPERATING LIMITS

As one of professional manufacturer in China, LEAD PUMP would like to provide you JET-S PPO Impeller Self Primming Pump. And we will offer you the best after-sale service and timely delivery.
• Suction lift up to 8m
• Clean water, non-corrosion liquid
• Fluid temperature up to 40 °C
• Maximum ambient temperature 40 °C

STRUCTURAL CHARACTERISTICS

• Brass impeller
• 100% Copper winding
• Single/Three-phase, 50/60Hz (as customized)
• Stainless steel mechanical seal (graphite to ceramic)
• Protection IP44
• C&U bearing or local bearing
• Thermal overload protector
• Anti-rust shaft (Hi-Cr plated or welded stainless steel)

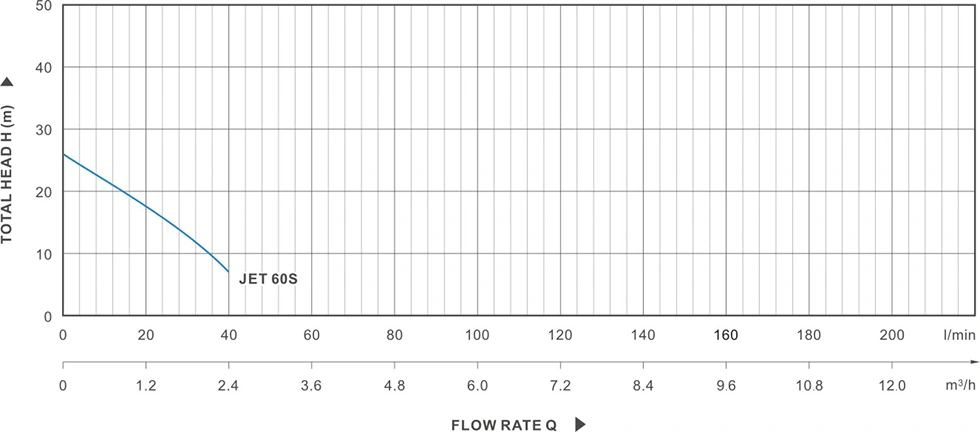

PERFORMANCE DATA AT n=2900 rpm/min

Performance parameter

Model	Inlet/Outlet	Power		Q(m³/h)	0	0.6	1.2	1.8	2.4	3.6	4.8	7.2	9.6	12
Single phase	Inch	kW	HP	(L/min)	0	10	20	30	10	60	80	120	160	200
JET 60S	1"x1"	0.4	0.5	H(m)	36	26	20	16	7	-	-	-	-	-

Hot Tags: JET-S PPO Impeller Self Primming Pump
