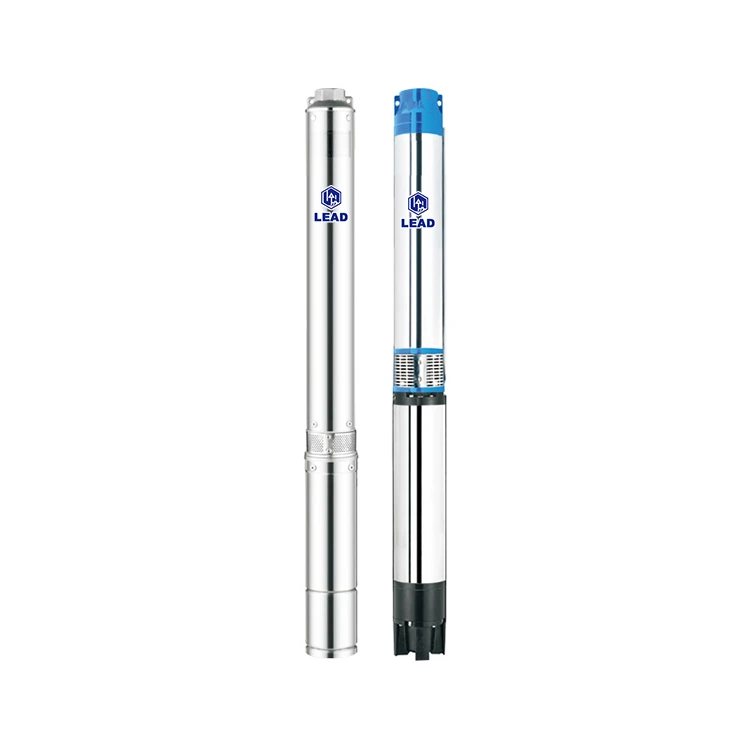

LEAD PUMP is a reputable Chinese manufacturer and supplier with years of experience specializing in Oil Cooled QJD Submersible Deep Well Pump Q production. We hope to establish commercial ties with you.
LEAD PUMP is one of China manufacturer & supplier who mainly produces Oil Cooled QJD Submersible Deep Well Pump Q with many years of experience. Hope to build business relationship with you.
• For water supply from wells or reservoirs
• For domestic use, for civil and industrial applications
• For garden use and irrigation
MOTORAND PUMP
• Rewindable motor or Full obturated screen motor
• Three-phase: 380V-415V/50Hz
• Single-phase: 220V-240V/50Hz
• Equip with start control box or digital auto-control box
• Pumps are designed by casing stressed
• NEMA dimension standards
• Curve tolerance according to ISO 9906
WORKING CONDITIONS
• Maximum fluid temperature up to +35℃.
• Maximum sand content: 0.25%.
• Maximum immersion: 30m.
• Minimum well diameter: 6".

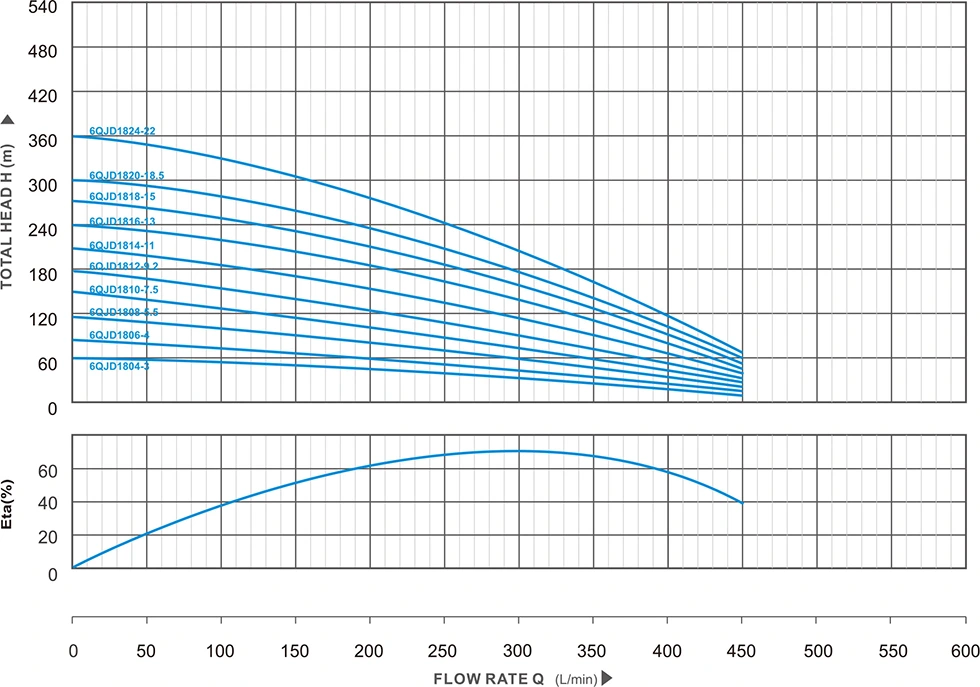

PERFORMANCE DATA AT n=2900 rpm/min
Performance parameter
Voltage (V/HZ)
Inlet/Outlet
Power
(m3/h)
0
3
6
9
12
15
18
21
24
27
(380-415/50)
Inch
KW
HP
(L/min)
0
50
100
150
200
250
300
350
400
450
6QJD1804-3
2 1/2"
3.0
4.0
Head
(m)
60
57
54
52
48
43
37
30
21
12
6QJD1806<4
2 1/2"
4.0
5.5
89
86
82
78
72
65
56
45
31
18
6QJD1808-5.5
2 1/2"
5.5
7.5
119
114
109
104
96
86
75
60
42
24
6QJD1810-7.5
2 1/2"
7.5
10
149
143
136
130
120
108
93
74
52
30
6QJD1812-9.2
2 1/2"
9.2
12.5
179
171
163
156
144
129
112
89
63
36
6QJD1814-11
2 1/2"
11
15
209
200
191
182
168
151
131
104
73
42
6QJD1816-13
2 1/2"
13
17.5
239
228
218
208
192
172
149
119
84
48
6QJD1818-15
2 1/2"
15
20
268
257
245
233
216
194
168
134
94
54
6QJD1820-18.5
2 1/2"
18.5
25
298
285
272
259
240
215
186
149
105
60
6QJD1 824-22
2 1/2"
22.0
30
358
342
327
311
288
258
224
179
126
72
