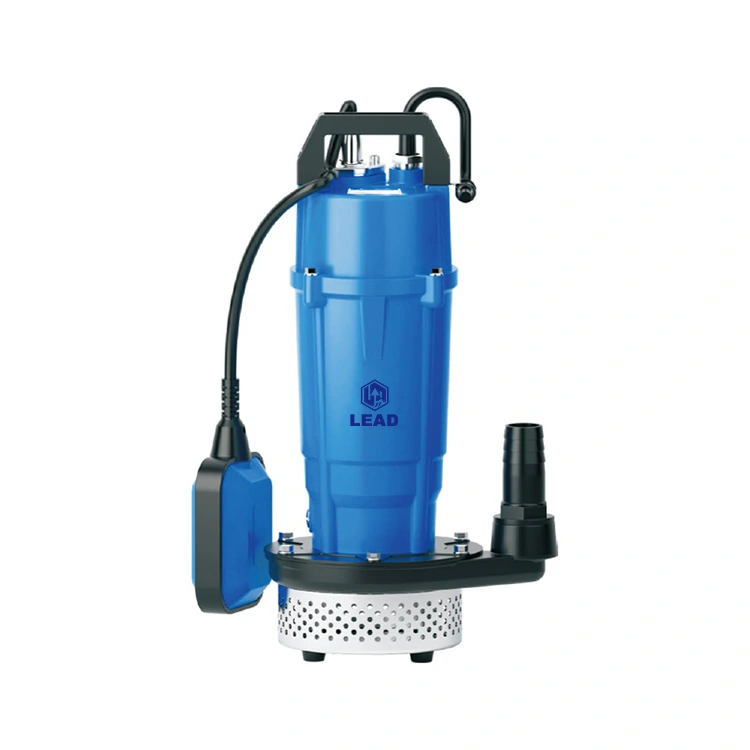

As a professional high quality QDX-B Submersible Potable Water Pump manufacturer, you can rest assured to buy QDX-B Submersible Potable Water Pump from our factory and we will offer you the best after-sale service and timely delivery.
• PH level from 6.5-8.5
• Maximum sand content is 0.1%. Passage of suspended
• Solids up to 0. 2mm
• Voltage fluctuation range:0.9-1.1 times of the rated value
• Immersion depth from 0. 5m-5m
• Max medium temperature+40°C
• Max ambient temperature+40°C
• Two-pole induction motor
• Single phase/three phase, 50/60hz (on demand)
• Thermal protector for single phase
• Insulation class: B
• Protection class:IPX8
• Pump body: Cast iron
• Motor housing: Aluminum/iron
• Impeller: Aluminum
• Motor wire: Copper
• Mechanical seal: Ceramic&Graphite
• Shaft: 45#steel/stainless steel
|
Model |
Inlet/Outlet |
Power |
Max.Diving depth |
Rated.Flow |
Rated. Head |
|
|
Single phase |
Inch |
KW |
HP |
m |
m3/h |
m |
|
QDX-B 1.5-12-0.25 |
1" |
0.25 |
0.37 |
5 |
1.5 |
12 |
|
QDX-B 1.5-17-0.37 |
1" |
0.37 | 0.5 | 5 | 1.5 | 17 |
|
QDX-B 1.5-25-0.55 |
1" |
0.55 |
0.75 |
5 |
1.5 |
25 |
| QDX-B 10-12-0.55 | 1" | 0.55 | 0.75 | 5 | 10 |
12 |
| QDX-B 10-16-0.75 | 1" | 0.75 | 1 | 5 | 10 |
16 |
|
QDX-B 1.5-32-0.75 |
1" | 0.75 | 1 | 5 | 1.5 | 32 |
|
QDX-B 3-30-1.1 |
1" | 1.1 | 1.5 | 5 | 3 | 30 |
