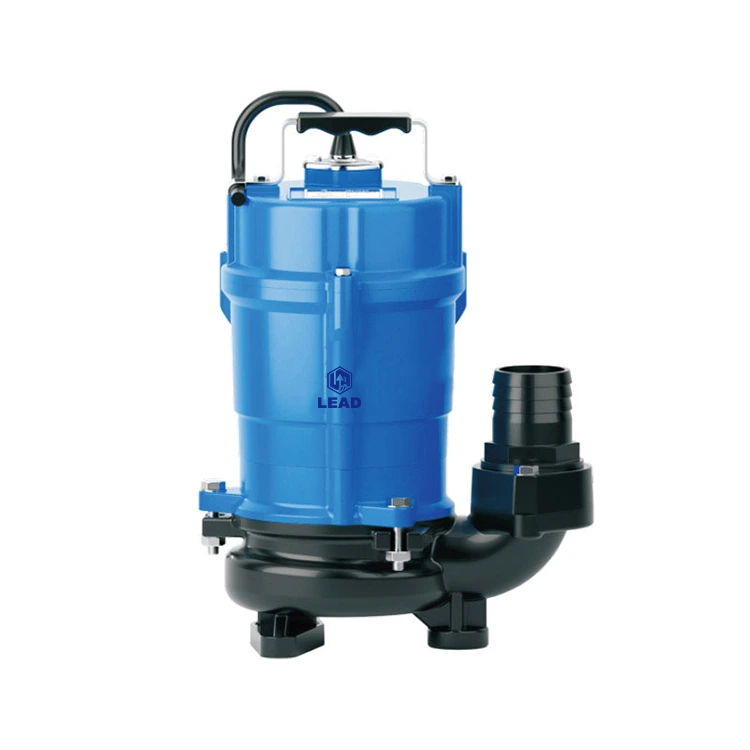

LEAD PUMP as a professional high quality VS Submersible Pump for Dirty and Clean Water manufacturer, you can rest assured to buy VS Submersible Pump for Dirty and Clean Water from our factory and we will offer you the best after-sale service and timely delivery.
• PH level from 6.5-8.5
• Maximum sand content is 0.1%. Passage of suspended
• Solids up to 0. 2mm
• Voltage fluctuation range:0.9-1.1 times of the rated value
• Immersion depth from 0. 5m-5m
• Max medium temperature+40°C
• Max ambient temperature+40°C
• Two-pole induction motor
• Single phase/three phase, 50/60hz (on demand)
• Thermal protector for single phase
• Insulation class: B
• Protection class:IPX8
• Pump body: Cast iron
• Motor housing: Aluminum/iron
• Impeller: Aluminum
• Motor wire: Copper
• Mechanical seal: Ceramic&Graphite
• Shaft: 45#steel/stainless steel
|
Model |
Inlet/Outlet |
Power |
Through the particles |
Max.Diving depth |
Max.Flow |
Max.Head |
|
|
Single phase |
Inch |
KW |
HP |
mm |
m |
m3/h |
m |
|
VS2.4S |
2" | 0.55 | 0.75 | 10 | 5 | 16 | 12 |
