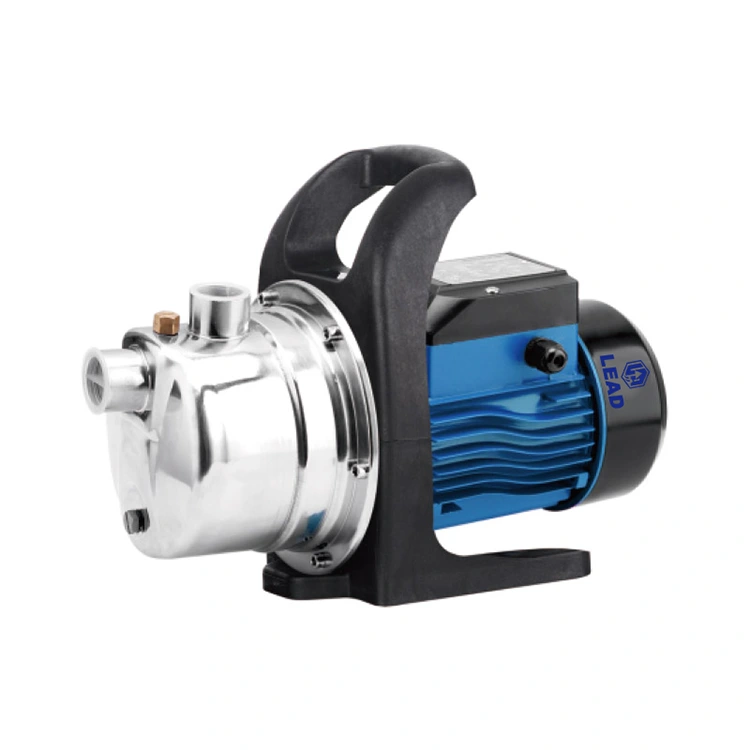

As one of professional high quality STPC Self Priming Jet Pump manufacturer, you can rest assured to buy STPC Self Priming Jet Pump from LEAD PUMP and we will offer you the best after-sale service and timely delivery.
• Suction lift up to 8m
• Clean water, non-corrosion liquid
• Fluid temperature up to 40 °C
• Maximum ambient temperature 40 °C
• Brass impeller
• 100% Copper winding
• Single/Three-phase, 50/60Hz (as customized)
• Stainless steel mechanical seal (graphite to ceramic)
• Protection IP44
• C&U bearing or local bearing
• Thermal overload protector
• Anti-rust shaft (Hi-Cr plated or welded stainless steel)
|

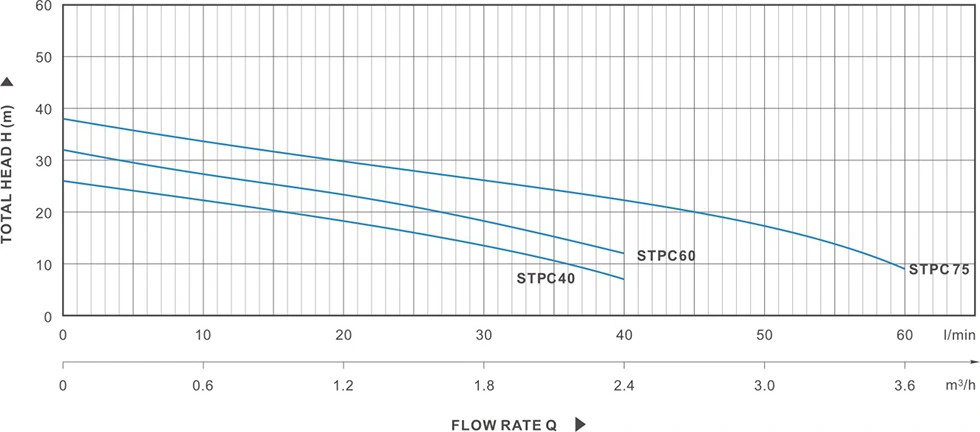

Model |
Inlet/Outlet |
Power |
Q(m³/h) |
0 |
0.6 |
1.2 |
1.8 |
2.4 |
3.6 |
|
|
Single phase |
Inch |
kW | HP |
(L/mln) |
0 |
10 |
20 |
30 |
40 |
60 |
| STPC 40 |
1"x1 |
0.40 |
0.5 |
H(m) |
36 | 26 | 20 | 16 | 7 | - |
| STPC 60 |
1"x1 |
0.60 |
0.8 |
42 |
32 |
26 |
20 |
12 |
- |
|
| STPC 75 |
1"x1 |
0.75 | 1.0 | 47 | 38 |
31.5 |
28.5 |
24 |
9 |
|
