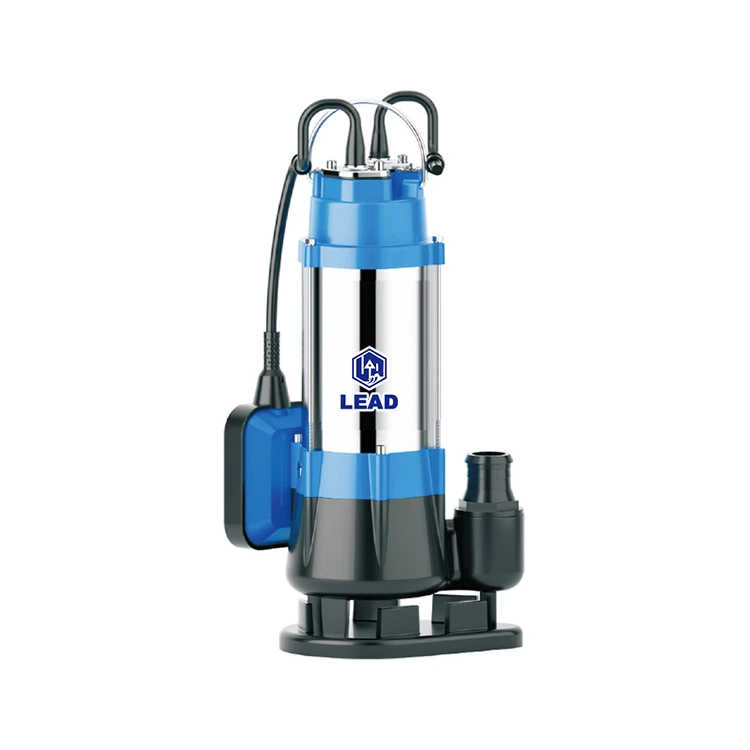

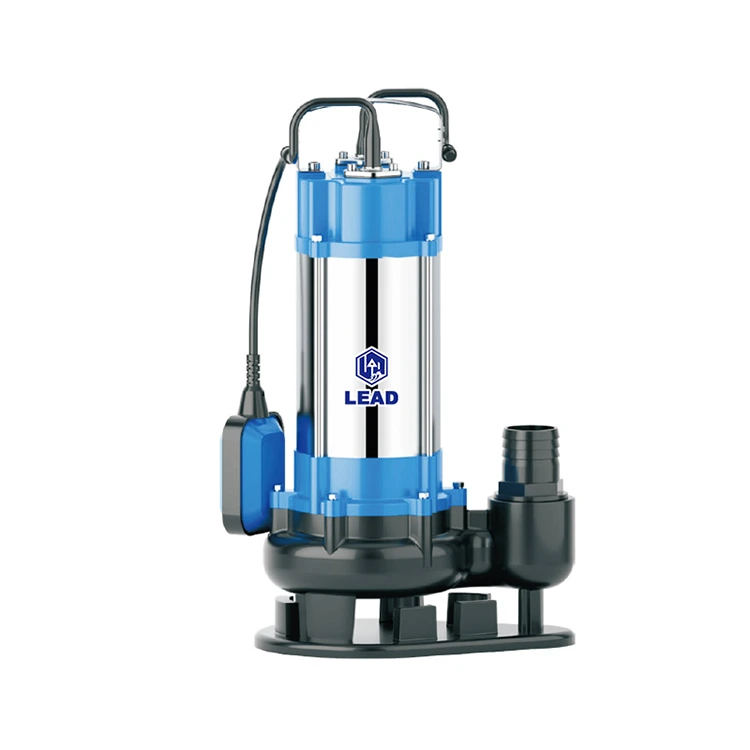

One of the Chinese companies offering 0.5-2HP 1.5-2 inch Submersible Sewage Pump for wholesale is LEAD PUMP. For you, we can offer better pricing and competent service. Should you be intrigued by 0.5-2HP 1.5-2 inch Submersible Sewage Pump, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance.OneWe adhere to the standard of conscience-priced, devoted service, so you can feel secure.
• Max. medium temperature+40° C
• Max. ambient temperature+40° C
• PH level from 4-10
• Maximum passage for suspended solids45
• Voltage fluctuation range: 0.9-1.1 times of the rated value
• Immersion depth from 0.5m- 5m
• Two-pole induction motor
• Single phase/three phase, 50/60hz (on demand)
• Thermal protector for single phase
• Insulation class: B
• Protection class:IPX8
• Pump body: Cast iron
• Motor housing: Stainless steel
• Impeller: Cast iron
• Motor wire: Copper
• Mechanical seal: Ceramic&Graphite
• Shaft: 45#steel/stainless steel
|
Model |
Inlet/Outlet |
Power |
Through the particles |
Max.Diving depth |
Max.Flow |
Max.Head |
|
|
Single phase |
Inch |
KW |
HP |
mm |
m |
m3/h |
m |
|
SWQD370F |
1.5" |
0.37 |
0.5 |
10 |
5 |
8.8 |
7 |
| SWQD550F | 2" | 0.55 | 0.75 | 15 | 5 | 12 |
7 |
| SWQD750F | 2" | 0.75 | 1 | 15 | 5 | 14 |
9 |
|
SWQD1100F |
2" |
1.1 |
1.5 | 15 |
5 |
16.0 | 12 |
|
SWQD1500F |
2" |
1.5 | 2.0 | 15 | 5 | 20.0 | 17 |
