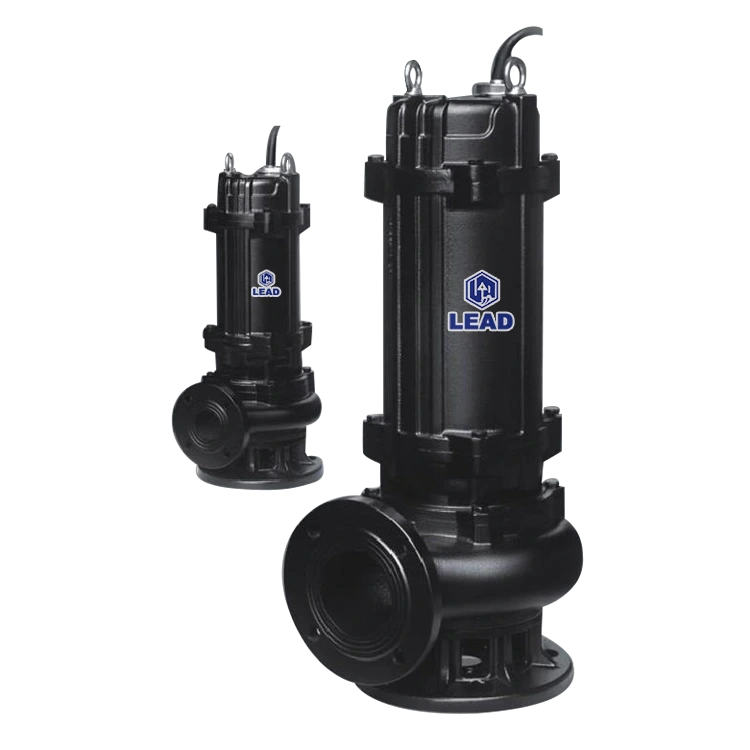

High-Power Sewage Pump

High-Power Sewage Pump is a proficient manufacturer and supplier of High-Power Sewage Pump in China. Contact us for the best price!

Send Inquiry

Product Description

LEAD PUMP is one of professional leader China High-Power Sewage Pump manufacturer with high quality and reasonable price. Welcome to contact us.

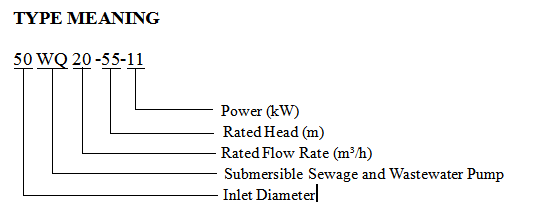

TYPE MEANING

APPLICATIONS

Widely applied in various fields, primarily used for high-performance water supply, engineering and construction, farmland irrigation, sewage treatment, mineral resource development, water diversion projects, and other similar applications.

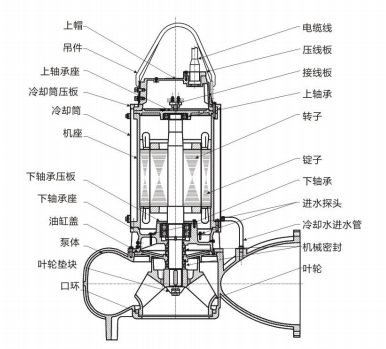

SEWAGE PUMP STRUCTURE

Product Model				Flow	Head	Power	Voltage	Speed	Pipe Connection
Outlet	Flow	Head	Power	M³/h	M	KW	V	r/min	INCH
25WQ5-20-0.75				5	20	0.75	380	2900	1
32WQ6-18-0.75				6	18	0.75	380	2900	1.2
40WQ7-15-0.75				7	15	0.75	380	2900	1.5
50WQ10-10-0.75				10	10	0.75	380	2900	2
65WQ15-7-0.75				15	7	0.75	380	2900	2.5
25WQ5-22-1.1				5	22	1.1	380	2900	1
32WQ6-20-1.1				6	20	1.1	380	2900	1.2
40WQ7-18-1.1				7	18	1.1	380	2900	1.5
50WQ10-12-1.1				10	12	1.1	380	2900	2
65WQ15-9-1.1				15	9	1.1	380	2900	2.5
50WQ10-16-1.5				10	16	1.5	380	2900	2
65WQ20-10-1.5				20	10	1.5	380	2900	2.5
80WQ40-7-1.5				40	7	1.5	380	2900	3
100WQ50-5-1.5				50	5	1.5	380	2900	4
50WQ9-22-2.2				9	22	2.2	380	2900	2
65WQ20-15-2.2				20	15	2.2	380	2900	2.5
80WQ40-10-2.2				40	10	2.2	380	2900	3
100WQ50-7-2.2				50	7	2.2	380	2900	4
50WQ15-25-3				15	25	3	380	2900	2
65WQ25-18-3				25	18	3	380	2900	2.5
80WQ45-12-3				45	12	3	380	2900	3
100WQ60-9-3				60	9	3	380	2900	4
50WQ15-30-4				15	30	4	380	2900	2
65WQ25-25-4				25	25	4	380	2900	2.5
80WQ40-16-4				40	16	4	380	2900	3
100WQ60-12-4				60	12	4	380	2900	4
50WQ15-40-5.5				15	40	5.5	380	2900	2
65WQ25-30-5.5				25	30	5.5	380	2900	2.5
80WQ40-22-5.5				40	22	5.5	380	2900	3
100WQ60-18-5.5				60	18	5.5	380	2900	4

Product Model				Flow	Head	Power	Voltage	Speed	Pipe Connection
Outlet	Flow	Head	Power	M³/h	M	KW	V	r/min	INCH
150WQ100-7-5.5				100	7	5.5	380	2900	6
50WQ20-45-7.5				20	45	7.5	380	2900	2
65WQ30-35-7.5				30	35	7.5	380	2900	2.5
80WQ40-28-7.5				40	28	7.5	380	2900	3
100WQ65-22-7.5				65	22	7.5	380	2900	4
150WQ100-12-7.5				100	12	7.5	380	2900	6
50WQ20-55-11				20	55	11	380	2900	2
65WQ30-40-11				30	40	11	380	2900	2.5
80WQ60-30-11				60	30	11	380	2900	3
100WQ80-25-11				80	25	11	380	2900	4
150WQ100-20-11				100	20	11	380	2900	6
150WQ120-15-11				120	15	11	380	2900	6
200WQ180-11-11				180	11	11	380	2900	8
50WQ20-70-15				20	70	15	380	2900	2
65WQ30-60-15				30	60	15	380	2900	2.5
80WQ60-40-15				60	40	15	380	2900	3
100WQ80-35-15				80	35	15	380	2900	4
150WQ100-30-15				100	30	15	380	2900	6
150WQ120-25-15				120	25	15	380	2900	6
200WQ180-15-15				180	15	15	380	2900	8
50WQ20-80-18.5				20	80	18.5	380	2900	2
65WQ30-68-18.5				30	68	18.5	380	2900	2.5
80WQ60-45-18.5				60	45	18.5	380	2900	3
100WQ80-40-18.5				80	40	18.5	380	2900	4
150WQ100-36-185				100	36	18.5	380	2900	6
200WQ180-18-18.5				180	18	18.5	380	2900	8
50WQ20-90-22				20	90	22	380	2900	2
65WQ30-75-22				30	75	22	380	2900	2.5
80WQ60-50-22				60	50	22	380	2900	3
100WQ80-45-22				80	45	22	380	2900	4
150WQ100-40-22				100	40	22	380	2900	6
200WQ200-20-22				200	20	22	380	2900	8

Model				Pipe Connection	Speed
Outlet	Flow	Model Pipe	Power	INCH	r/min
MM	M³/H	M	KW
80WQ80-13-5.5				3	1450
100WQ110-10-5.5				4	1450
150WQ150-7-5.5				6	1450
80WQ80-20-7.5				3	1450
100WQ100-15-7.5				4	1450
150WQ145-9-7.5				6	1450
200WQ250-6-7.5				8	1450
100WQ100-25-11				4	1450
150WQ180-11-11				6	1450
200WQ300-7-11				8	1450
250WQ400-5-11				10	1450
100WQ100-30-15				4	1450
150WQ200-15-15				6	1450
200WQ250-11-15				8	1450
250WQ500-5-15				10	1450
100WQ100-35-18.5				4	1450
150WQ180-20-18.5				6	1450
200WQ250-15-18.5				8	1450
200WQ350-10-18.5				8	1450
250WQ500-7-18.5				10	1450
300WQ650-5-18.5				12	1450
100WQ100-40-22				4	1450
150WQ200-22-22				6	1450
200WQ300-16-22				8	1450
200WQ400-10-22				8	1450

Model				Pipe Connection	Speed
Outlet	Flow	Model Pipe	Power	INCH	r/min
MM	M³/H	M	KW
250WQ500-9-22				10	1450
300WQ650-7-22				12	1450
100WQ120-45-30				4	1450
150WQ180-30-30				6	1450
200WQ250-22-30				8	1450
250WQ500-12-30				10	1450
250WQ600-9-30				10	1450
300WQ800-7-30				12	1450
300WQ1000-6-30				12	980
350WQ1500-4-30				14	980
100WQ120-50-37				4	1450
150WQ200-35-37				6	1450
200WQ300-28-37				8	1450
200WQ350-25-37				8	1450
250WQ600-12-37				10	1450
300WQ800-9-37				12	1450
350WQ1000-6-37				14	1450
350WQ1100-6-37				14	980
400WQ1300-5-37				16	980
100WQ100-57-45				4	1450
150WQ200-40-45				6	1450
200WQ300-32-45				8	1450
200WQ400-25-45				8	1450
250WQ600-15-45				10	1450

Model				Pipe Connection	Speed
Outlet	Flow	Model Pipe	Power	INCH	r/min
MM	M³/H	M	KW
350WQ1200-8-45				14	1450
350WQ1300-8-45				14	980
400WQ1700-6-45				16	980
100WQ100-65-55				4	1450
150WQ180-50-55				6	1450
200WQ300-40-55				8	1450
200WQ400-30-55				8	1450
250WQ600-20-55				10	1450
300WQ800-15-55				12	1450
350WQ1000-10-55				14	1450
350WQ1100-10-55				14	980
400WQ1300-8-55				16	1450
400WQ1500-8-55				16	980
500WQ2200-5-55				20	740
100WQ120-75-75				4	1450
150WQ200-60-75				6	1450
200WQ350-45-75				8	1450
250WQ600-25-75				10	1450
300WQ800-20-75				12	1450
350WQ1000-15-75				14	1450
350WQ1500-12-75				14	980
400WQ1300-13-75				16	1450
400WQ1700-10-75				16	980
500WQ2000-8-75				20	980
500WQ2700-6-75				20	740

Model				Pipe Connection	Speed
Outlet	Flow	Model Pipe	Power	INCH	r/min
MM	M³/H	M	KW
100WQ120-85-90				4	1450
150WQ200-70-90				6	1450
200WQ300-60-90				8	1450
200WQ400-50-90				8	1450
250WQ600-30-90				10	1450
300WQ800-25-90				12	1450
350WQ1000-18-90				14	1450
350WQ1200-18-90				14	980
400WQ1300-16-90				16	1450
400WQ1500-15-90				16	980
500WQ2000-10-90				20	980
500WQ2500-8-90				20	740
600WQ3000-6-90				24	740
100WQ100-100-110				4	1450
150WQ180-80-110				6	1450
200WQ300-65-110				8	1450
250WQ600-40-110				10	1450
300WQ1000-25-110				12	1450
350WQ1300-20-110				14	1450
350WQ1600-16-110				14	980
400WQ1500-17-110				16	1450
400WQ1800-15-110				16	980
500WQ2500-10-110				20	980
500WQ3000-8-110				20	740
600WQ3200-7-110				24	980
600WQ3800-6-110				24	740

Model				Pipe Connection	Speed
Outlet et	Flow	Model Pipe	Power	INCH	r/min
MM	M³/H	M	KW
150WQ200-90-132				6	1450
200WQ400-75-132				8	1450
250WQ600-50-132				10	1450
300WQ800-36-132				12	1450
350WQ1100-28-132				14	1450
350WQ1500-20-132				14	980
400WQ1700-16-132				16	1450
400WQ2000-15-132				16	980
500WQ2800-10-132				20	980
500WQ3100-10-132				20	740
600WQ3700-8-132				24	980
600WQ4000-8-132				24	740
150WQ220-100-160				6	1450
200WQ400-85-160				8	1450
250WQ600-60-160				10	1450
300WQ800-40-160				12	1450
350WQ1000-35-160				14	1450
350WQ1200-35-160				14	980
400WQ1600-20-160				16	1450
400WQ1600-22-160				16	980
500WQ2600-16-160				20	980
500WQ3000-14-160				20	740
600WQ3700-10-160				24	980
600WQ4000-10-160				24	740
200WQ400-90-185				8	1450
250WO600-70-185				10	1450
300WQ900-40-185				12	1450
350WQ1100-38-185				14	1450

Model				Pipe Connection	Speed
Outlet	Flow	Model Pipe	Power	INCH	r/min
MM	M³/H	M	KW
400WQ1600-25-185				16	1450
400WQ2000-20-185				16	980
500WQ3000-15-185				20	980
600WQ3700-12-185				24	980
250WQ750-75-200				10	1450
300WQ1000-45-200				12	1450
350WQ1300-35-200				14	1450
400WQ1500-30-200				16	1450
400WQ2300-22-200				16	980
500WQ3500-15-200				20	980
600WQ4500-12-200				24	980
300WQ1100-45-250				12	1450
350WQ1500-36-250				14	1450
400WQ1800-30-250				16	1450
400WQ2200-28-250				16	980
500WQ3000-21-250				20	980
600WQ4000-18-250				24	980
300WQ1000-55-315				12	1450
350WQ1500-45-315				14	1450
400WQ2000-36-315				16	980
500WQ3500-25-315				20	980
600WQ4500-20-315				24	980
500WQ3000-35-400				20	980
600WQ5000-22-400				24	980
500WQ4000-32-550				20	980
600WQ5500-25-550				24	980

Hot Tags: High-Power Sewage Pump
