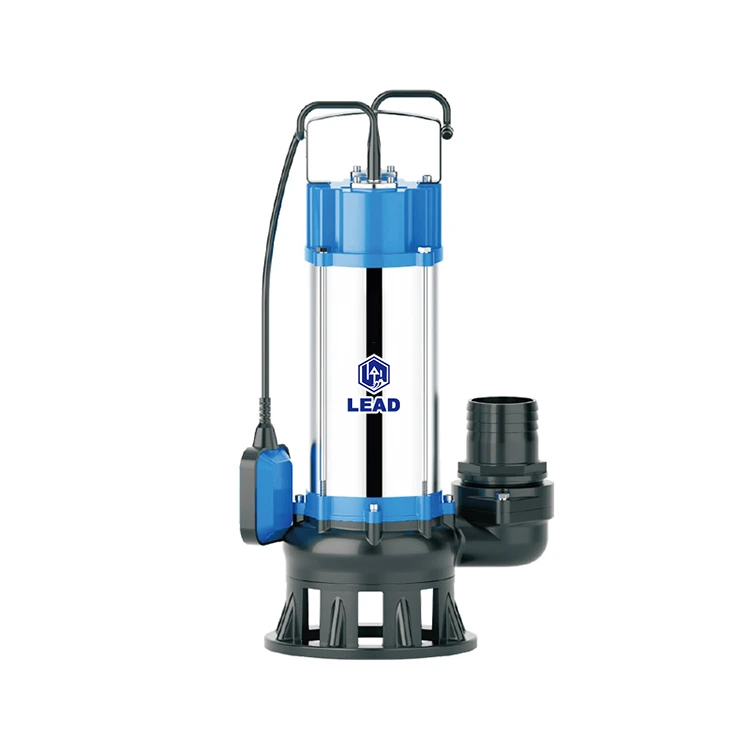

LEAD PUMP is one of professional China 3 and 4 Inch 2.2KW Submersible Sump Pump manufacturer and supplier, if you are looking for the 3 and 4 Inch 2.2KW Submersible Sump Pump, consult us now!
• Max. medium temperature+40° C
• Max. ambient temperature+40° C
• PH level from 4-10
• Maximum passage for suspended solids45
• Voltage fluctuation range: 0.9-1.1 times of the rated value
• Immersion depth from 0.5m- 5m
• Two-pole induction motor
• Single phase/three phase, 50/60hz (on demand)
• Thermal protector for single phase
• Insulation class: B
• Protection class:IPX8
• Pump body: Cast iron
• Motor housing: Stainless steel
• Impeller: Cast iron
• Motor wire: Copper
• Mechanical seal: Ceramic&Graphite
• Shaft: 45#steel/stainless steel
|

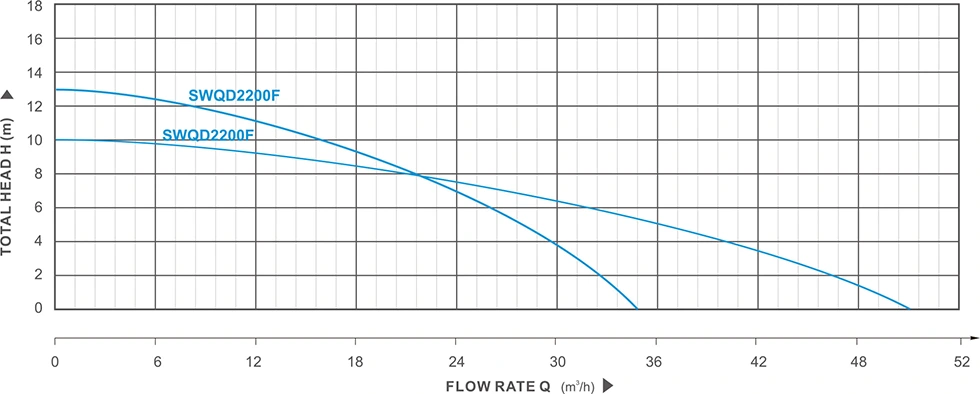

Model |
Inlet/Outlet |
Power |
Through the particles |
Max.Diving depth |
Max. Flow |
Max.Head |
|
|
Single phase |
Inch |
KW |
HP |
mm |
m |
m3/h |
m |
|
SWQD2200F |
3" |
2.2 |
3.0 |
20 |
5 |
35 |
13 |
|
SWQD2200F |
4" |
2.2 |
3.0 |
25 |
5 |
50 |
10 |
