Welcome to wholesale or customized Big Height Small Flow Solar Screw Pumps from our factory at any time. We will provide you with factory discount prices for our products. LEAD PUMP is Big Height Small Flow Solar Screw Pumps manufacturer and supplier in China.
|
ITEM
|
Voltage (V)
|
Best input Voltage(DC)
|
Power (w)
|
Max. Flow (m³/h)
|
Max.Head (m)
|
Outlet(in)
|
Open circuit voltage(VOC)
|
Solar Panels Suggestion
|
|||||||
| Voltage(V) |
Power (w)
|
Quantity (pcs)
|
Connection
|
||||||||||||
|
1 |
3DCQG1.2-56-24-120 |
24 |
30-48v |
120 |
1.2 |
56 |
0.75" |
<50v |
36 |
250 |
1 |
|
|||
|
2 |
3DCQG1.5-80-36-210 |
24 |
30-48v |
210 |
1.5 |
80 |
0.75" |
<50v |
36 |
300 |
1 |
|
|||
|
3 |
3DCQG1.8-112-48-500 |
48 |
60-90v |
500 |
1.8 |
112 |
0.75" |
<100v |
36 |
330 |
2 |
|
|||
|
4 |
3DCQG1.8-138-48-750 |
48 |
60-90v |
750 |
1.8 |
138 |
0.75" |
<100v |
36 |
250 |
4 |
|
|||
|
5 |
3DCQG2.0-145-72-750 |
72 |
90-120v |
750 |
2 |
145 |
0.75" |
<150v |
36 |
330 |
3 |
|
|||
Power input type : Solo Direct Current.
Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.
Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.
Integrated DSP&MPPT(Maximun Power Point Tracking System)
Dry running protection
Suitable for Wide DC voltage Operation
Battery Operation,low voltage disconnect for battery tracking
Overload and high Adjustable speed control of motor
Temperature Protection and against reverse polarity
• lrrigation in horticulture & agriculture
• Livestok Watering
• Gardens or fountains
• Domestic water supply
• Pond management
• Small scale service industries
Solar powered screw pump - 1 piece.
Accessary kits - 1 set

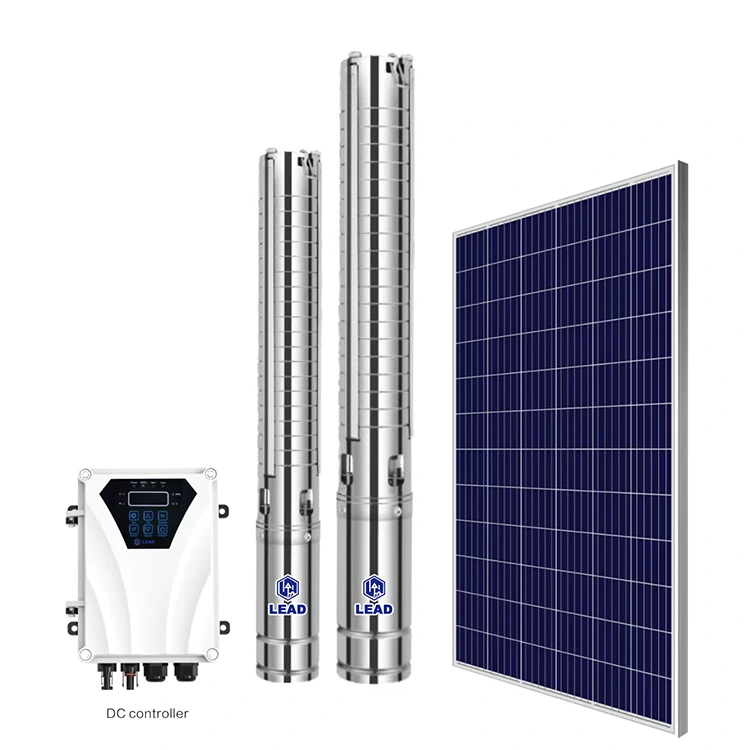

DC Controller - 1 piece
User's manual - 1 piece
