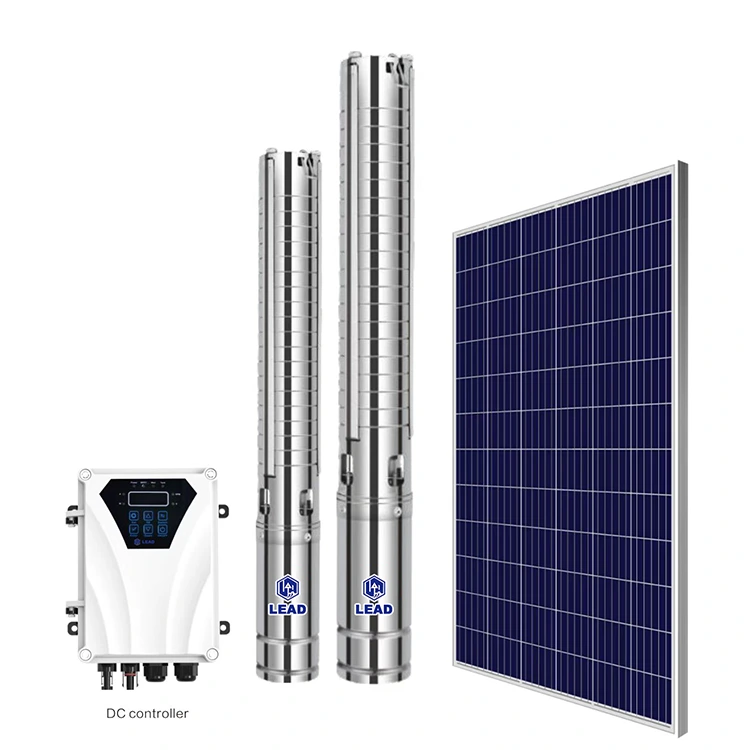

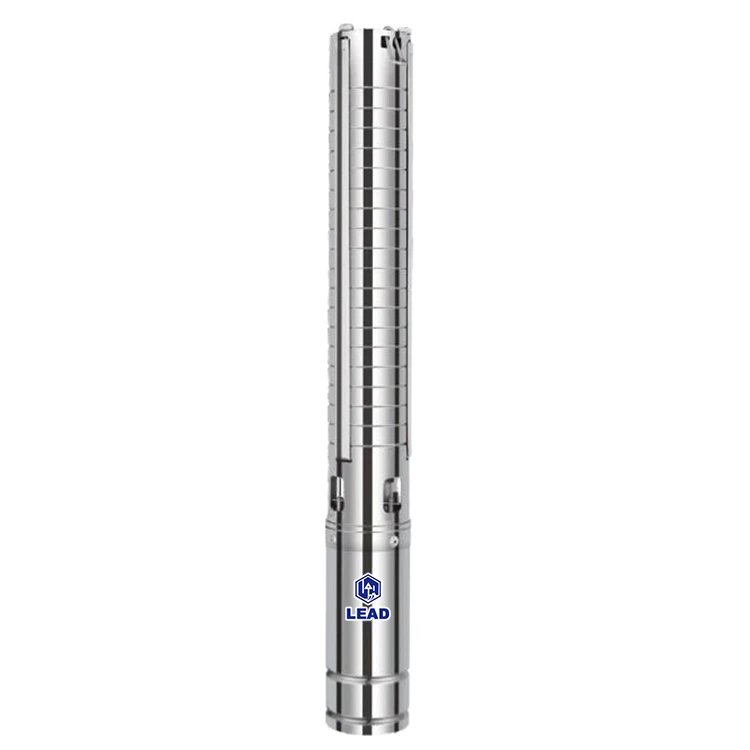

Product introduce:304 stainless steel solar deep well pump is a kind of equipment used in deep well pumping, its shell is made of 3 Inch Solar Powered Submersible Pump, with corrosion resistance, wear resistance, high temperature resistance and other characteristics. Can be widely used in rural, community, industrial and other fields of water supply and drainage system. Product Description: The components of this 3 inch stainless steel impeller deep well solar pump are mainly the shell, motor, shaft, impeller and etc. Shell: The pump shell uses 304 stainless steel, stainless steel material has high hardness and wear resistance, which can maintain good working condition in long-term use and reduce the frequency of maintenance and replacement. Motor: It takes current popular DC brushless permanent magnet motor, which has higher efficiency and longer service life than traditional brushless motors.
Shaft:The shaft is made of 304 stainless steel shaft, 304 stainless steel contains 18% chromium and 8% nickel,which makes it have good corrosion resistance and can resist the corrosion of most chemical substances. Therefore, 304 stainless steel can also run for a long time in humid and corrosive environments, extending the service time. Impeller: The strength and the rigidity of the stainless steel impeller are high, can withstand the pressure of high speed rotation, and insure the stable operation and service life of the pump.

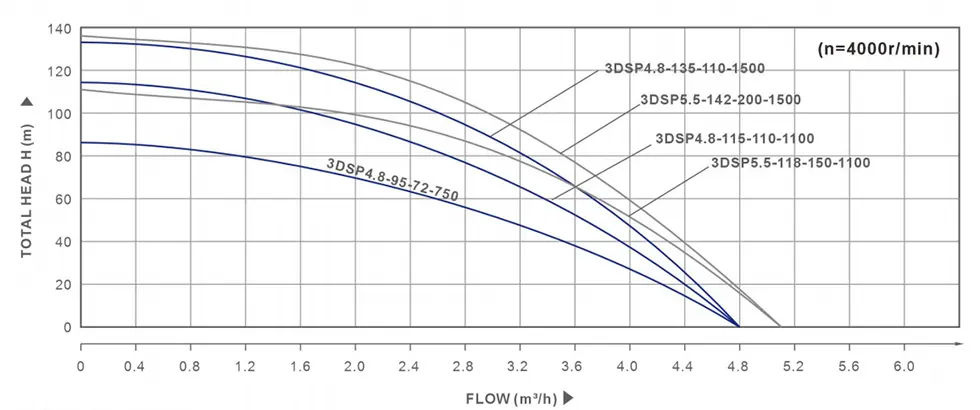

| ITEM | Voltage (V) | Best input Voltage (DC) | Power (w) | Max. F low (m3/h) | Max. Head (m) | Outlet (in) | Open circuit voc | Solar Panels Suggestion | ||||
| vo | wer | Quantity (pcs) | Connection | |||||||||
|
1 |
3DSP4-35-24-300 |
24 |
30-48v |
300 |
4 |
35 |
1.25" |
<50v |
36 |
250 |
2 |
|
|
2 |
3DSP4.5-50-48-500 |
48 |
60-90v |
500 |
4.5 |
50 |
1.25" |
<100v |
36 |
250 |
4 |
|
|
3 |
3DSP4.5-82-48-600 |
48 |
60-90v |
600 |
4.5 |
82 |
1.25" |
<100v |
36 |
250 |
4 |
|
|
4 |
3DSP4.8-95-72-750 |
72 |
90-120v |
750 |
4.8 |
95 |
1.25" |
<150v |
36 |
330 |
3 |
|
|
5 |
3DSP4.8-112-72-1100 |
72 |
90-120v |
1100 |
4.8 |
112 |
1.25" |
<150v |
36 |
250 |
6 |
|
|
6 |
3DSP4.8-115-110-1100 |
110 |
120-150v |
1100 |
4.8 |
115 |
1.25" |
<200v |
36 |
250 |
8 |
|
|
7 |
3DSP4.8-135-110-1500 |
110 |
120-150v |
1500 |
4.8 |
135 |
1.25" |
<200v |
36 |
250 |
8 |
|
|
8 |
3DSP5.5-118-150-1100 |
150 |
150-430v |
1100 |
5.5 |
118 |
1.25" |
<430v |
36 |
300 |
6 |
|
|
9 |
3DSP5.5-126-150-1300 |
150 |
150-430v |
1300 |
5.5 |
126 |
1.25" |
<430v |
36 |
300 |
6 |
|
|
10 |
3DSP5.5-143-200-1500 |
200 |
200-430v |
1500 |
5.5 |
143 |
1.25" |
<430v |
36 |
340 |
6 |
|

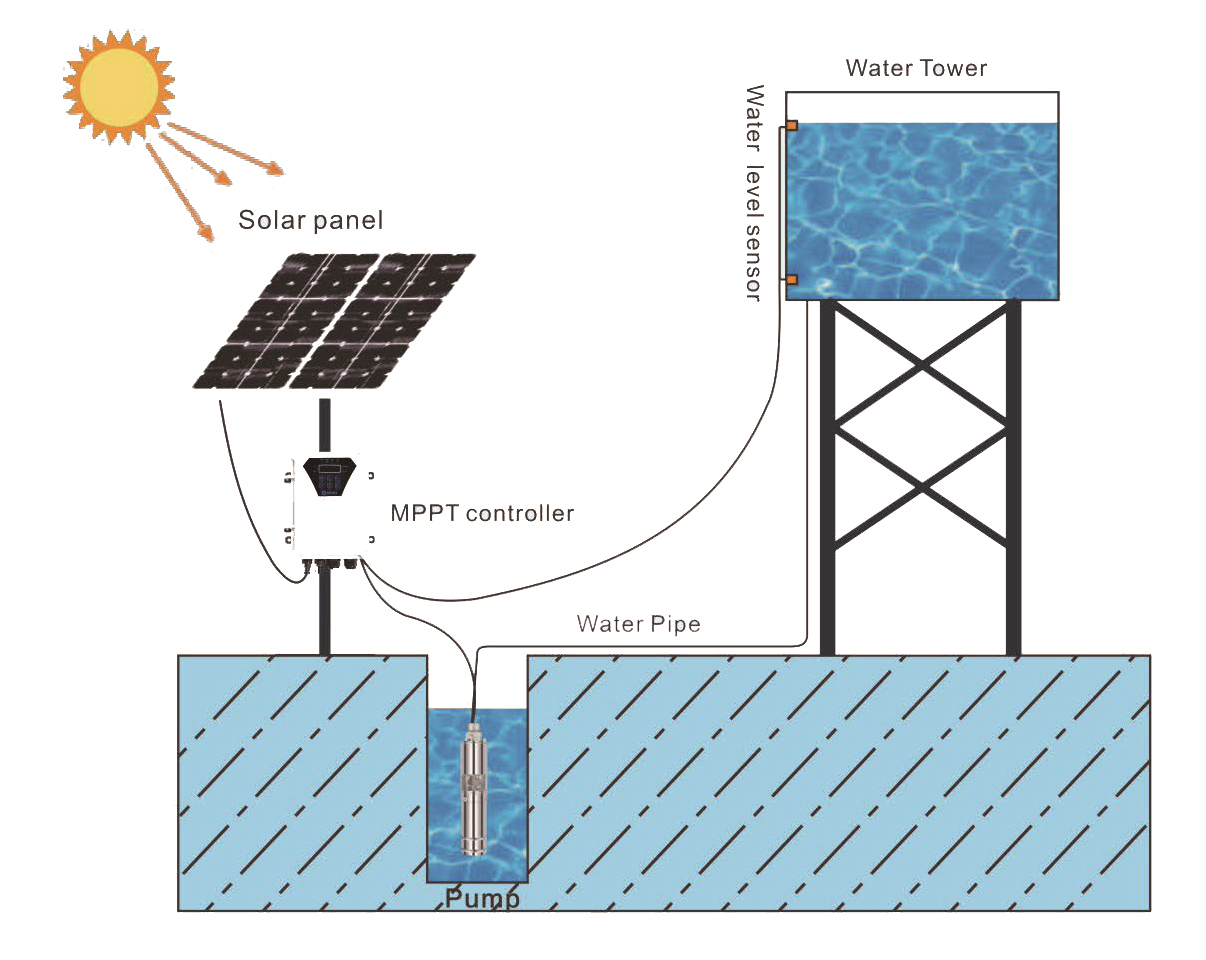

1. Farmland irrigation: Deep well pumps can extract groundwater for farmland irrigation to improve crop yield and quality.
2. Urban water supply: Deep well pumps can extract water from underground water sources to supply urban residents and enterprises to ensure that urban residents have sufficient water supply.
3. Industrial water supply: Deep well pumps are used in manufacturing, mining and a wide range of other industrial areas, delivering essential water resources to the production process in the industries.
4. Groundwater level maintenance: In the face of the challenge of groundwater scarcity, deep well pumps inject water into the ground through special recharge wells to ensure the stability of the water level and to promote the long-lasting recycling of water resources.
5.Dewatering and water treatment: deep well pumps play a key role in drainage and sewage treatment systems, which can efficiently transport sewage or rainwater to the treatment device or discharge site to ensure the smooth operation of the entire drainage system.
• Maintenance-Free Brushless DC Motor

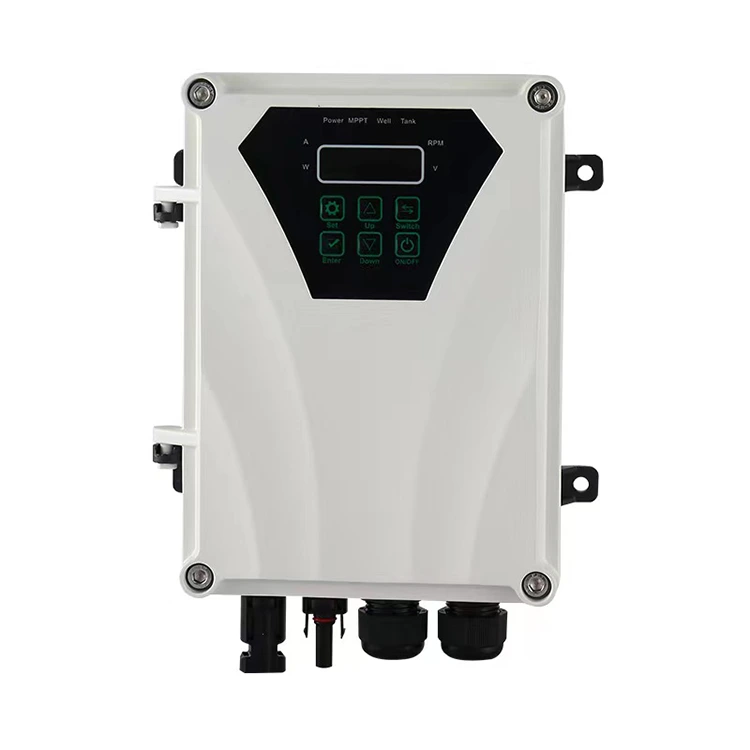

• Integrated DSP&MPPT(Maximun Power Point remote control etc.)
• Suitable for Wide DC voltage Operation

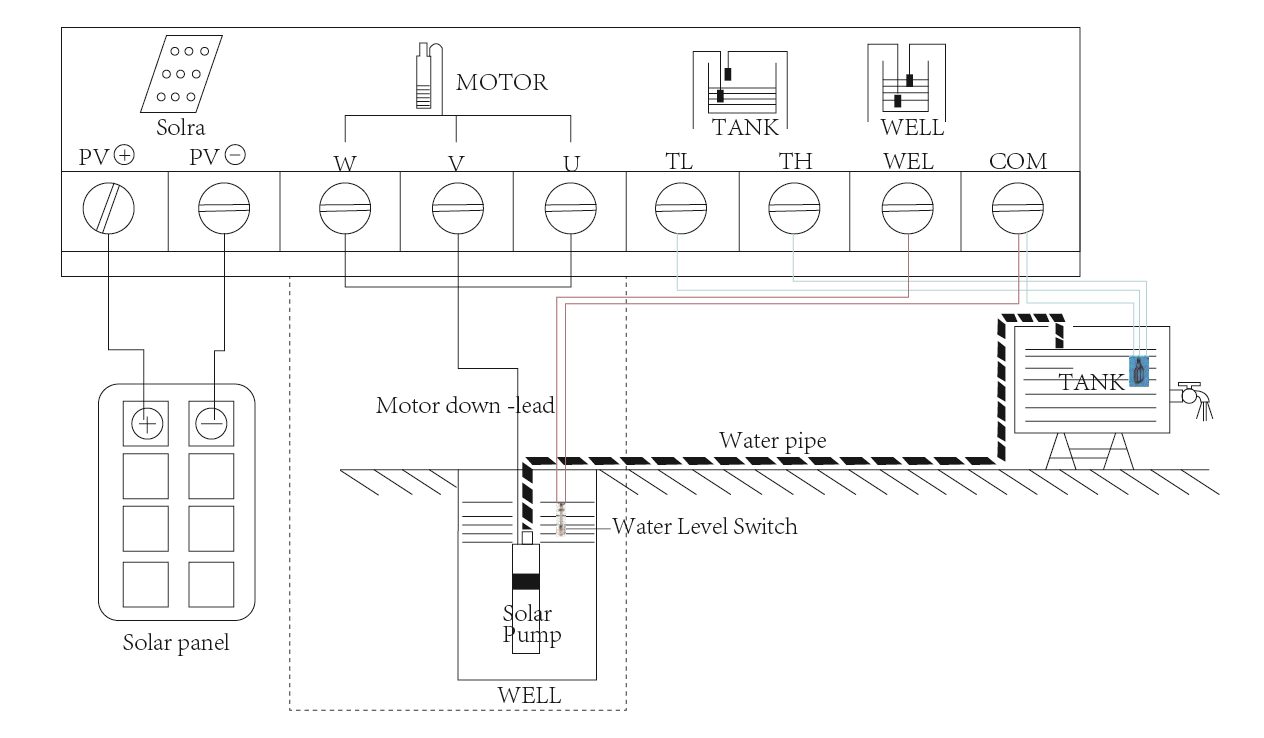

• Control inputs for well probe, dry running protection
• Battery Operation,low voltage disconnect for battery tracking)
• Overload and high Adjustable speed control of motor
• Temperature Protection and against reverse polarity
• lrrigation in horticulture & agriculture
• Livestok Watering
• Gardens or fountains
• Domestic water supply
• Pond management
• Small scale service industries
