As a professional 3 inch Solar Water Pump with Plastic Impeller manufacturer, you can rest assured to buy 3 inch Solar Water Pump with Plastic Impeller from our factory and LEAD PUMP will offer you the best after-sale service and timely delivery.

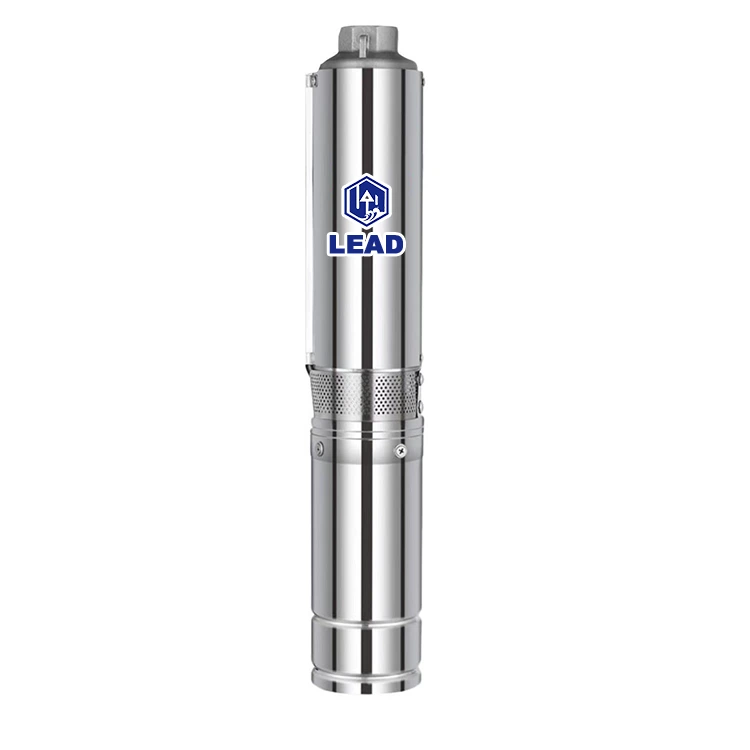

3 inch solar deep well pump is one of the main products of Lead Pump factory, deep well pumps are mainly used in horticulture and agriculture to irrigate, livestock to water, gardens or fountains, water supply for life, pond management, small service industry, etc.

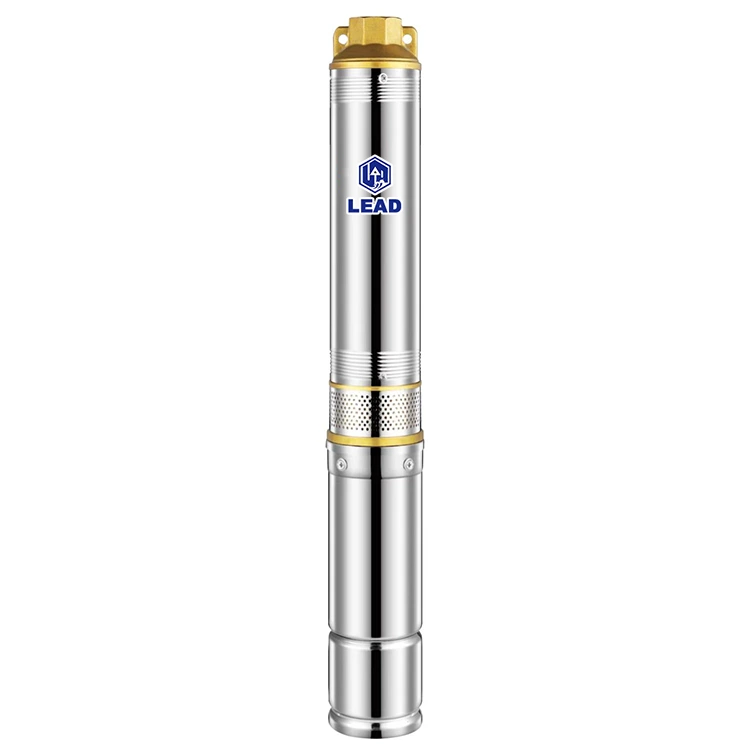

Stainless steel pump body: The pump body is made of stainless steel, which has excellent corrosion resistance and strength, and can operate stably for a long time in harsh underground environment,effectively resisting the erosion and wear of well water.
Brushless design: This deep well pump uses a brushless motor, which has higher efficiency and longer service life than traditional brushless motors. At the same time, the brushless motor also reduces the hassle of maintenance, because it has no carbon brushes to be replaced regularly.
Plastic impeller: The impeller of the deep well pump is made of PPO. PPO has the advantages of high rigidity, high heat resistance, low flammability, high strength and excellent electrical properties. Plastic impellers have lighter weight and better corrosion resistance than metal impellers, and are especially suitable for pumping groundwater containing certain corrosive substances.
3 inch diameter: The diameter of the deep well pump is 3 inch, which is suitable for use in the case of small wellhead diameter. Pumps of this caliber can provide moderate flow and head to meet the general irrigation and domestic water needs.

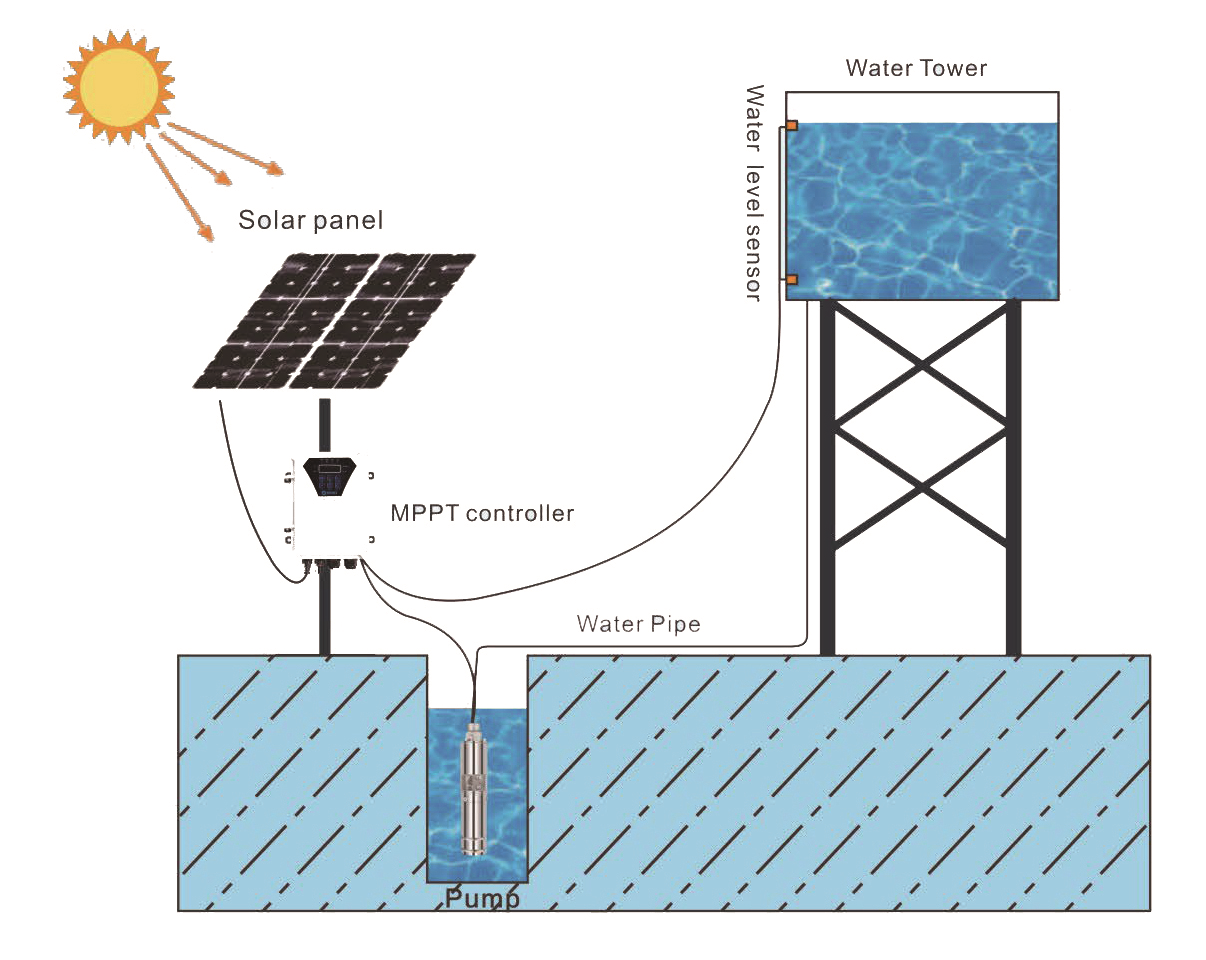

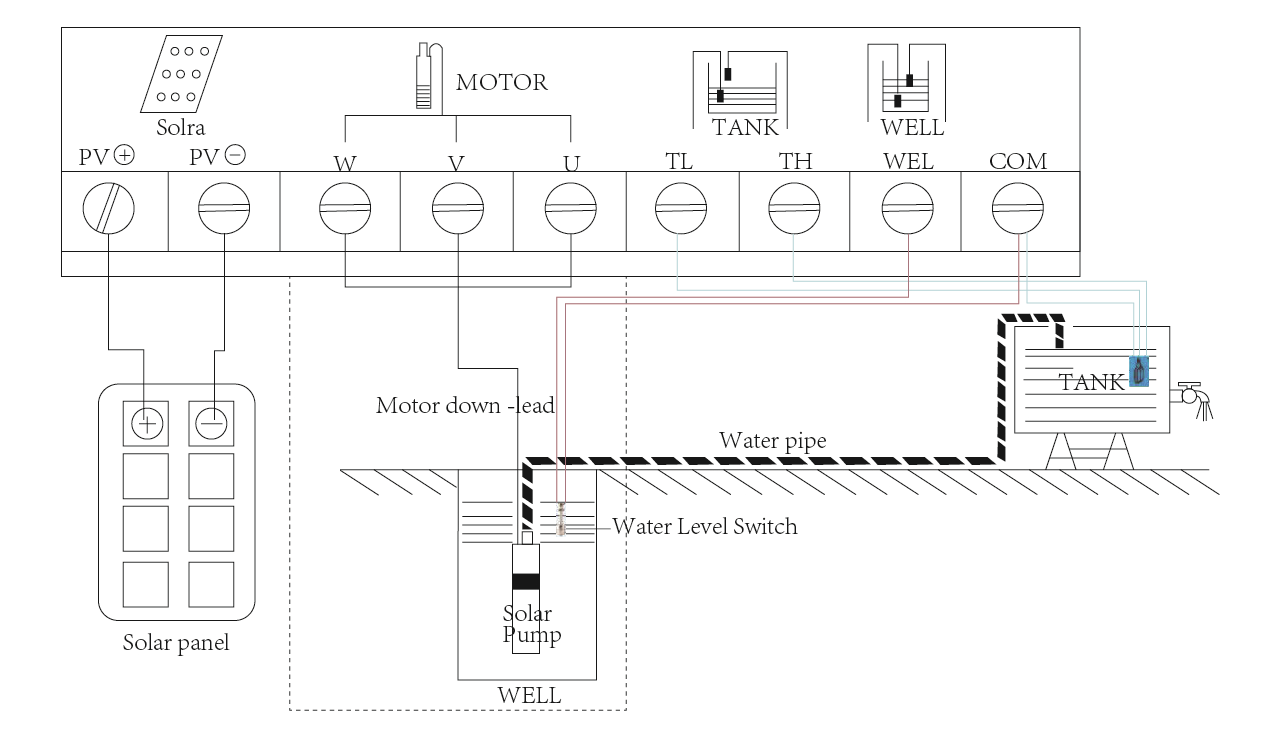

The DC brushless solar screw is only powered by direct current, directly from solar panels or with a battery as transit. Float switch could be installed in water tanks or in well to automatically control the Start and Stop of pump.
| ITEM |
Voltage
(V)
|
Best input
Voltage(DC)
|
Power
(w)
|
Max.Flow
(m³/h)
|
Max.Head
(m)
|
Outlet(in) | Open circuit voltage(VOC) | Solar Panels Suggestion | ||||
|
Voltage
(V)
|
Power (w) | Quantity (pcs) | Connection | |||||||||
|
1 |
3DSD3.5-26-24-200 |
24 |
30-48v |
200 |
3.5 |
26 |
1.25" |
<50v |
36 |
300 |
1 |
|
|
2 |
3DSD3.5-38-24-300 |
24 |
30-48v |
300 |
3.5 |
38 |
1.25" |
<50v |
36 |
250 |
2 |
|
|
3 |
3DSD4-66-48-500 |
48 |
60-90v |
500 |
4 |
66 |
1.25" |
<100v |
36 |
250 |
4 |
|
|
4 |
3DSD4-90-48-600 |
48 |
60-90v |
600 |
4 |
90 |
1.25" |
<100v |
36 |
250 |
4 |
|
|
5 |
3DSD4-95-48-750 |
48 |
60-90v |
750 |
4 |
95 |
1.25" |
<100v |
36 |
250 |
4 |
|
|
6 |
3DSD5.5-50-48-600 |
48 |
60-90v |
600 |
5.5 |
50 |
1.5" |
<100v |
36 |
250 |
4 |
|
|
7 |
3DSD6.5-40-48-600 |
48 |
60-90v |
600 |
6.5 |
40 |
1.5" |
<100v |
36 |
250 |
4 |
|
|
8 |
3DSD4-100-72-750 |
72 |
90-120v |
750 |
4 |
100 |
1.25" |
<150v |
36 |
330 |
3 |
|
|
9 |
3DSD4-108-72-900 |
72 |
90-120v |
900 |
4 |
108 |
1.25" |
<150v |
36 |
250 |
6 |
|
|
10 |
3DSD4-123-72-1100 |
72 |
90-120v |
1100 |
4 |
123 |
1.25" |
<150v |
36 |
250 |
6 |
|
|
11 |
3DSD6-50-72-600 |
72 |
90-120v |
600 |
6 |
50 |
1.5" |
<150v |
36 |
300 |
3 |
|
|
12 |
3DSD6-66-72-750 |
72 |
90-120v |
750 |
6 |
66 |
1.5" |
<150v |
36 |
330 |
3 |
|
|
13 |
3DSD7.5-46-72-750 |
72 |
90-120v |
750 |
7.5 |
46 |
1.5" |
<150v |
36 |
330 |
3 |
|
|
14 |
3DSD7.5-60-72-900 |
72 |
90-120v |
900 |
7.5 |
60 |
1.5" |
<150v |
36 |
250 |
6 |
|
|
15 |
3DSD4-126-110-1100 |
110 |
120-150v |
1100 |
4 |
126 |
1.25" |
<200v |
36 |
250 |
8 |
|
|
16 |
3DSD4-145-110-1300 |
110 |
120-150v |
1300 |
4 |
145 |
1.25" |
<200v |
36 |
250 |
8 |
|
|
17 |
3DSD4-166-110-1500 |
110 |
120-150v |
1500 |
4 |
166 |
1.25" |
<200v |
36 |
250 |
8 |
|
|
18 |
3DSD6-74-110-750 |
110 |
120-150v |
750 |
6 |
74 |
1.5" |
<200v |
36 |
250 |
4 |
|
|
19 |
3DSD6-90-110-1100 |
110 |
120-150v |
1100 |
6 |
90 |
1.5" |
<200v |
36 |
250 |
8 |
|
|
20 |
3DSD5.5-122-110-1500 |
110 |
120-150v |
1500 |
5.5 |
122 |
1.5" |
<200v |
36 |
250 |
8 |
|
|
21 |
3DSD7.5-53-110-750 |
110 |
120-150v |
750 |
7.5 |
53 |
1.5" |
<200v |
36 |
250 |
4 |
|
|
22 |
3DSD7.5-68-110-1100 |
110 |
120-150v |
1100 |
7.5 |
68 |
1.5" |
<200v |
36 |
250 |
8 |
|
|
23 |
3DSD7.5-80-110-1300 |
110 |
120-150v |
1300 |
7.5 |
80 |
1.5" |
<200v |
36 |
250 |
8 |
|
|
24 |
3DSD5.5-106-110-1300 |
110 |
120-150v |
1300 |
5.5 |
106 |
1.5" |
<200v |
36 |
250 |
8 |
|
|
25 |
3DSD7.5-90-110-1500 |
110 |
120-150v |
1500 |
7.5 |
90 |
1.5" |
<200v |
36 |
250 |
8 |
|
|
26 |
3DSD4.5-135-150-1100 |
150 |
150-430v |
1100 |
4.5 |
135 |
1.25" |
<430v |
36 |
300 |
6 |
|
|
27 |
3DSD4.5-162-150-1300 |
150 |
150-430v |
1300 |
4.5 |
162 |
1.25" |
<430v |
36 |
300 |
6 |
|
|
28 |
3DSD6-101-150-1100 |
150 |
150-430v |
1100 |
6 |
101 |
1.5" |
<430v |
36 |
300 |
6 |
|
|
29 |
3DSD6-120-150-1300 |
150 |
150-430v |
1300 |
6 |
120 |
1.5" |
<430v |
36 |
300 |
6 |
|
|
30 |
3DSD7.5-75-150-1100 |
150 |
150-430v |
1100 |
7.5 |
75 |
1.5" |
<430v |
36 |
300 |
6 |
|
|
31 |
3DSD7.5-93-150-1300 |
150 |
150-430v |
1300 |
7.5 |
93 |
1.5" |
<430v |
36 |
300 |
6 |
|
|
32 |
3DSD4-180-200-1500 |
200 |
200-430v |
1500 |
4 |
180 |
1.25" |
<430v |
36 |
340 |
6 |
|
|
33 |
3DSD6-133-200-1500 |
200 |
200-430v |
1500 |
6 |
133 |
1.5" |
<430v |
36 |
340 |
6 |
|
|
34 |
3DSD7.5-102-200-1500 |
200 |
200-430v |
1500 |
7.5 |
102 |
1.5" |
<430v |
36 |
340 |
6 |
|
1. Installation position: The pump should be installed in the protective pipe at the wellhead or bottom of the well, and ensure that the pump body is placed vertically to ensure the normal operation of the pump and the pumping effect.
2. Power connection: The motor needs to be connected to the ground power supply through the wire, to ensure that the power supply is stable and reliable, and to avoid the normal operation of the pump due to power problems.
3. Maintenance: Although the brushless motor reduces the trouble of maintenance, it is still necessary to regularly check the operation of the pump, clean the debris and dirt on the pump body and impeller, and maintain the good working condition of the pump.
Q1: Is this pump easy to install?
A1: Yes, this pump mainly uses solar energy, no need to lay cable, convenient and practical, simple operation.
Q2: How to select the proper solar energy deep well pump?
A2: You need to choose the right pump according to your flow demand, lift demand and water quality conditions. Generally speaking, the higher the head, the greater the power of the pump. If the water contains more impurities, it is necessary to choose a deep well pump with stronger filtration function.
Power input type : Solo Direct Current.
Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.
Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.
Integrated DSP&MPPT(Maximun Power Point remote control etc.)
Dry running protection
Suitable for Wide DC voltage Operation
Battery Operation,low voltage disconnect for battery tracking
Overload and high Adjustable speed control of motor
Temperature Protection and against reverse polarity
• lrrigation in horticulture & agriculture
• Livestok Watering
• Gardens or fountains
• Domestic water supply
• Pond management
• Small scale service industries

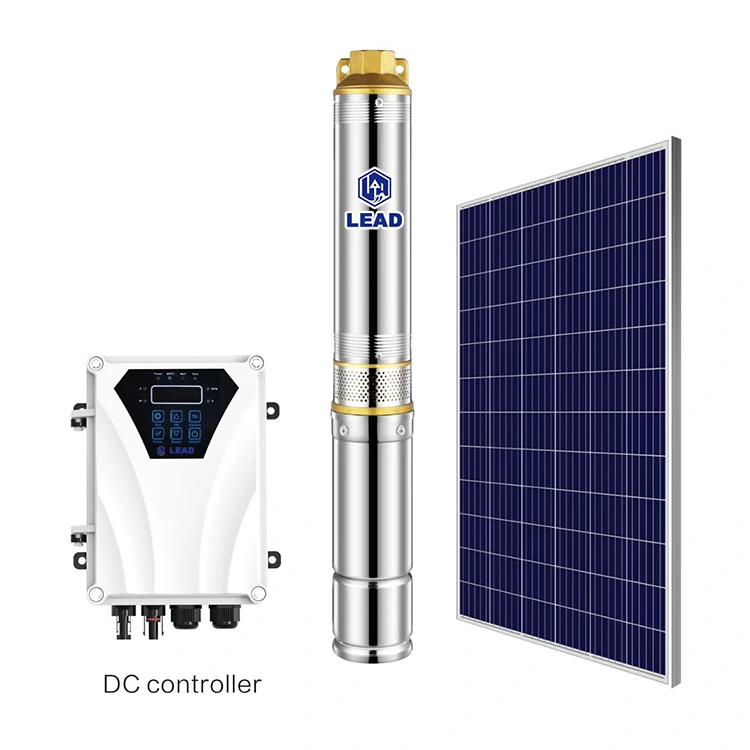

Solar powered deep well pump - 1 piece.

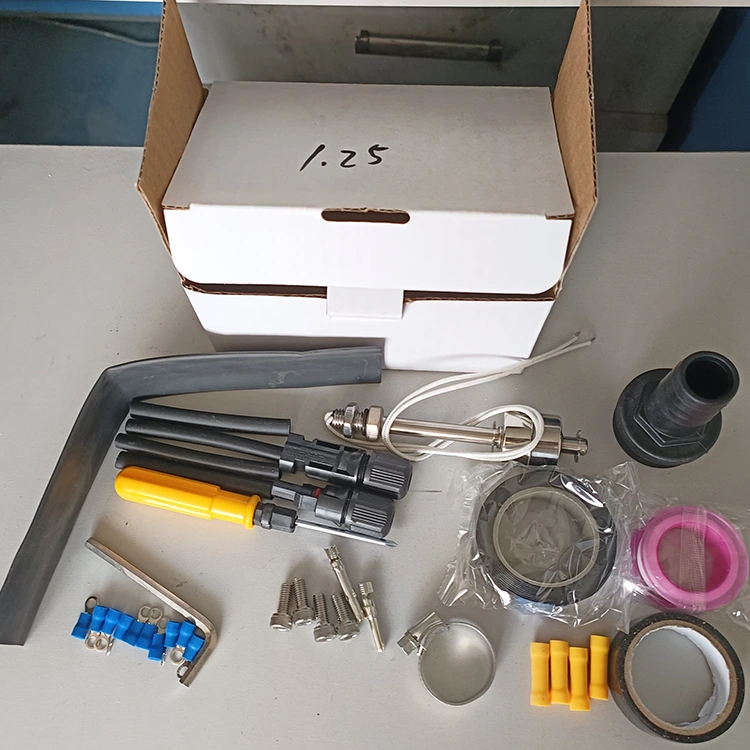

Accessary kits - 1 set
DC Controller - 1 piece
User's manual - 1 piece
