3 Inch Solar Deep Well Pump Buying Guide — The Best Choice for Small-Diameter Wells

When your water well has a small casing diameter — typically 3 inches (76mm) or less — finding the right pump becomes a challenge. Standard 4-inch submersible pumps simply won’t fit. That’s where the 3 inch solar deep well pump comes in. Designed specifically for small-diameter wells, these pumps combine compact dimensions with powerful performance, running entirely on solar energy.

In this guide, we’ll cover everything you need to know about 3-inch solar deep well pumps: specifications, applications, how they compare to 4-inch pumps, installation tips, and answers to the most common questions. Whether you’re a farmer, a rancher, or a homeowner with a narrow borehole, this guide will help you choose the right pump for your needs.

What Is a 3 Inch Solar Deep Well Pump?

A 3 inch solar deep well pump is a submersible pump with an outer diameter of approximately 3 inches (76mm or less), designed to fit inside 3-inch or larger well casings. It consists of:

• A brushless DC motor — Permanent magnet, high efficiency, low maintenance

• Multi-stage impellers — For high head (pressure) capability

• A controller — MPPT (Maximum Power Point Tracking) for solar optimization

• Solar panels — Power source, typically 300W to 1500W depending on depth and flow

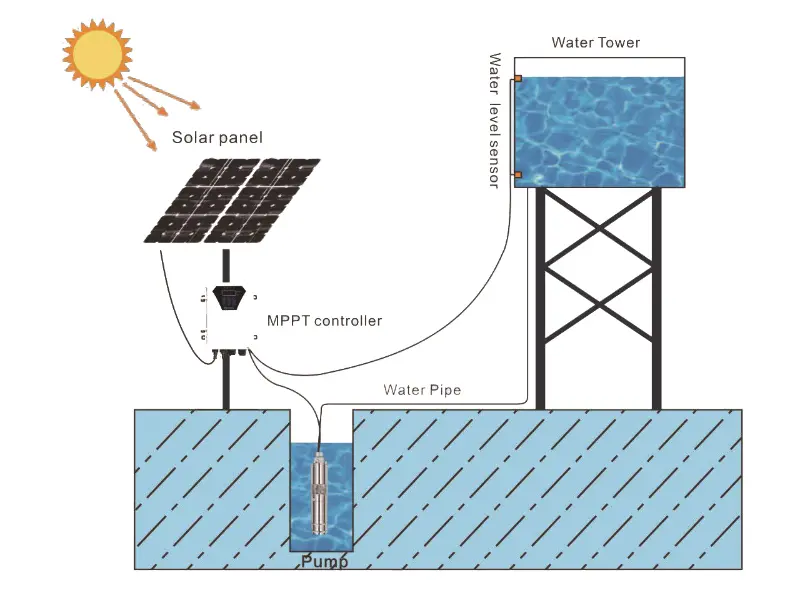

These pumps are part of a solar direct drive (SDD) system, meaning the solar panels connect directly to the pump via the controller, with no batteries or inverters required (though battery backup is optional).

Key Specifications

Here are typical parameters for 3-inch solar deep well pumps (LEAD PUMP 3SD series):

Key Dimensions: - Outer Diameter: 76mm (3 inches) - Motor Length: 350-500mm depending on model - Well Casing Requirement: ≥ 3 inches

3 Inch vs 4 Inch Solar Deep Well Pump

This is the most common question buyers ask. Here’s a side-by-side comparison:

When to Choose 3 Inch: - Your well casing is only 3 inches wide - You need 4-6 m³/h flow rate (sufficient for most small farms & households) - Your well depth is within 120m - You want a lower-cost solution

When to Choose 4 Inch: - Your well casing is 4 inches or larger - You need higher flow rates (8-12 m³/h) - Your well is deeper than 120m - You need higher total head capability

Applications

3-inch solar deep well pumps are ideal for:

Typical Daily Output: - 400W pump at 30m head: ~15-20 m³/day (sufficient for 2-5 acres) - 800W pump at 80m head: ~8-12 m³/day - 1100W pump at 120m head: ~5-8 m³/day

Installation Guide

Proper installation is crucial for long pump life of 3 inch solar deep well pump. Follow these steps:

1. Check Well Condition

• Ensure well casing is at least 3 inches (76mm) inner diameter

• Check water level (static and dynamic)

• Verify water quality (sand content should be < 50g/m³)

2. Prepare Components

• Solar panels: 1.3-2.0x pump rated power

• Controller: Match pump voltage and power

• Cable: Use submersible cable, sized for proper voltage drop

• Safety rope: Stainless steel wire rope

• Pipe: PE or galvanized steel pipe

3. Installation Steps

1. Connect pump to drop pipe with check valve

2. Attach safety rope to pump lifting ring

3. Connect submersible cable and tie to pipe at 3m intervals

4. Lower pump into well — position at least 5m below dynamic water level

5. Seal wellhead to prevent contamination

6. Connect controller: Solar panels → Controller → Pump

7. Test run — fill pump with water before first start (primer)

Solar Panel Configuration

For 48V pump → 2 panels of 350W in series (700W+) For 72V pump → 3 panels of 350W in series (1050W+) For 96V pump → 3 panels of 400W in series (1200W+) For 120V pump → 4 panels of 350W in series (1400W+)

Formula: Panel total = Pump power × 1.3 to 1.5 (adjust for your location’s sunlight hours)

Maintenance Tips

One of the biggest advantages of solar pumps is low maintenance, but a few simple checks will extend your pump’s life significantly:

1. Clean Solar Panels — Every 2-3 months, wipe dust off panels (dust can reduce output by 10-30%)

2. Check Cable Connections — Inspect cable joints for corrosion every 6 months

3. Monitor Output — A sudden drop in flow may indicate clogged impellers or worn parts

4. Test Insulation — Annual insulation resistance test for submersible cable

5. Controller Check — Verify LED indicators and error codes monthly

Frequently Asked Questions (FAQ)

Q1: Can a 3-inch solar pump run on cloudy days?

Yes, but at reduced flow. 3 inch solar deep well pump use MPPT controllers that maximize power output even in low light. On heavy overcast days, you’ll get 10-30% of rated flow. For year-round reliability, oversize your solar array by 30-50%.

Q2: Do I need batteries?

No. Solar direct drive systems pump water during daylight hours and stop at night. If you need 24/7 water access, add a water storage tank instead of batteries — it’s cheaper and more reliable.

Q3: How deep can a 3-inch pump go?

The 3SD series can handle depths up to 120m. For deeper wells, consider a 4-inch pump with higher head capacity.

Q4: What’s the lifespan of a 3-inch solar pump?

With proper installation and maintenance, a quality 3-inch solar deep well pump (e.g., LEAD PUMP 3SD series) lasts 8-12 years. The brushless DC motor is the most durable component — typically 10,000+ hours of operation.

Q5: Can I use my existing solar panels?

Yes, as long as the voltage matches the pump. Most solar pumps accept 48V-120V DC input. Check the pump’s voltage requirement and configure your panels in series to match.

Q6: How much does a 3-inch solar pump system cost?

A complete system (pump, controller, solar panels, cable, pipe) for a 3-inch well typically costs: - 400W system: $500-800 - 600W system: $700-1,000 - 800W system: $900-1,300 - 1100W system: $1,200-1,800

Payback period: Usually 2-4 years vs. diesel generator pumping.

Q7: What is the pump’s outer diameter exactly?

76mm (3 inches). But always measure your well casing inner diameter — some “3 inch” wells have slightly smaller inner diameters. If in doubt, choose a pump with a slightly smaller OD (some models are 72mm for tight casings).

Why Choose LEAD PUMP 3SD Series?

LEAD PUMP (Taizhou Lead Pump Co., Ltd.) has been manufacturing solar water pumps since 2010. Our 3SD series is built with:

• Pure copper winding motor — Better heat dissipation and efficiency

• 304 stainless steel shaft — Corrosion resistant for long life in water

• NORYL impellers — High strength, wear resistant, food-grade material

• Integrated MPPT controller — Plug and play, auto start/stop

• Full protection — Overload, dry run, over-voltage, under-voltage, reverse polarity

• CE, RoHS, ISO9001 certified

Conclusion

The 3 inch solar deep well pump is the perfect solution for anyone with a small-diameter well who wants to harness solar energy for water pumping. With the right sizing and installation, it delivers years of reliable, zero-fuel-cost service. Whether you’re irrigating crops, watering livestock, or supplying water to your home, a 3-inch solar pump from LEAD PUMP will get the job done.

Key takeaways: - ✅ 3-inch pumps fit 3” well casings (76mm ID minimum) - ✅ Flow: 4-6 m³/h, Head: up to 120m - ✅ No batteries needed — solar direct drive - ✅ 8-12 year lifespan with minimal maintenance - ✅ Costs less than 4-inch pumps with similar features - ✅ Ideal for small farms, households, and remote areas
