The DCHF series of DC solar centrifugal pumps from LEAD PUMP offers farmers, landscapers, and homeowners a powerful, efficient, and maintenance-free solution for moving large volumes of water without relying on the grid. In this guide, we'll explore everything you need to know: how they work, what models are available, how to size your system, and why a centrifugal design might be exactly what your farm needs.

What Is a Solar Centrifugal Water Pump?

A solar centrifugal water pump is a surface-mounted pump that uses a rotating impeller to create centrifugal force, moving water from a nearby source (pond, tank, river, or canal) to where it's needed. Unlike submersible pumps that sit inside the water source, centrifugal pumps are installed at ground level, with a suction pipe drawing water from the source.

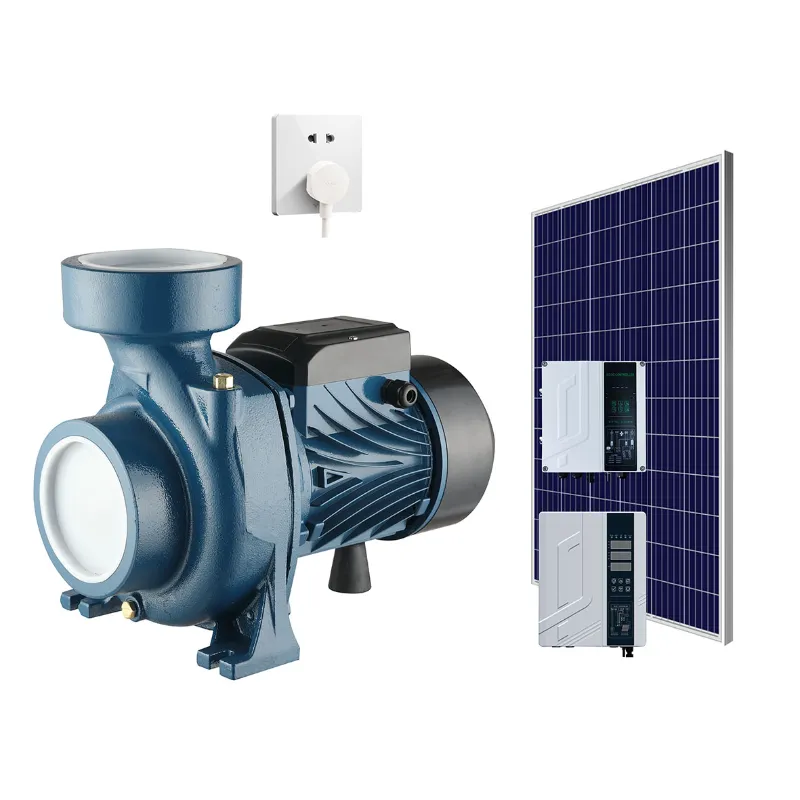

The DCHF series takes this proven technology and pairs it with a brushless DC permanent magnet motor powered directly by solar panels. The result is a self-contained, highly efficient pumping system that runs on sunshine alone.

DCHF Series at a Glance

Why Choose a Centrifugal Pump Over a Submersible?

Many buyers default to submersible pumps without considering the advantages of centrifugal surface pumps for certain applications:

✅ Higher Flow Rates: Centrifugal pumps excel at moving large volumes of water at moderate heads. The DCHF50-17-108-1500 can deliver a staggering 50 m³/h—enough to irrigate several hectares in a single day.

✅ Easy Maintenance: Because the pump sits above ground, there's no need to pull it from a borehole for inspection or service. The motor and impeller are fully accessible.

✅ Lower Installation Cost: No borehole drilling required. The pump sits next to your water source with simple suction and discharge pipe connections.

✅ Perfect for Surface Water Sources: Ponds, reservoirs, canals, rivers, and storage tanks are natural applications for centrifugal pumps.

✅ Solar-Optimized DC Design: The DCHF series runs on pure DC power from solar panels, with no inverter losses. The brushless DC motor achieves high efficiency across a wide speed range.

How the DCHF Series Works

Power and Control

The DCHF series is a solo DC input system—it runs exclusively on direct current from solar panels. This simplicity means fewer components, higher efficiency, and lower cost compared to hybrid AC/DC systems.

The pump comes with an integrated controller that manages:

• MPPT (Maximum Power Point Tracking) – Continuously adjusts to extract maximum power from solar panels.

• Auto Start/Stop – Starts automatically when solar power is sufficient and stops when it's not.

• Speed Control – Solar Centrifugal Water Pump speed varies with available solar power.

Protection Features

Every DCHF pump includes comprehensive built-in protections:

• MPPT – Maximizes solar harvest

• Thermal protection – Prevents motor overheating

•  Anti-dry run – Shuts down if water supply is lost

•  Anti-block – Clears minor impeller obstructions

• Voltage, current & power protection – Guards against electrical faults

Sizing Your Solar Array

Proper solar panel sizing is straightforward for the DCHF series. The total solar panel power should be 1.3 to 2.0 times the pump rated power.

Example—DCHF25-18-72-750 (750W pump):

• Minimum panel power: 750 × 1.3 = 975W

• With 350W panels: 975 ÷ 350 = 3 panels

• Connection: 3 panels in series = ~108V VOC ✓

DC Voltage Matching

Applications of DC Solar Centrifugal Pumps

1. Farm Irrigation: Flood irrigation, drip irrigation systems, and sprinkler setups.
2. Garden & Nursery Watering: Market gardens, nurseries, and greenhouse irrigation.
3. Pond Management: Pond aeration, circulation, and water feature maintenance.
4. Domestic Water Supply: With an elevated storage tank for 24/7 gravity supply.
5. Water Transfer: Moving water from river/canal to storage reservoir.
6. Construction Site Dewatering: Temporary dewatering at remote sites.

Cost-Benefit Analysis

Most users recover their investment within 2-4 years through fuel and maintenance savings alone.

Conclusion

The DCHF series solar centrifugal water pump is the ideal solution for any surface water pumping application—from small garden irrigation to large-scale farm watering. Its pure DC design, brushless motor, integrated MPPT controller, and robust protection features make it a reliable, cost-effective, and truly maintenance-free alternative to grid-powered or diesel pumps.

With models ranging from 550W to 1500W and flow rates from 5 to 50 m³/h, there's a DCHF pump for virtually every irrigation need. Paired with the right solar array, it will deliver water day after day, sunshine after sunshine, with zero fuel cost and minimal environmental impact.
