Solar Centrifugal Water Pumps for Farming Irrigation

TECHNICAL DATA OF SOLO DC INPUT SOLAR CENTRIFUGAL WATER PUMP

Find a huge selection of Solar Centrifugal Water Pumps for Farming Irrigation from China at LEAD PUMP. Provide professional after-sales service and the right price, looking forward to cooperation.

ITEM	Voltage (V)	Best input  Voltage(DC)	Power (w)	Max. Flow (m³/h)	Max.Head (m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
DCHF5-30-48-550	48	48-72V	550	5	30	1”×1”	＜100V	36	350	2
DCHF15-10-48-550	48	48-72V	550	15	10	1.5”×1.5”	＜100V	36	350	2
DCHF25-18-72-750	72	72-108V	750	25	18	2”×2”	＜150V	36	350	3
DCHF25-24-96-1100	96	96-108V	1100	25	24	2”×2”	＜150V	36	300	6
DCHF50-17-108-1500	108	108-144V	1500	50	17	3”×3”	＜200V	36	300	8

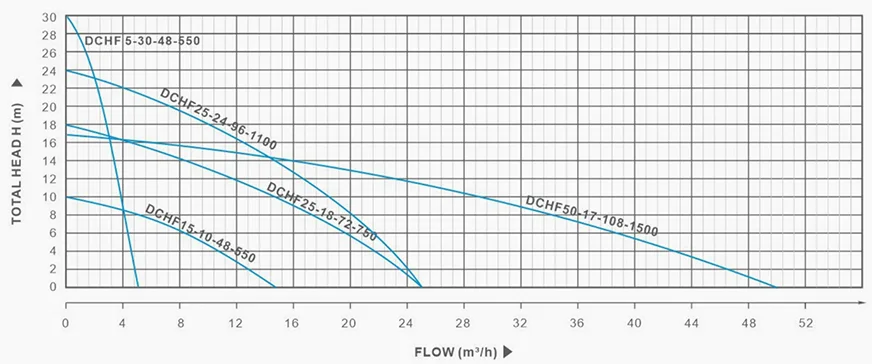

PEPFORMANCE CURVES

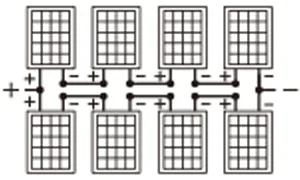

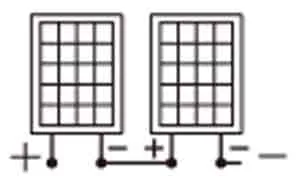

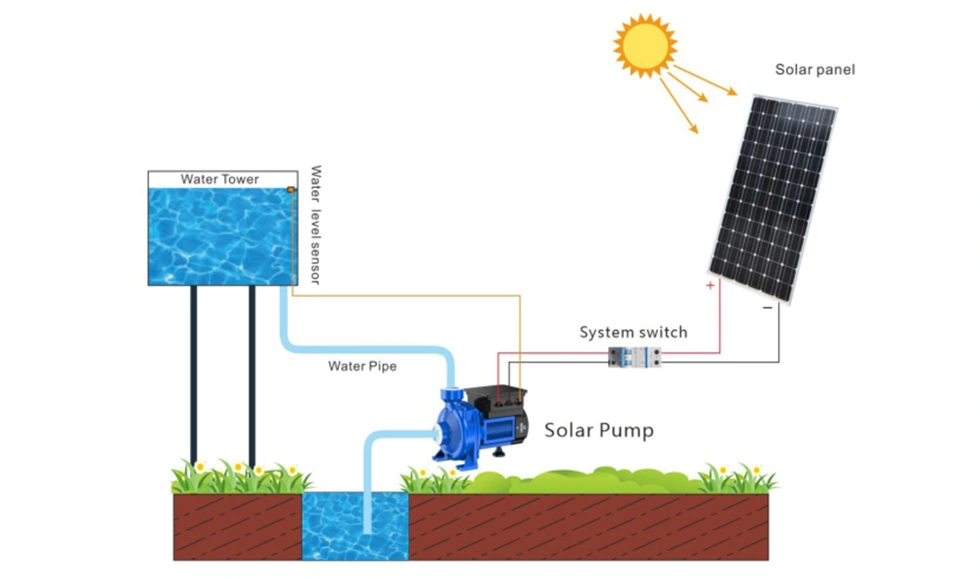

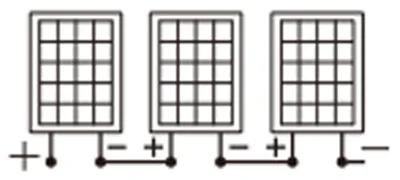

WIRING & APPLICATION OF DC PV CENTRIFUGAL SURFACE PUMP :

The solar centrifugal pump is designed for pond management, farm irrigation, garden water transfer, domestic water supply, and tower water supply.

FEATURES OF DCHF SERIES SOLAR CENTRIFUGAL WATER PUMP:

Power input type : Solo Direct Current.

Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.
Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.
The wiring between solar pump and controller is finished by manufacturer before go to market. The controller and pump is not seperatable. A system switch is equied to control the ON/OFF of the pumpping system.

FUNCTION OF LEAD PUMP SOLAR SURFACE PUMP

MPPT.
Thermal protection.
Anti-dry run protection.
Anti-block protection.
Voltage & Current & Power protection.

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

New designed solar powered centrifugal pump - 1 piece.
Accessary kits - 1 set
User's manual - 1 piece


ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP

SERVICES FOR OEM CUSTOMERS

Manage your own brand for solar pump business? Supported. Please provide company registered certificates.
Customized packing? Ordered quantity of solar water pumps >=100, Supported.
Choose an unique color only for your brand? Ordered quantity of solar peripheral pump & centrifugal pump & JET pump >=100 pieces, Supported. Order quantity of swimming pool pump series >=300pcs, Supported.
Payment methods & Terms: Negotiation.
Trade terms: Choosing a way which is convinent for buyer.
