DC Peripheral Solar Pump

TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

LEAD PUMP is the professional DC Peripheral Solar Pump manufacturer and supplier in China. You can buy DC Peripheral Solar Pump from our factory with confidence.

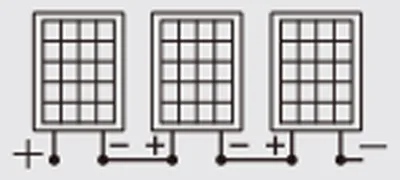

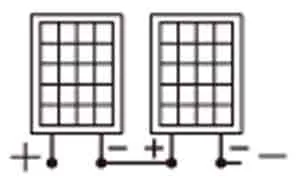

ITEM	Voltage (V)	Best input Voltage(DC)	Power (w)	Max. Flow (m³/h)	Max.Head (m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
DCQB2.8-28-24-240	24	24-36V	240	2.8	28	1”×1”	＜50V	36	350	1
DCQB3-35-36-400	36	36-48V	400	3	36	1”×1”	＜50V	36	300	2
DCQB3.3-50-48-550	48	48-72V	550	3.3	50	1”×1”	＜100V	36	350	2
DCQB3.3-70-72-750	72	72-108V	750	3.3	70	1”×1”	＜150V	36	350	3

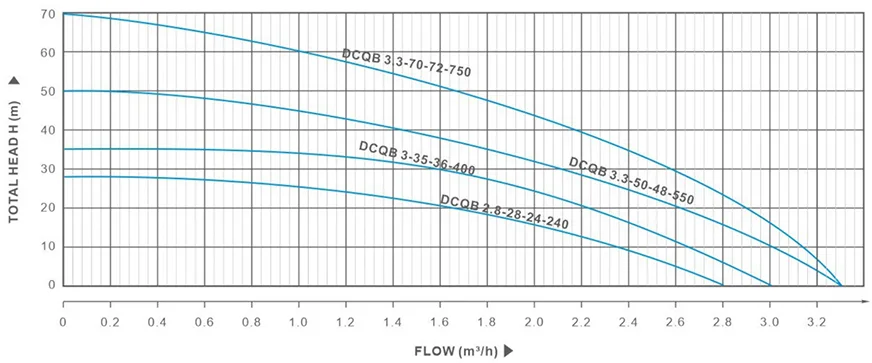

PEPFORMANCE CURVES

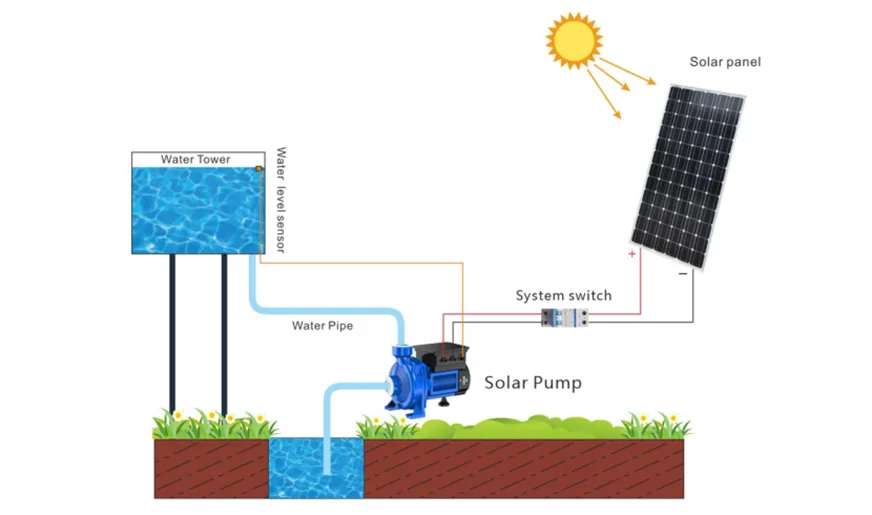

WIRING & APPLICATION OF DC PV PERIPHERAL SURFACE PUMP :

FEATURES OF DCQB SOLAR PERIPHERAL PUMP:

1.Power input type : Solo Direct Current.
2.Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.
3.Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.
4.The wiring between solar pump and controller is finished by manufacturer before go to market. The controller and pump is not seperatable. A system switch is equied to control the ON/OFF of the pumpping system.


FUNCTION OF LEAD PUMP SOLAR SURFACE PUMP

MPPT.
Thermal protection.
Anti-dry run protection.
Anti-block protection.
Voltage & Current & Power protection.

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

1.New designed solar powered peripheral pump - 1 piece.
2.Accessary kits - 1 set
3.User's manual - 1 piece

ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP

SERVICES FOR OEM CUSTOMERS

1.Manage your own brand for solar pump business? Supported. Please provide company registered certificates.
2.Customized packing? Ordered quantity of solar water pumps >=100, Supported.
3.Choose an unique color only for your brand? Ordered quantity of solar peripheral pump & centrifugal pump & JET pump >=100 pieces, Supported. Order quantity of swimming pool pump series >=300pcs, Supported.
4.Payment methods & Terms: Negotiation.
5.Trade terms: Choosing a way which is convinent for buyer.
