DC JET Solar Booster Water Pump for Garden Watering

TECHNICAL DATA OF SOLO DC INPUT SOLAR JET PUMP

LEAD PUMP as a professional high quality DC JET Solar Booster Water Pump for Garden Watering manufacturer, you can rest assured to buy DC JET Solar Booster Water Pump for Garden Watering from our factory and we will offer you the best after-sale service and timely delivery.

ITEM	Voltage (V)	Best input Voltage(DC)	Power (w)	Max. Flow (m³/h)	Max.Head (m)	Outlet(in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
DCTP3-35-36-400	36	36-48V	400	2.8	35	1”×1”	＜50V	36	300	2
DCTP4-40-48-550	48	48-72V	550	4	40	1”×1”	＜50V	36	350	2
DCTP4-55-72-750	72	72-108V	750	4	55	1”×1”	＜150V	36	350	3

PEPFORMANCE CURVES

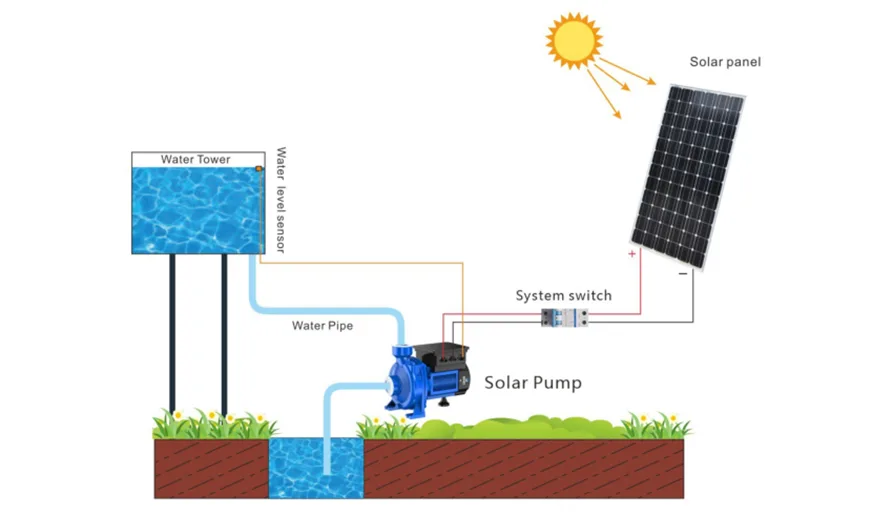

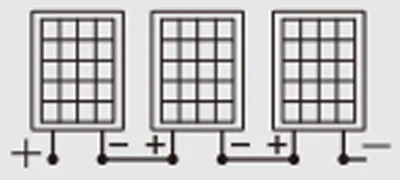

WIRING & APPLICATION OF DC JET PRESSURE PUMP :

It can pump water with salt and chemicles (acidic or alkaline) since the pump head is made of stainless steel. Suction is 9 meter.

FEATURES OF DCTP SOLAR JET PUMP:

Power input type : Solo Direct Current.
Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.
Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.
The wiring between solar pump and controller is finished by manufacturer before go to market. The controller and pump is not seperatable. A system switch is equied to control the ON/OFF of the pumpping system.

FUNCTION OF LEAD PUMP SOLAR SURFACE PUMP

MPPT.
Thermal protection.
Anti-dry run protection.
Anti-block protection.
Voltage & Current & Power protection.
PACKAGE OF SOLAR DC POWERED BOOSTER PUMP:
New designed solar powered jet pressure pump - 1 piece.
Accessary kits - 1 set
User's manual - 1 piece

ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP
