DCLP Solar Pool Pump for Circulation

TECHNICAL DATA OF SOLO DC INPUT SOLAR SWIMMING POOL PUMP

High quality DCLP Solar Pool Pump for Circulation is offered by China manufacturer LEAD PUMP. Buy DCLP Solar Pool Pump for Circulation which is of high quality directly with low price.

ITEM	Voltage (V)	Best input Voltage(DC)	Power (w)	Max. Flow (m³/h)	Max.Head (m)	Outlet (in)	Open circuit voltage(VOC)	Solar Panels Suggestion
								Voltage (V)	Power (w)	Quantity (pcs)	Connection
DCLP22-14-48-500	48	48-72V	500	22	14	G1-1/2" / G2"	＜100V	36	350	2
DCLP25-16-72-750	72	72-108V	750	25	16	G1-1/2" / G2"	＜150V	36	350	3
DCLP28-18-96-1100	96	96-108V	1100	28	18	G1-1/2" / G2"	＜150V	36	300	6
DCLP28-22-108-1500	108	108-144V	1500	28	22	G1-1/2" / G2"	＜200V	36	300	8

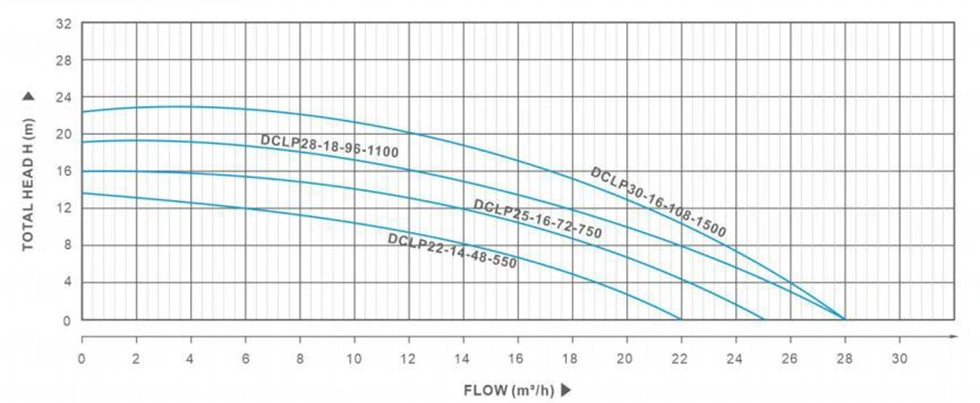

PEPFORMANCE CURVES

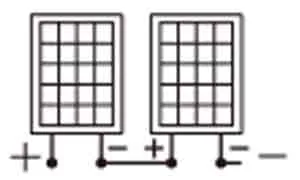

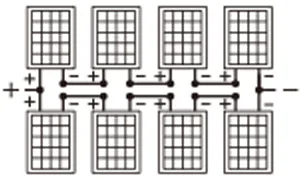

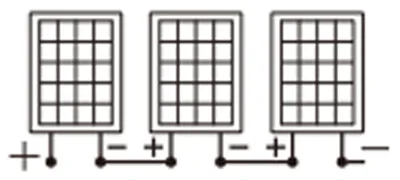

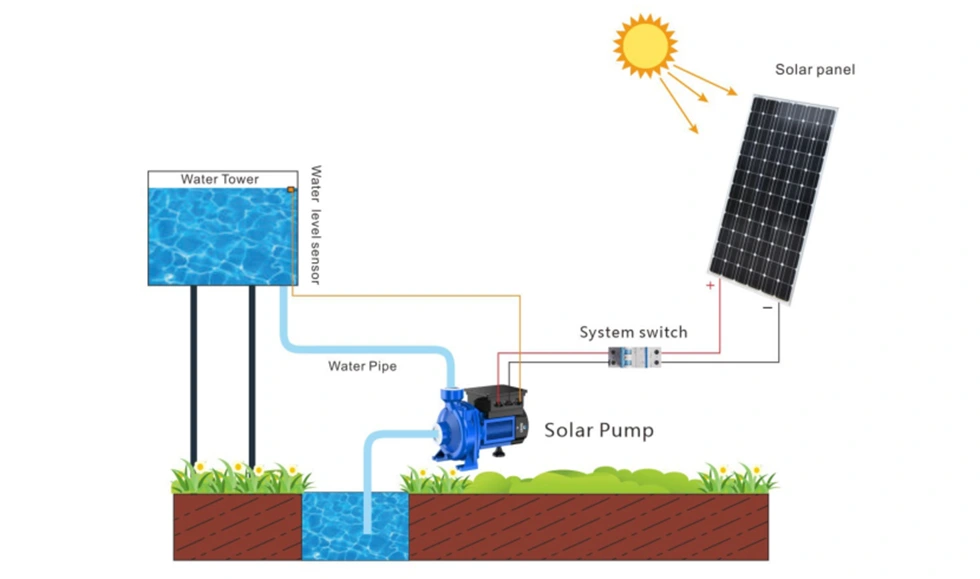

WIRING & APPLICATION OF DC PV PERIPHERAL SURFACE PUMP :

FEATURES OF DCLP SOLAR POOL CIRCULATION PUMP:

Power input type : Solo Direct Current.
Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.
Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.
The wiring between solar pump and controller is finished by manufacturer before go to market. The controller and pump is not seperatable. A system switch is equied to control the ON/OFF of the pumpping system.
The pump should be installed in an enclosed environment or sheltered places.
For water circulation in swimming pool filtration system.
For clean and slightdirty water with solids in suspension.
For pumpping sea water.


WORKING ENVIROMENT:

Fluid temperature: 0 - (+)60 °C
Working temperature: (-)15°C - (+)60°C
IP: IP54
ICL:B
Powered by solar or DC power.


FUNNCTION OF LEAD PUMP SOLAR SURFACE PUMP

MPPT.
Thermal protection.
Anti-dry run protection.
Anti-block protection.
Voltage & Current & Power protection.


PACKAGE OF SOLAR DC POWERED SWIMMING POOL PUMP:

New designed solar powered peripheral pump - 1 piece.
Accessary kits - 1 set
User's manual - 1 piece


ACCESSARY KITS FOR DC QB PERIPHERAL SERIES SOLAR SURFACE PUMP

SERVICES FOR OEM CUSTOMERS

Manage your own brand for solar pump business? Supported. Please provide company registered certificates.
Customized packing? Ordered quantity of solar water pumps >=100, Supported.
Choose an unique color only for your brand? Ordered quantity of solar peripheral pump & centrifugal pump & JET pump >=100 pieces, Supported. Order quantity of swimming pool pump series >=300pcs, Supported.
Payment methods & Terms: Negotiation.
Trade terms: Choosing a way which is convinent for buyer.
