Brushless Motor Pump Solar Powered for Fountain

LEAD PUMP is a proficient manufacturer and supplier of Brushless Motor Pump Solar Powered for Fountain in China. If you're searching for the Brushless Motor Pump Solar Powered for Fountain at an affordable price, get in touch with us right away!

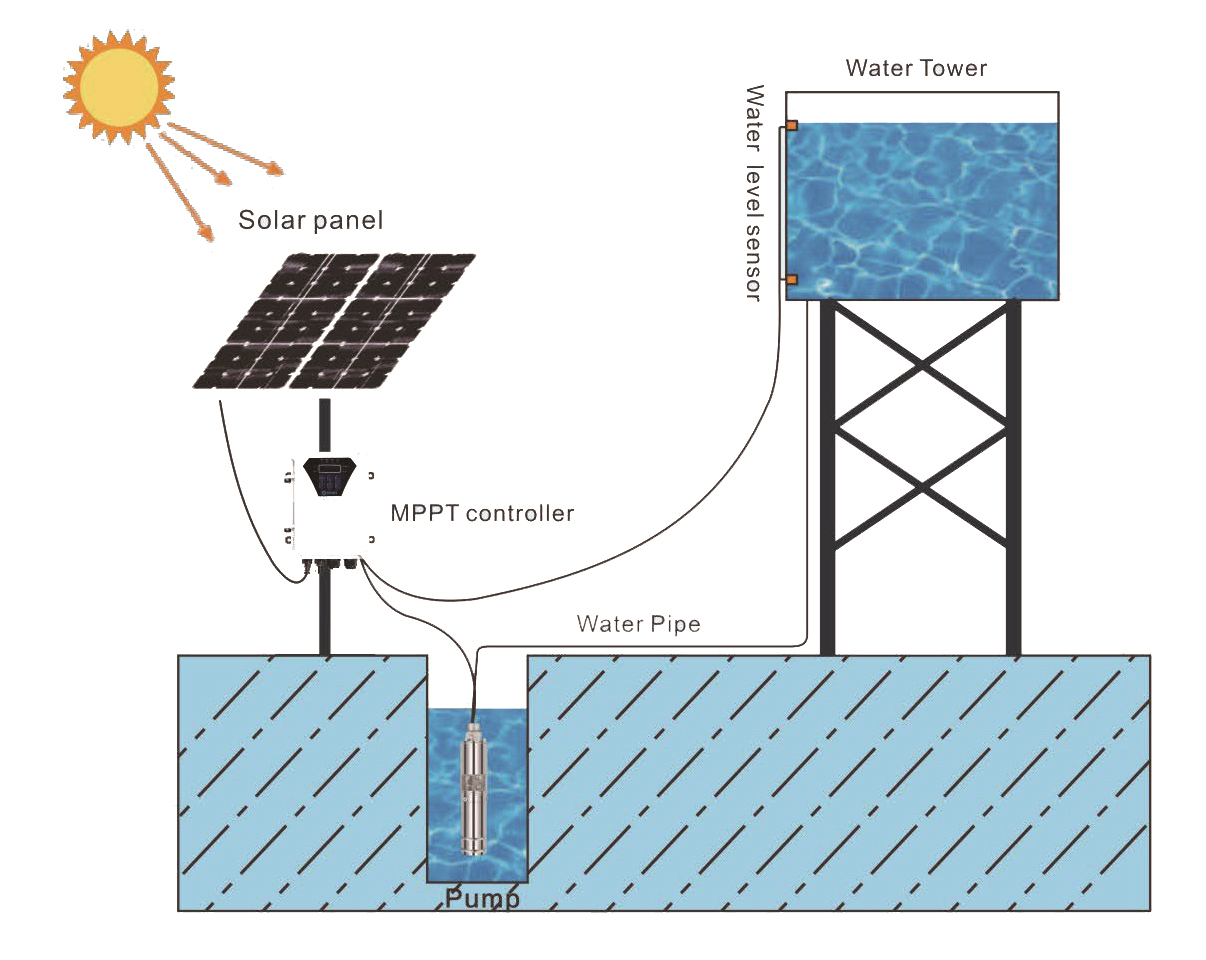

DC powered submersible deep well pumps main components include stainless steel impeller, solar panel, drive motor, controller and pump body. Solar panels convert sunlight into electrical energy, which drives a motor through a controller that converts electrical energy into mechanical energy, which in turn drives the water pump.

Such pumps are used in remote areas of rural areas or where there is no electricity supply to provide people with water for domestic irrigation.

Product Description:

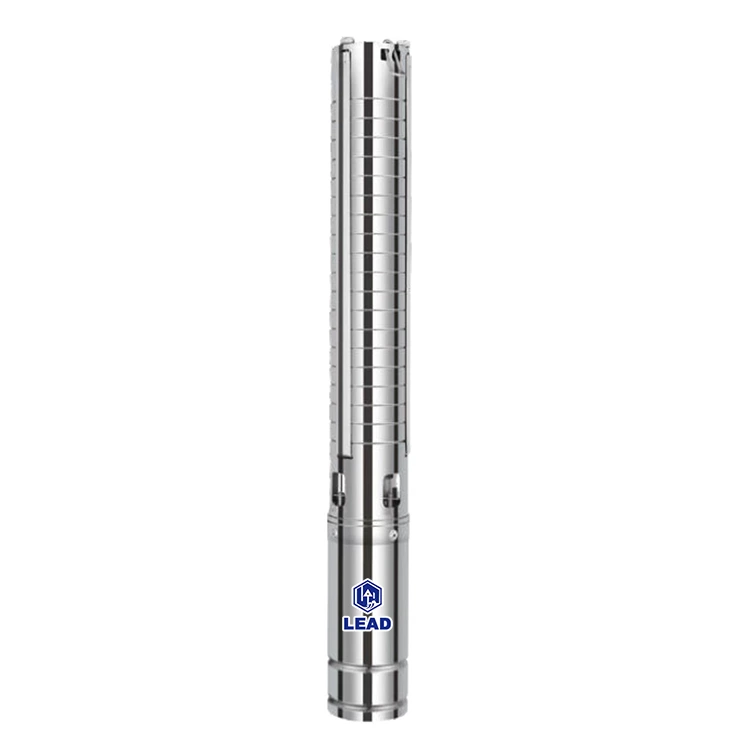

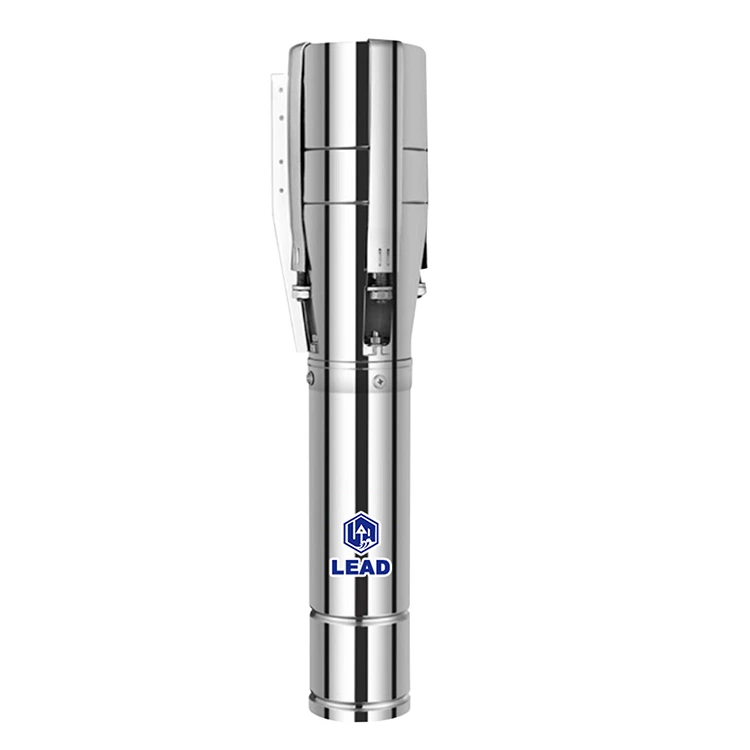

Lead Pump deep well solar pumps use maintenance free DC brushless permanent magnet motor, high efficiency, better dynamic performance and longer life than conventional motor. The motor housing and propeller is made from stainless steel, stainless steel finish is high, with good gloss. It appearance is modern and easy to clean, meanwhile, the stainless steel material has excellent mechanical properties and high corrosion resistance.

The deep well pump has a series of excellent performance parameters. Its flow range is wide and can be selected according to specific needs, the max flow range from 5m3 to 55 m3. At the same time, the deep well pump has a high head range and can easily pump water out of the deep well and transport it to the designated location, the max head could reach 265 m. In addition, the pump has a variety of power options to adapt to different environments and application, the power range in this 4 inch DC stainless steel impeller pump is 0.75hp, 1hp, 1.5hp, 1.7hp and 2hp.

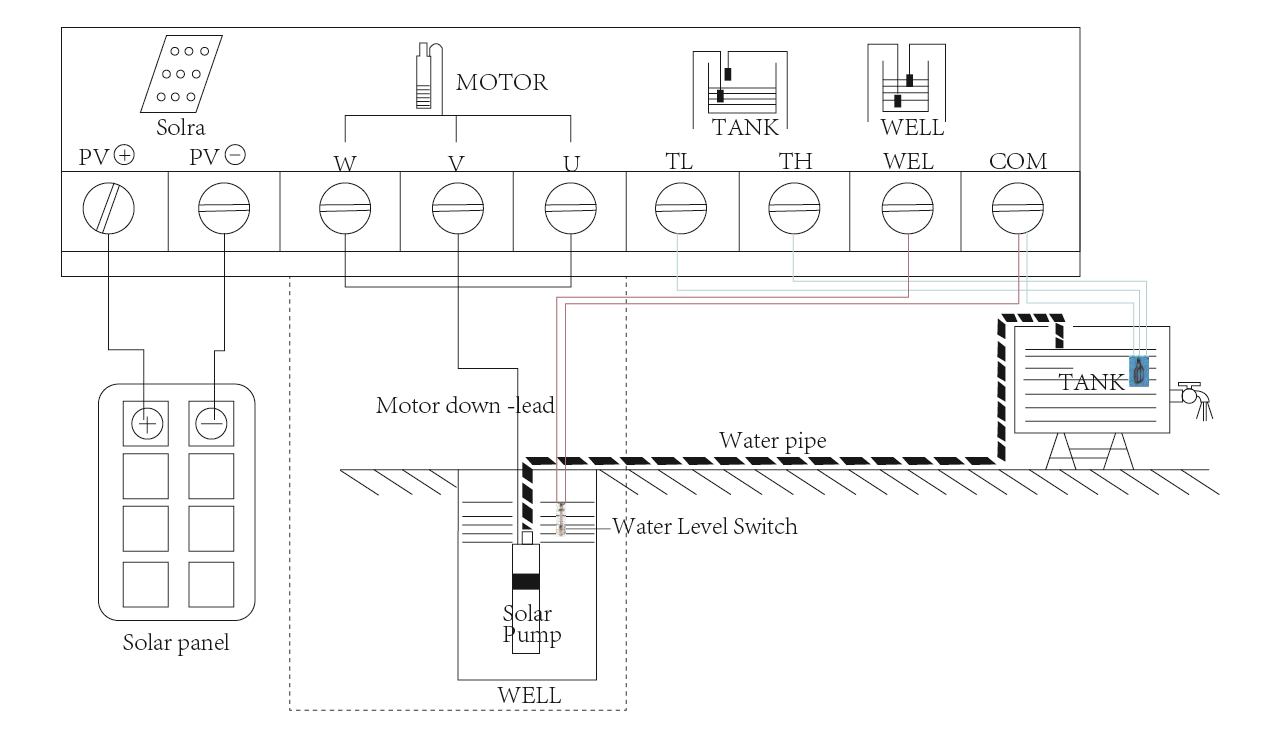

Wiring Direction:

The DC brushless solar screw is only powered by direct current, directly from solar panels or with a battery as transit. Float switch could be installed in water tanks or in well to automatically control the Start and Stop of pump.

Product Parameter:

ITEM		Voltage (V)	Best input  Voltage(DC	Power  (w)	Max. Flow  (m³/h)	Max.Head  (m)	Outlet  (in)	Open circuit  voltage(VOC	Solar Panels Suggestion
									Voltage (V)	Power (w)	Quantity (pcs)	Connection
1	4DSP5.5-50-48-500	48	60-90v	500	5.5	50	1.25"	<100v	36	250	4
2	4DSP5.5-65-48-750	48	60-90v	750	5.5	65	1.25"	<100v	36	250	4
3	4DSP5.5-75-72-750	72	90-120v	750	5.5	75	1.25"	<150v	36	330	3
4	4DSP5.5-110-72-1100	72	90-120v	1100	5.5	110	1.25"	<150v	36	250	6
5	4DSP7.5-60-72-750	72	90-120v	750	7.5	60	1.25"	<150v	36	330	3
6	4/6DSP30-19-72-1100	72	90-120v	1100	30	19	3"	<150v	36	250	6
7	4DSP5.5-85-110-750	110	120-150v	750	5.5	85	1.25"	<200v	36	250	4
8	4DSP5.5-125-110-1100	110	120-150v	1100	5.5	125	1.25"	<200v	36	250	8
9	4DSP5.5-165-110-1300	110	120-150v	1300	5.5	165	1.25"	<200v	36	250	8
10	4DSP5-205-110-1500	110	120-150v	1500	5	205	1.25"	<200v	36	250	8
11	4DSP7-95-110-1100	110	120-150v	1100	7	95	1.25"	<200v	36	250	8
12	4DSP7-120-110-1300	110	120-150v	1300	7	120	1.25"	<200v	36	250	8
13	4DSP11-38-110-750	110	120-150v	750	11	38	1.5"	<200v	36	250	4
14	4DSP11-68-110-1300	110	120-150v	1300	11	68	1.5"	<200v	36	250	8
15	4DSP11-90-110-1500	110	120-150v	1500	11	90	1.5"	<200v	36	300	8
16	4DSP19-40-110-1300	110	120-150v	1300	19	40	2"	<200v	36	250	8
17	4DSP22-30-110-1100	110	120-150v	1100	22	30	2”	<200v	36	250	8
18	4DSP22-45-110-1300	110	120-150v	1300	22	45	2"	<200v	36	250	8
19	4/6DSP36-22-110-1500	110	120-150v	1500	36	22	3"	<200v	36	250	8
20	4DSP5.5-140-150-1100	150	150-430v	1100	5.5	140	1.25"	<430v	36	250	6
21	4DSP5.5-188-150-1300	150	150-430v	1300	5.5	188	1.25"	<430v	36	300	6
22	4DSP7.5-106-150-1300	150	150-430v	1300	7.5	106	1.25"	<430v	36	300	6
23	4/6DSP36-22-150-1100	150	150-430v	1100	36	22	3"	<430v	36	300	6
24	4DSP5-238-200-1500	200	200-430v	1500	5	238	1.25"	<430v	36	340	6
25	4DSP7.5-132-200-1500	200	200-430v	1500	7.5	132	1.25"	<430v	36	340	6
26	4DSP11-75-200-1500	200	200-430v	1500	11	75	1.5"	<430v	36	340	6
27	4DSP20-45-200-1500	200	200-430v	1500	20	45	2"	<430v	36	340	6
28	4DSP25-32-200-1500	200	200-430v	1500	25	32	2"	<430v	36	340	6
29	4/6DSP37-25-200-1500	200	200-430v	1500	37	25	3"	<430v	36	340	6
30	4DSP5-265-300-2200	300	300-430v	2200	5	265	1.25"	<430v	36	300	10
31	4DSP7.5-168-300-2200	300	300-430v	2200	7.5	168	1.25"	<430v	36	300	10
32	4DSP11-130-300-2200	300	300-430v	2200	11	130	1.5"	<430v	36	300	10
33	4DSP20-76-300-2200	300	300-430v	2200	20	76	2"	<430v	36	300	10
34	4DSP25-60-300-2200	300	300-430v	2200	25	60	2"	<430v	36	300	10
35	4/6DSP36-38-300-2200	300	300-430v	2200	36	38	3"	<430v	36	300	10
36	4/6DSP55-18-300-2200	300	300-430v	2200	55	18	3"	<430v	36	300	10

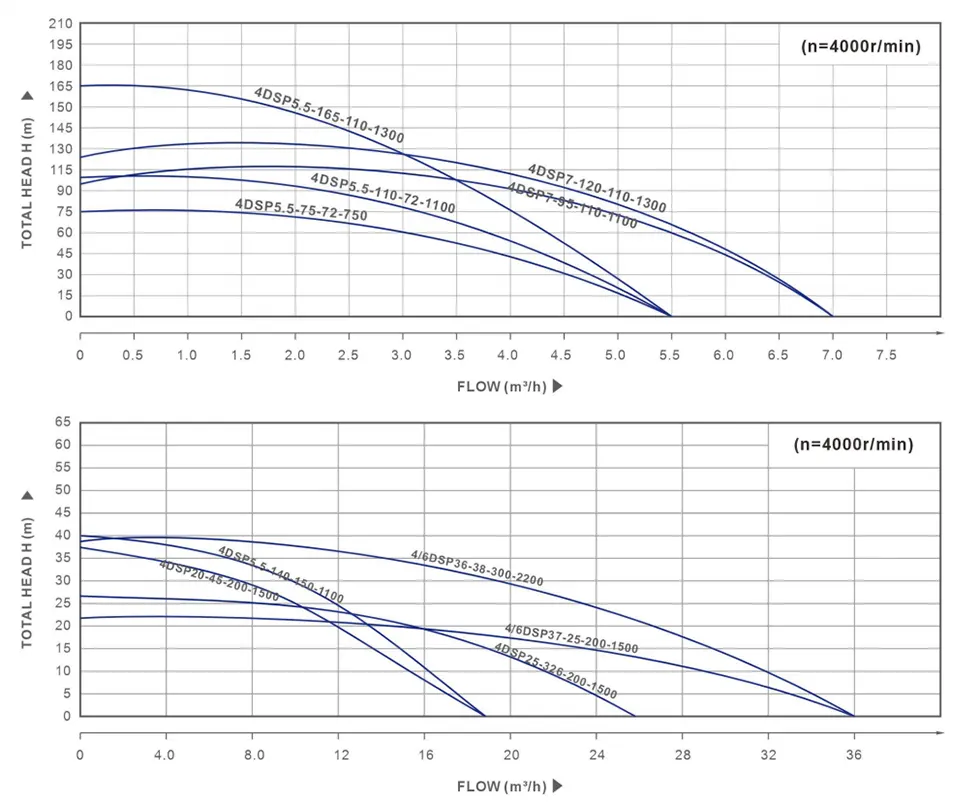

PERFORMANCE CURVES

How to Maintain 4 Inch Solar Deep Well Pump?

In order to insure the stable operation and extend the service life of the 4 inch solar deep, regular maintenance and maintenance are required. This includes checking the cleanliness and integrity of solar panels, checking the operating status of electronic controllers, and regularly replacing worn parts. In addition, attention should be paid to the installation location and environmental conditions of the deep well pump to insure that it can operate in a good working environment.

FAQ:

Q1: Can you recommend a pump suitable for rural use?

A1: Sure, pumps suitable for rural use have the following recommendations:

Stainless steel submersible pump:

Solid structure, pure copper wire motor, high stability;

With self-priming ability, continuous and even flow, small vibration and low noise;

Stainless steel body, strong corrosion resistance;

Stainless steel screw submersible pump:

High quality stainless steel pressure chamber, acid and alkali resistance, corrosion resistance;

All copper core wire, double layer rubber package, conductive safety and strong;

High precision leak-proof, mechanical seal;

Q2: How to choose the right pump?

A2: The following factors should be considered when selecting a water pump:

Lift: The pump lift is about 1.15 to 1.20 times the height of the water lift.

Water yield: Depending on the use scenario, domestic or agricultural irrigation needs are different.

Safety: Such as automatic control, under-voltage protection, earth leakage protection,etc.

Q3: Can the solar water pump work on cloudy or foggy days?

A3: In general, customers will get more water than they think when they pump on cloudy or foggy days.

FUNCTION OF LEAD PUMP 4 /6 INCH SOLAR SUBMERSIBLE WATER PUMPS

• Maintenance-Free Brushless DC Motor
• Integrated DSP&MPPT( Maximun Power Point remote control etc.)
• Suitable for Wide DC voltage Operation
• Control inputs for well probe, dry running protection

• Battery Operation,low voltage disconnect for battery tracking)
• Overload and high Adjustable speed control of motor
• Temperature Protection and against reverse polarity

APPLICATION

• lrrigation in horticulture & agriculture
• Livestok Watering
• Gardens or fountains
• Domestic water supply
• Pond management
• Small scale service industries

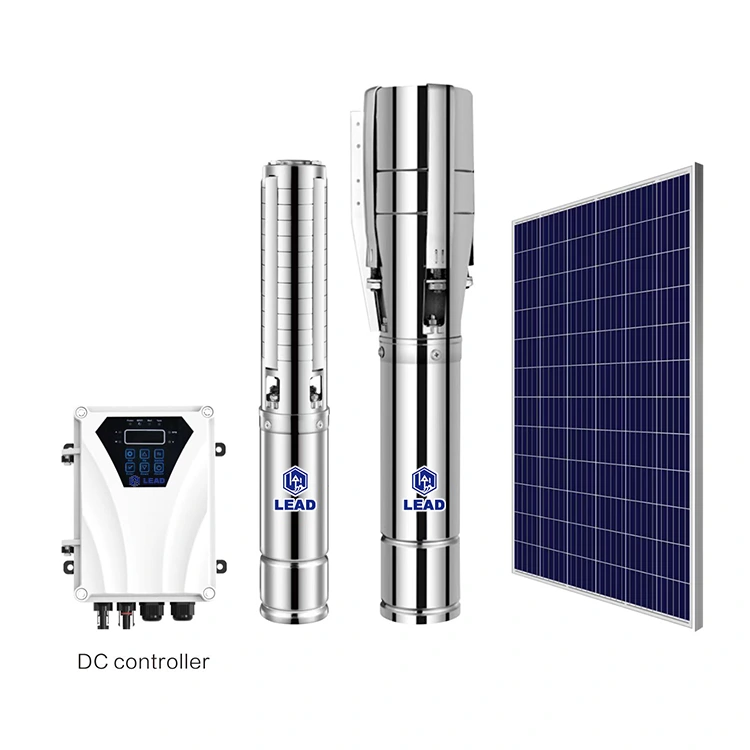

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

Solar powered screw pump - 1 piece.

Accessary kits - 1 set

DC Controller - 1 piece

User's manual - 1 piece

ACCESSARY KITS FOR DC SOLAR SUBMERSIBLE WATER PUMP
