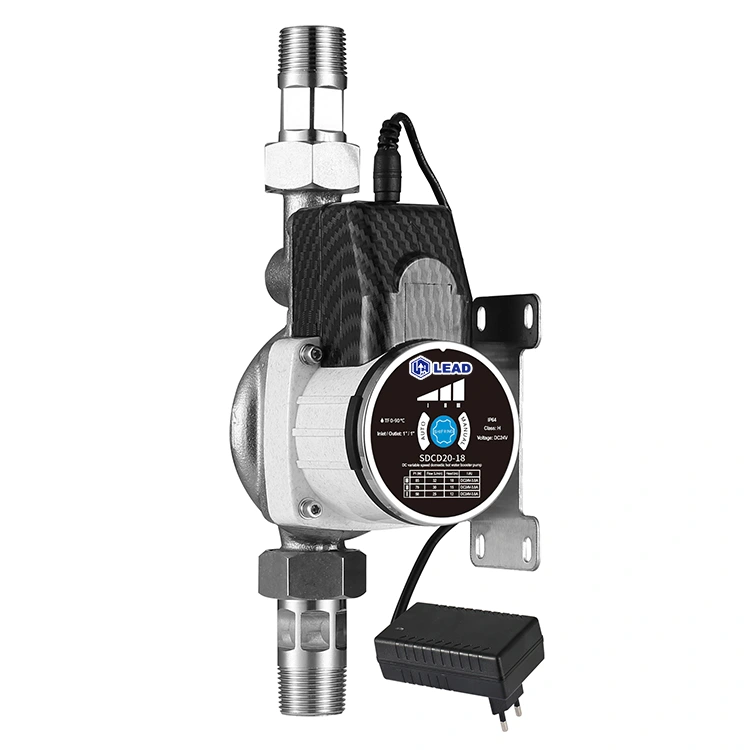

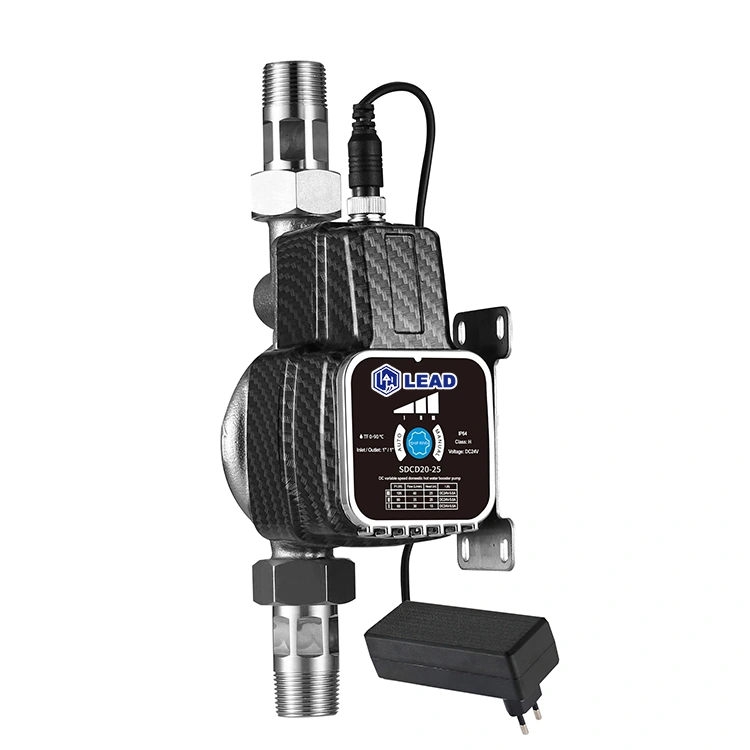

Frequency Water Heater Pressure Booster Pump

it is an innovative and quality water booster pump for water heater, for shower and for domestic boiler booster with characteristics of being silent operating, eco-friendly and cheap price.

General Introduction

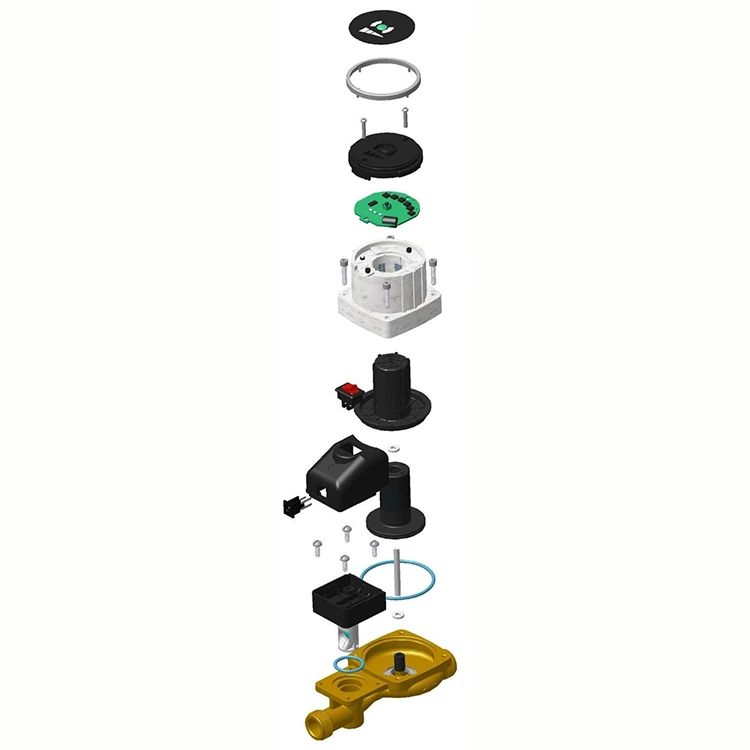

An adapter inverts AC to DC, driven by a PCB board, and impeller rotates to pump water from inlet to outlet, that is how automatic booster pump for home works.

This is is an Intelligent frequency conversion and eco-friendly water pump.  It takes high speed permanent magnet frequency conversion brushless motor. It can save 60% electricity than traditional booster pumps.

It operate stably and effectively, work silent. The pump was applied water cooled sliding bearing structure. The noise is less than 40dB.

Muti speed and double mode is available. There is manual mode and automatic mode, users are able to choose which mode is suitable by real. And there are 3 gear speed programme with the pump, which provides model-chosen solutions for users.

This water pressure pump for shower operates under DC24V or DC36V, which prevent electricity shock issues, especially when the pump is installed at a humid environment.

Performance Parameter

PERFORMANCE CURVE AT N=4000 RPM

Operation Conditions

Input voltage: AC 160V- 240V

Working Voltage: DC 24V / 36V

Input Frequency: 50-60HZ

IP64

ICL: F (155℃)

Liquid temperature: 0-90℃

Max ambient temperature: 0-40℃

Application situations

The automatic booster pump is an ideal water booster choice for household water heater pressurization, faucet pressurization, water shower pressurization, water supply  for domestic boiler pressurization and smart toilet pressurization and etc.

Package

1 set includes:

1 * power adapter

1 * water pressure pump

1 * installation manual

1 * user’s manual

1 * installation screw kit

2 * stainless steel adapter connector

OPERATING CONDITIONS

1. Power input: 24V / 36V DC adapter, the maximum pressure of the booster system should be no more than 5bar for the pump motor input current;

2. Ambient temperature: 0~40°C;

3. Liquid temperature; 0~90°C;

4. Medium: the medium should be liquid and it should be clean, thin, non-corrosive, non-flammable, explosive, and free of solid particles, and whose properties are similar to Glean water.

ADVANTAGES

1. Intelligent frequency conversion and energy saving: pump takes high-speed permanent magnet frequency conversion Brushless motor.  It can save energy more than 60% than normal booster pump. It operates stably and effectively.

2. Work silent. Pump is taken internal water-cooled sliding bearing structure. The noise made by it is less than 40 dB;

3. Multi-speed available (flow switch) : There are multiple gears for users to choose. Users can choose which gear according to own needs.

4. Wide voltage use: 160-240V wide voltage use without obstacles to ensure stable performance;

5. Safe. The pump is powered by Low-voltage which is less than 36V. Safe and reliable.
