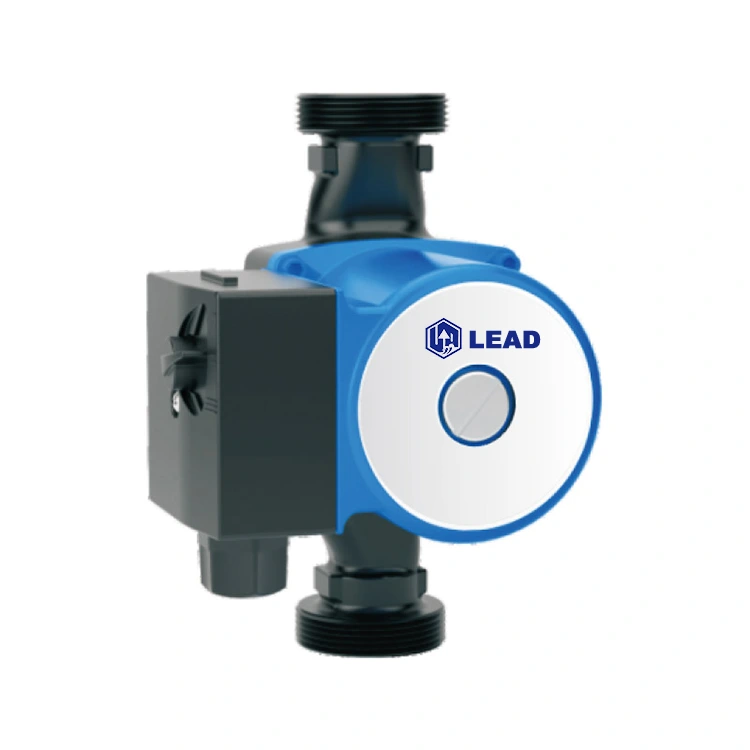

SR B Heating Circulation Pump

CHARACTERISTICS

As one of professional high quality SR B Heating Circulation Pump manufacturer, you can rest assured to buy SR B Heating Circulation Pump from LEAD PUMP and we will offer you the best after-sale service and timely delivery.

The water pump structure adopts stainless steel sleeve to completely separate the iron core inside of engine from water and it deselects the traditional mechanical seal structure so that the conventional water seal leakage problem has been thoroughly resolved; the structure adopts ceramic bearing and ceramic or stainless steel spindle, which is wear-resisting, corrosion-resisting, and lubricated by water naturally with lose noise; the total pump head operating voltage will not be overloaded and if it is applied appropriately, the service life should be long; high-temperature choice materials are adopted for all components inside of engine, which is applicable for hot-water circulation pressurization system; the pump can be equpped with water contro automatic switch, which is convenient for usage; the pump line box is designed with three-position speed adjustment switch so that the user can regulate speed in accordance with different environments and requirements.

PRODUCT USE

The pump is applicable for cold/hot water circulation and pressurization; particularly, the shower set might lead to fire because of low or unstable water pressure and installation & application of this pump can easily totally solve the problem; in addition, it is also applicable for pressurization water supple of the household low water pressure, water supply of solar water heater, hot-water circulation of boiler, and circulation pressurization of air conditioner & refrigerating system.

WORKING CONDITIONS

• Pumped medium temperature scope: 0°C~+90°C
• Maximum application environment temperature: +40°C
• Medium requirement: clean without sundries, mineral oil, stickiness, and corrosiveness;Chemical property: the property is closed to neutral without explosiveness and it is like liquid of water (the content of ethylene glycol is up to 30%)
• It is necessary to consult the manufacturer first if other liquids are extracted
• Maximum operating pressure: 5 bar Minimum inlet pressure:When the temperature is +50C 0.05bar.
• When the temperature is +70C 0.3bar
• When the temperature is +90C 0.1 bar
• The above-mentioned values are only applicable for elevation of 300m; as tor the higher elevation, 0.01 bar should be added for every 1 00m increased.
• To prevent noise generated by cavitation erosion, the minimuminlet pressure should be maintained.The pump should be operated between 10% of the rating voltage; if the voltage is too low, the pump will be overloaded, which will lead to temperature increase of engine and decrease of pump head & pressure curve.

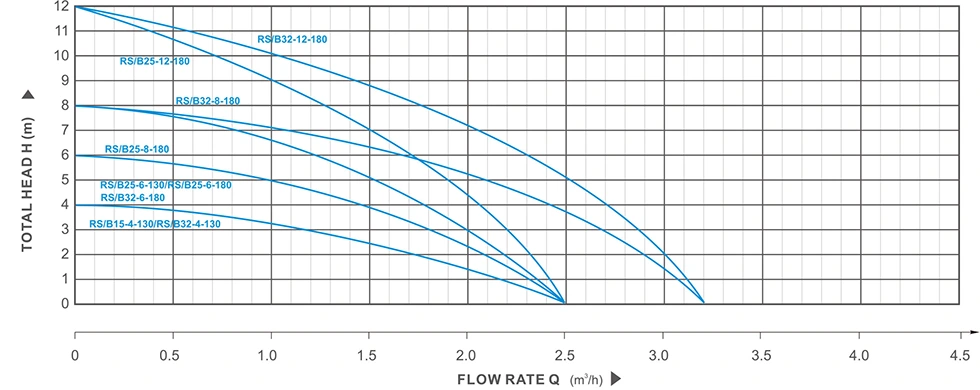

PERFORMANCE DATA AT n=2900 rpm/min

Performance parameter
