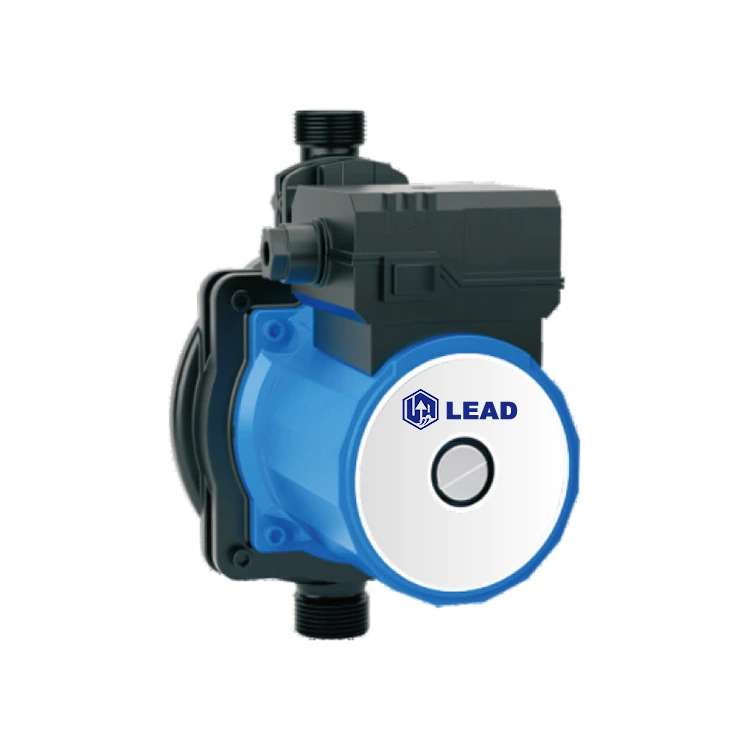

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality SR W Auto Heating Circulator Boosting Pump, LEAD PUMP looks forward to cooperating with you.
The pump is applicable for cold/hot water circulation and pressurization; particularly, the shower set might lead to fire because of low or unstable water pressure and installation &application of this pump can easily totally solve the problem; in addition, it is also applicable for pressurization water supple of the household low water pressure, water supply of solar water heater, hot-water circulation of boiler, and circulation pressurization of air conditioner &refrigerating system.
• Pumped medium temperature scope: 0°C~+90°C
• Maximum application environment temperature: +40°C
• Medium requirement: clean without sundries, mineral oil, stickiness, and corrosiveness;
• Chemical property: the property is closed to neutral without explosiveness and it is like liquid of water (the content of ethylene glycol is upto 30%)
• It is necessary to consult the man ufactu rer first if other liquids are extracted
• Maximum operating pressure: 5 bar
|

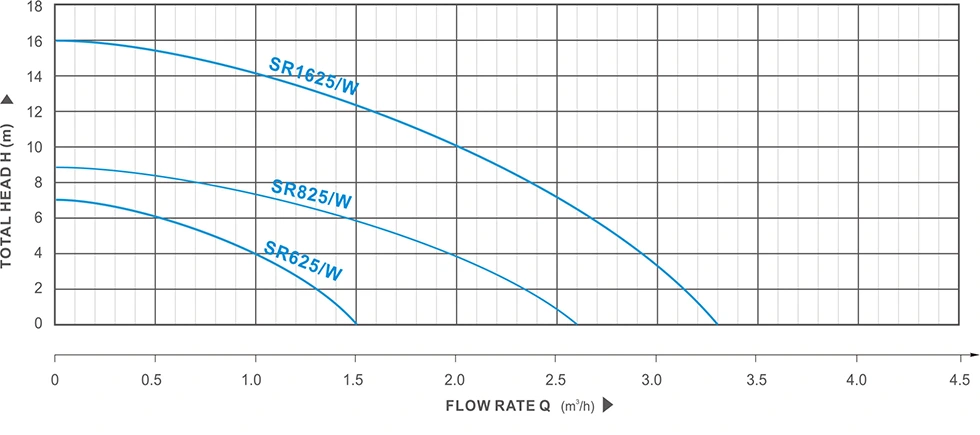

Model |
InleVOutlet |
Power |
Max.Flow |
Max.Head |
|
|
Single phase |
Inch |
KW |
HP |
m3/h |
m |
|
SR625/W |
VkI" |
0.15 |
0.2 |
1.5 |
7 |
|
SR825/W |
VkI" |
0.25 |
0.33 |
2.6 |
9 |
|
SR1625/W |
1"x1" |
0.3 |
0.4 |
3.3 |
16 |
